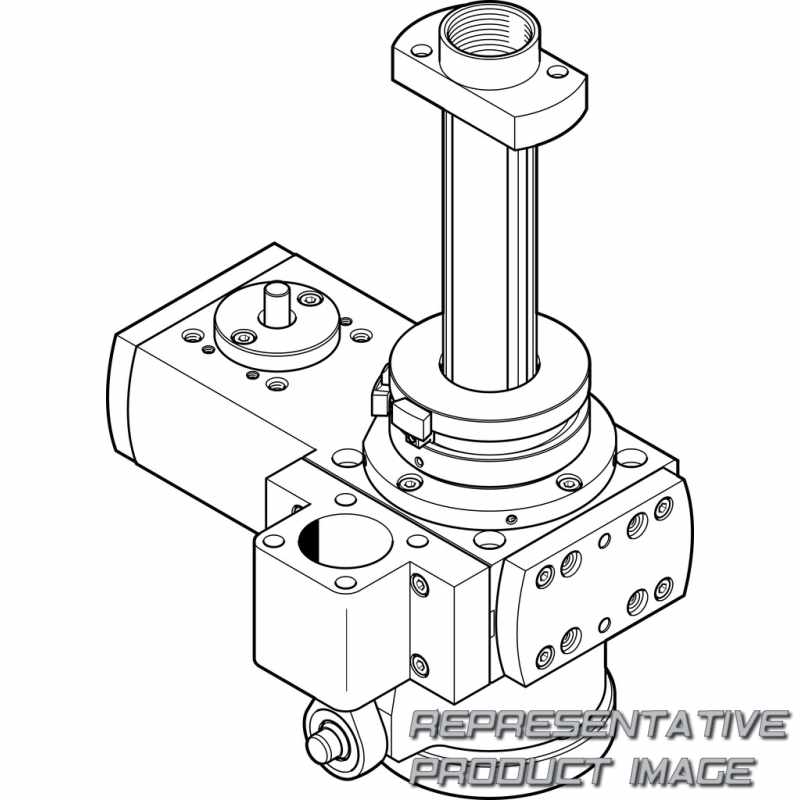

FESTO 1095933 rotary lifting module

Name: 1095933 FESTO
Brand: FESTO
SKU: 675578-en-gbp
Price: 4083.66 GBP
Availability: SoldOut

EHMB-25-100

£4,083.66

Limited stock only available on quotation

Specifications

Series (EHMB)	Rotary/lifting module
Size (25)	25

Stroke [mm] (100)	100

Material toothed belt		Polychloroprene with glass fibre
Material cover		Wrought aluminium alloy Anodised
Note on materials		Contains paint-wetting impairment substances RoHS-compliant
Frictional torque independent of load		< 0,18 Nm
Max. drive torque		2,2 Nm
Max. drive input speed		1.200 rpm
Gear unit ratio		4:1
Type of gear unit		Toothed belt gear unit
Toothed-belt pitch		3 mm
Size		25
Drive pinion diameter		8 mm

Material housing		Wrought aluminium alloy Anodised
Material drive shaft		High-alloy stainless steel
Product weight		3.347 g
Max. feed force Fx		480 N
Ambient temperature		-10 °C ... 60 °C
Max. drive output speed		300 rpm
Design		Electromechanical rotary/lifting module With toothed belt
Mounting position		optional
Rotation angle		Infinite
Working stroke		0 mm ... 100 mm
