| Working stroke | 50 mm ... 2.400 mm | ||
| Spindle diameter | 25 mm | ||
| Guide | Recirculating ball bearing guide | ||
| Type of motor | Stepper motor Servo motor | ||
| Symbol | 991,211 | ||
| Max. speed | 1,5 m/s | ||
| Duty cycle | 100% | ||
| Ambient temperature | -10 °C ... 60 °C | ||
| 2nd moment of area Iz | 35.200.000 mm⁴ | ||
| Max. force Fz | 13.000 N | ||
| Max. moment My | 1.450 Nm | ||
| Max. radial force at drive shaft | 500 N | ||
| Torsional mass moment of inertia It | 3.120.000 mm⁴ | ||
| Weight of slide | 5.826 g | ||
| Basic weight for 0 mm stroke | 19.137 g | ||
| Material end cap | Wrought aluminium alloy Anodised | ||
| Material profile | Wrought aluminium alloy Anodised | ||
| Material drive cover | Wrought aluminium alloy Anodised | ||
| Material guide rail | Steel | ||
| Material spindle nut | Steel |
| Size | 220 | ||
| Mounting position | optional | ||

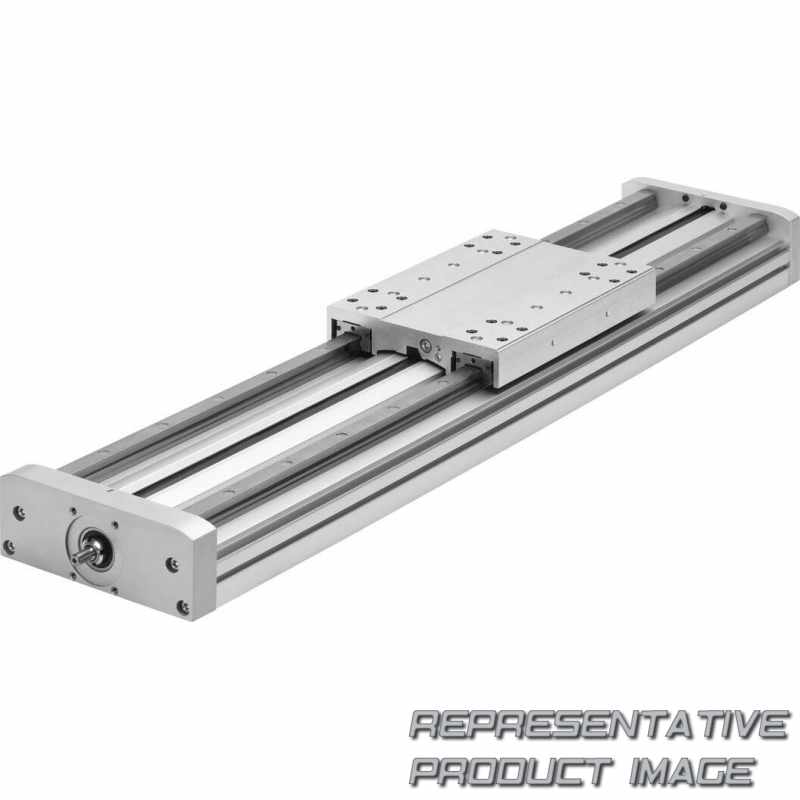

| Design | Electromechanical linear axis With ball screw | ||
| Spindle type | Ball screw | ||
| Max. acceleration | 15 m/s² | ||
| Repetition accuracy | ±0.02 mm | ||
| Degree of protection | IP40 | ||
| 2nd moment of area Iy | 5.570.000 mm⁴ | ||
| Max. force Fy | 13.000 N | ||
| Max. moment Mx | 900 Nm | ||
| Max. moment Mz | 1.450 Nm | ||
| Max. feed force Fx | 1.500 N | ||
| Mass moment of inertia JH per metre of stroke | 0,276 kgcm² | ||
| Weight of additional slide | 5.505 g | ||
| Additional weight per 10 mm stroke | 250 g | ||
| Material driver | Wrought aluminium alloy Anodised | ||
| Note on materials | Contains paint-wetting impairment substances RoHS-compliant | ||
| Material guide slide | Steel | ||
| Material slide | Wrought aluminium alloy Anodised | ||
| Material spindle | Steel |
