| protection | auto reset | ||
| environmental rating | nema 4, nema 4x, nema 6, nema 6p, nema 12, nema 13, ip67, ip69k | ||
| contact rating | 500 ma at 6-30 vdc | ||

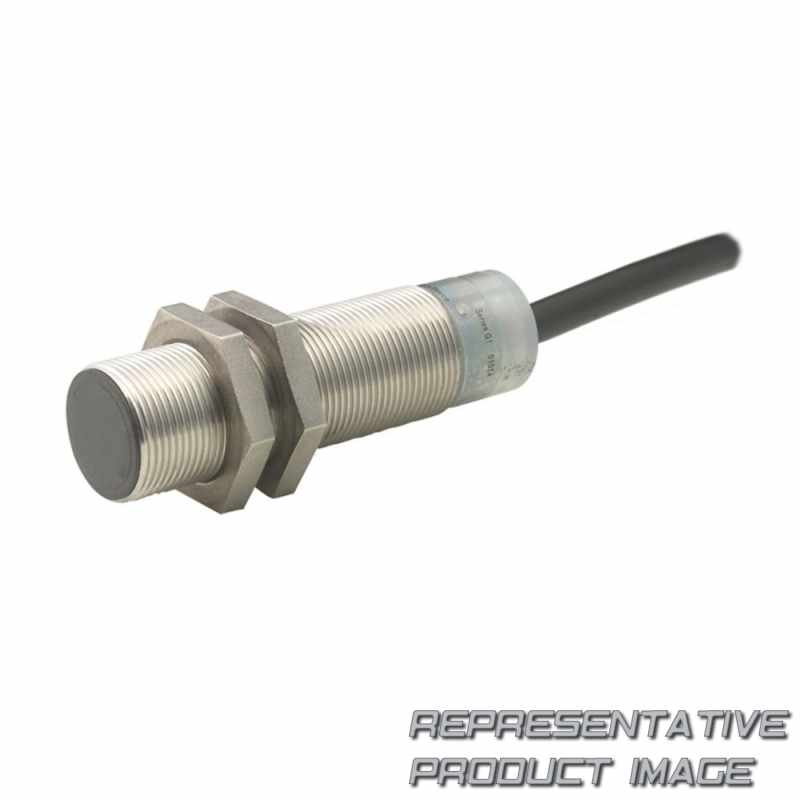

| Type | premium+ inductive proximity sensor | ||
| enclosure material | 303 stainless steel | ||
| cable type | polyvinyl chloride (pvc) | ||
| maximum dc current | 500 ma | ||
| cord length | 79.2 ft | ||
| certifications | ul listed csa certified |
||
| warranty | 1 year | ||
| product width | .71 in | ||
| product length/depth | 2.54 in |
| actuator function | shielded | ||
| operating temperature - max | 158 °f | ||
| accuracy | < 1% sensing range | ||
| Series | e57 | ||
| led indicator | 360 ° viewable led | ||
| Input voltage | 6-48 vdc | ||
| operating temperature - min | -13 °f | ||
| contact configuration | no npn open collector | ||
| compliances | ce marked | ||
| Product weight | .7 lb | ||
| product height | .71 in | ||
| UPC | 782113743028 |
