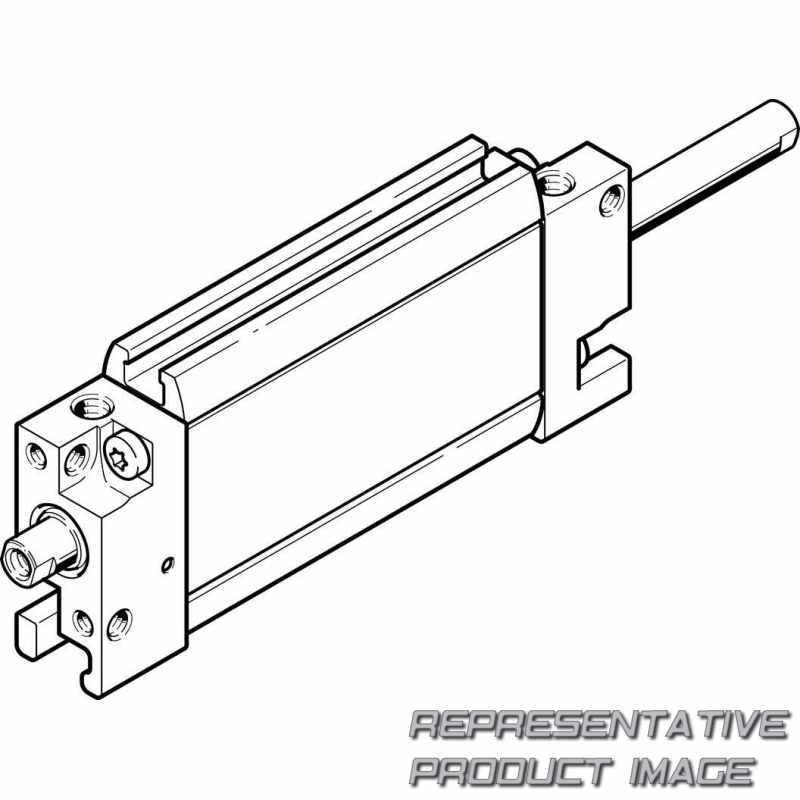

FESTO 164001 flat cylinder

Name: 164001 FESTO
Brand: FESTO
SKU: 721779-en-gbp
Price: 134.16 GBP
Availability: SoldOut

DZF-12-80-P-A-S2

£134.16 ~~£178.88~~ -24%

Limited stock only available on quotation

Specifications

Cushioning (P)	Elastic cushioning rings/plates on both sides
Position sensing (A)	For proximity sensor
Piston rod type (S2)	Through piston rod
Temperature resistance	Standard

Material piston rod		High-alloy stainless steel
Material seals		NBR TPE-U(PU)
Pneumatic connection		M5
Basic weight for 0 mm stroke		96 g
Additional moving mass per 10 mm stroke		2 g
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke		51 N
Max. torque for protection against torsion		0,1 Nm
Corrosion resistance class CRC		2 - Moderate corrosion stress
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Protection against torque/guide		Oval piston
Symbol		00991219
Design		Piston Piston rod
Cushioning		Elastic cushioning rings/plates at both ends
Torsional backlash at piston rod +/-		2,5 deg
Stroke		1 mm ... 200 mm

Material housing		Aluminium Smooth anodised
Material cover		Wrought aluminium alloy
Type of mounting		Via female thread With accessories Either:
Additional weight per 10 mm stroke		9 g
Moving mass for 0 mm stroke		12 g
Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke		51 N
Ambient temperature		-20 °C ... 80 °C
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Operating pressure		1,6 bar ... 10 bar
Variants		Through piston rod
Position detection		Via proximity switch
Mode of operation		Double-acting
Mounting position		optional
Piston diameter		12 mm Equivalent diameter
