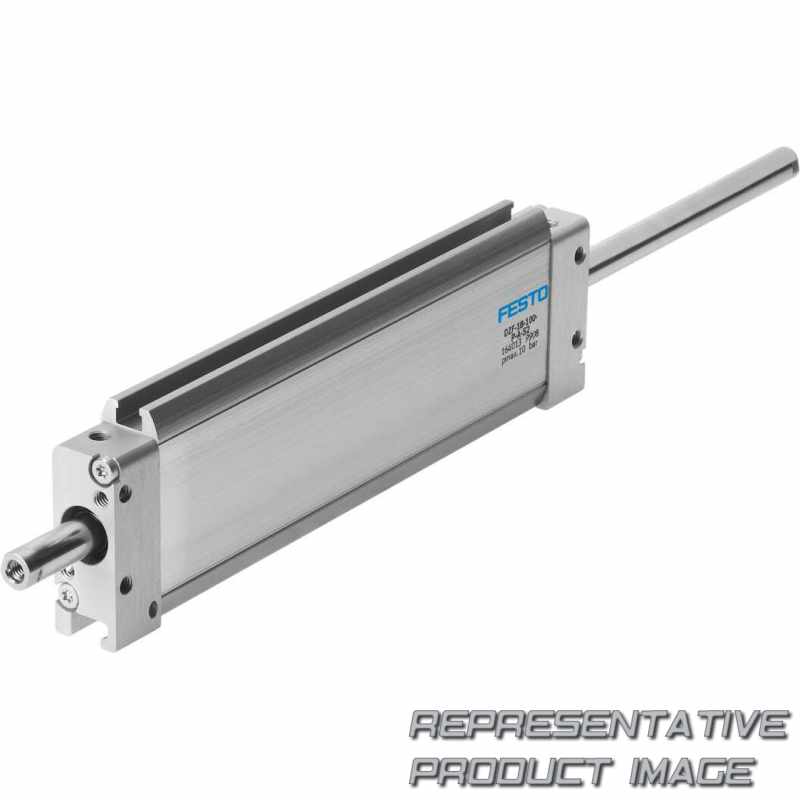

FESTO 164013 flat cylinder

Name: 164013 FESTO
Brand: FESTO
SKU: 723000-en-gbp
Price: 139.43 GBP
Availability: SoldOut

DZF-18-80-P-A-S2

£139.43 ~~£185.90~~ -24%

Limited stock only available on quotation

Specifications

Cushioning (P)	Elastic cushioning rings/plates on both sides
Position sensing (A)	For proximity sensor
Piston rod type (S2)	Through piston rod
Temperature resistance	Standard

Material piston rod		High-alloy stainless steel
Material seals		NBR TPE-U(PU)
Pneumatic connection		M5
Basic weight for 0 mm stroke		107 g
Additional moving mass per 10 mm stroke		4 g
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke		123 N
Max. torque for protection against torsion		0,2 Nm
Corrosion resistance class CRC		2 - Moderate corrosion stress
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Protection against torque/guide		Oval piston

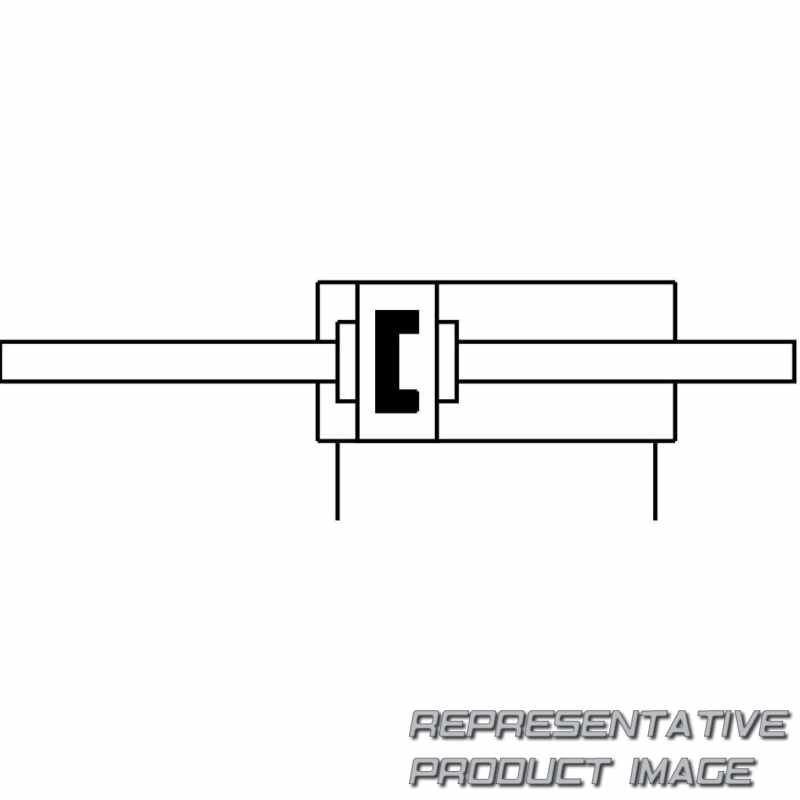

Symbol		00991219
Design		Piston Piston rod
Mounting position		optional
Torsional backlash at piston rod +/-		1,2 deg
Stroke		1 mm ... 200 mm

Material housing		Aluminium Smooth anodised
Material cover		Wrought aluminium alloy
Type of mounting		Via female thread With accessories Either:
Additional weight per 10 mm stroke		13 g
Moving mass for 0 mm stroke		24 g
Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke		123 N
Ambient temperature		-20 °C ... 80 °C
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Operating pressure		1 bar ... 10 bar
Variants		Through piston rod
Position detection		Via proximity switch
Mode of operation		Double-acting
Cushioning		Elastic cushioning rings/plates at both ends
Piston diameter		18 mm Equivalent diameter
