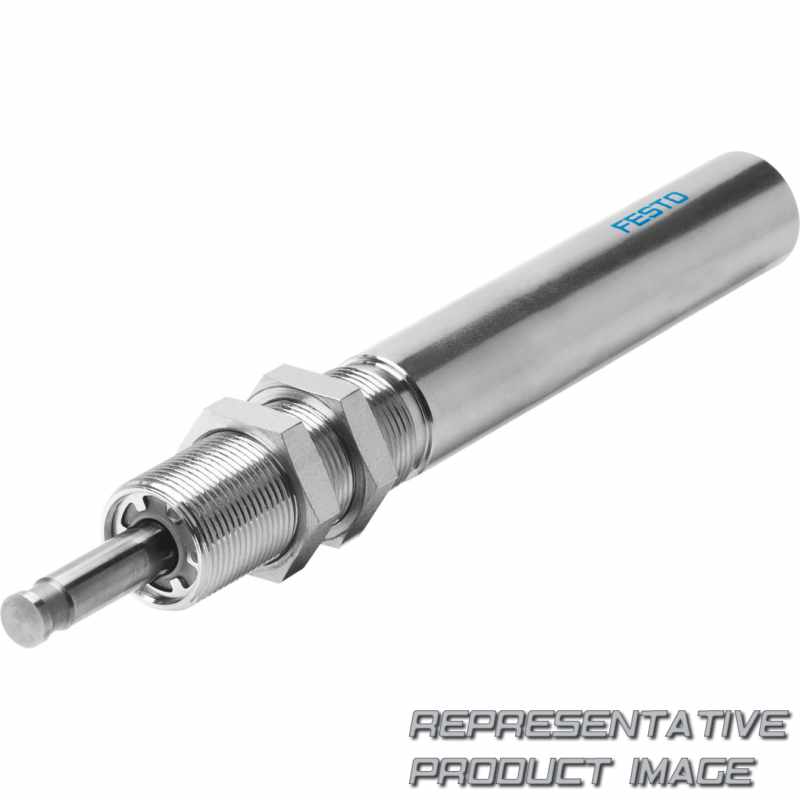

FESTO 1155696 hydraulic cushioning cylinder

Name: 1155696 FESTO
Brand: FESTO
SKU: 662097-en-gbp
Price: 850.31 GBP
Availability: InStock

DYHR-32-60-Y5

£850.31

2 pcs. with 1 to 3 days delivery to United States

Specifications

Series (DYHR)	Hydraulic cushioning cylinder
Size (32)	32

Stroke [mm] (60)	60
Geometric characteristics (Y5)	Internal hex for adjusting cushioning

Material piston rod		Hardened High-alloy steel
Material seals		NBR
Type of mounting		Via lock nut
Reset force		18 N
Max. feed force		6.400 N
Max. energy consumption per hour		220.000 J
Max. stop force		6.400 N
Corrosion resistance class CRC		1 - Low corrosion stress
Feed speed		0,2 mm/s ... 100 mm/s
Position detection		Without
Mounting position		optional
Stroke		60 mm

Material housing		Steel Galvanised
Note on materials		RoHS-compliant
Product weight		1.380 g
Max. residual energy		2 J
Min. feed force		640 N
Max. energy consumption per stroke		384 J
Ambient temperature		0 °C ... 80 °C
Reset time at room temperature		1,2 s
Max. impact speed		0,3 m/s
Mode of operation		Single-acting Pushing
Cushioning		Adjustable
Size		32
