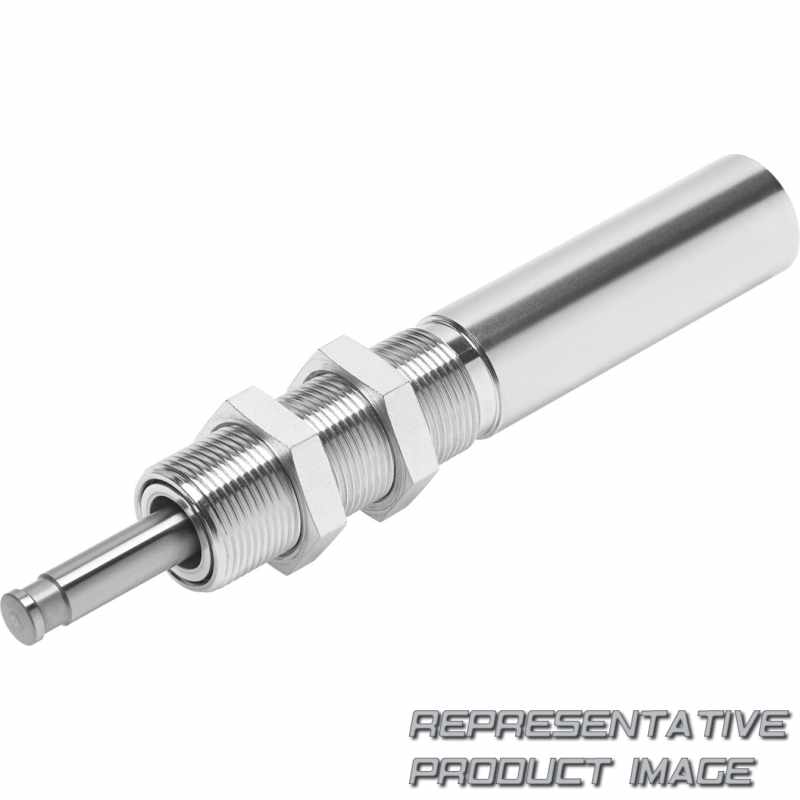

FESTO 1138649 shock absorber

Name: 1138649 FESTO
Brand: FESTO
SKU: 671997-en-gbp
Price: 671.64 GBP
Availability: InStock

DYSR-32-60-Y5

£671.64

4 pcs. with 1 to 3 days delivery to United States

Specifications

Geometric characteristics (Y5)	Internal hex for adjusting cushioning
Product features	Standard

Material piston rod		Hardened High-alloy steel
Material seals		NBR
Type of mounting		Via lock nut
Reset force		18 N
Max. energy consumption per hour		330.000 J
Max. stop force		6.400 N
Ambient temperature		-10 °C ... 80 °C
Mode of operation		Single-acting Pushing
Reset time at room temperature		0,6 s

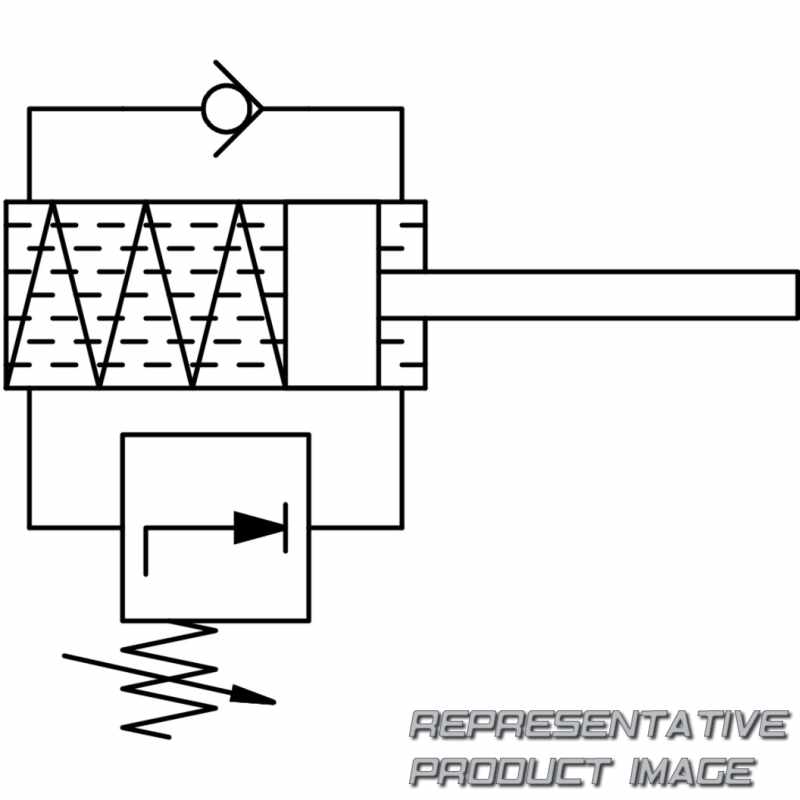

Symbol		00995984
Mounting position		optional
Stroke		60 mm

Material housing		Steel Galvanised
Note on materials		RoHS-compliant
Product weight		1.355 g
Max. residual energy		2 J
Max. energy consumption per stroke		384 J
Cushioning length		60 mm
Corrosion resistance class CRC		1 - Low corrosion stress
Reset time at min. ambient temperature		3 s
Max. impact speed		3 m/s
Position detection		Without
Cushioning		Adjustable
Size		32
