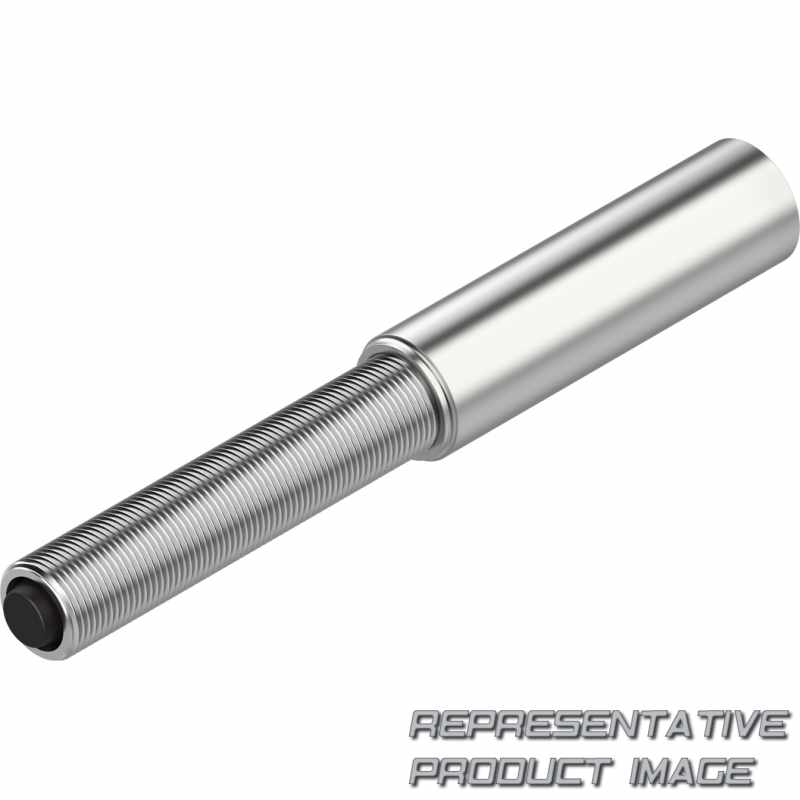

FESTO 8073908 shock absorber

Name: 8073908 FESTO
Brand: FESTO
SKU: 667202-en-gbp
Price: 26.45 GBP
Availability: InStock

DYEF-G8-M14-Y1

£26.45

1 pcs. with 1 to 3 days delivery to United States

Specifications

Geometric characteristics (Y1)	Internal hex
Stop	None
Special material properties	None

Material housing		High-alloy steel
Note on materials		RoHS-compliant
Product weight		136,5 g
Max. tightening torque		8 Nm
Ambient temperature		-10 °C ... 60 °C
Corrosion resistance class CRC		2 - Moderate corrosion stress
Position detection		Without
Cushioning		Elastic cushioning rings/pads at both ends without metal fixed stop
Size		M14

Material seals		NBR
Type of mounting		Via threaded sleeve
Max. energy consumption per stroke		0,45 J
Cushioning length		1,2 mm
LABS (PWIS) conformity		VDMA24364-B2-L
Max. impact speed		0,8 m/s
Mounting position		optional
Stroke		1,2 mm
