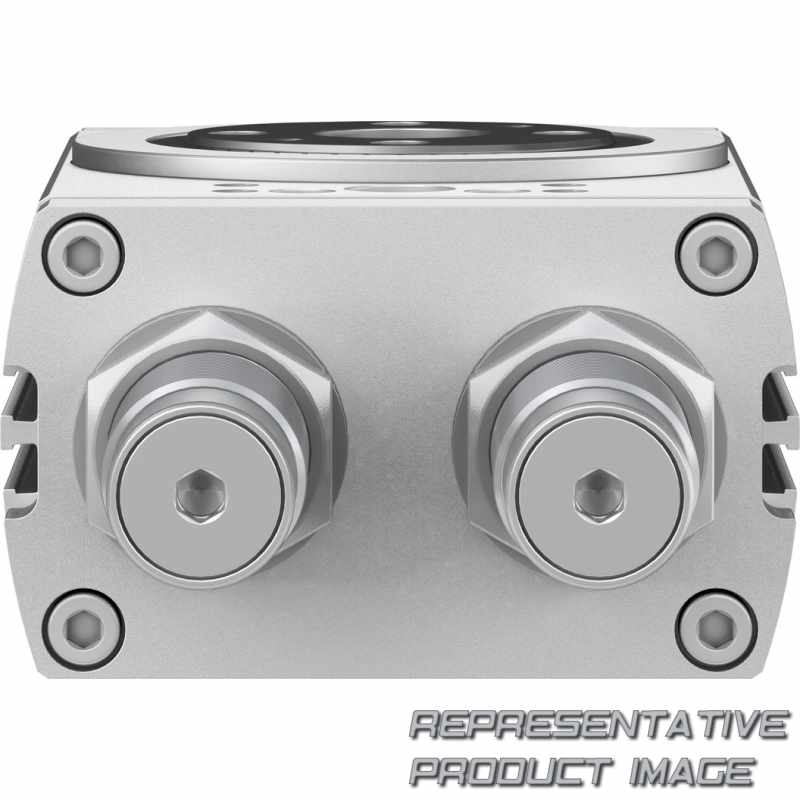

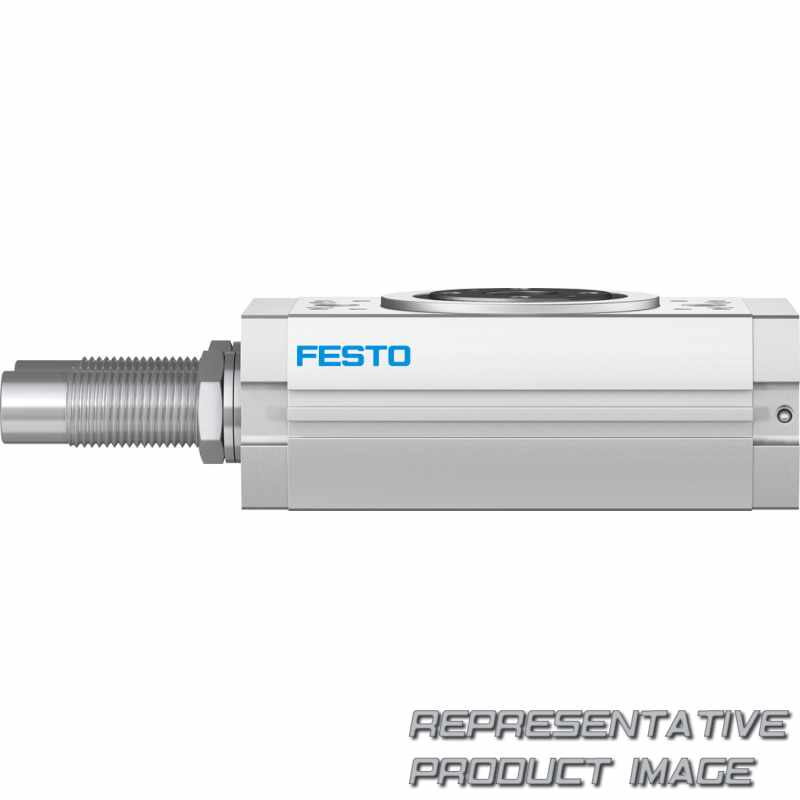

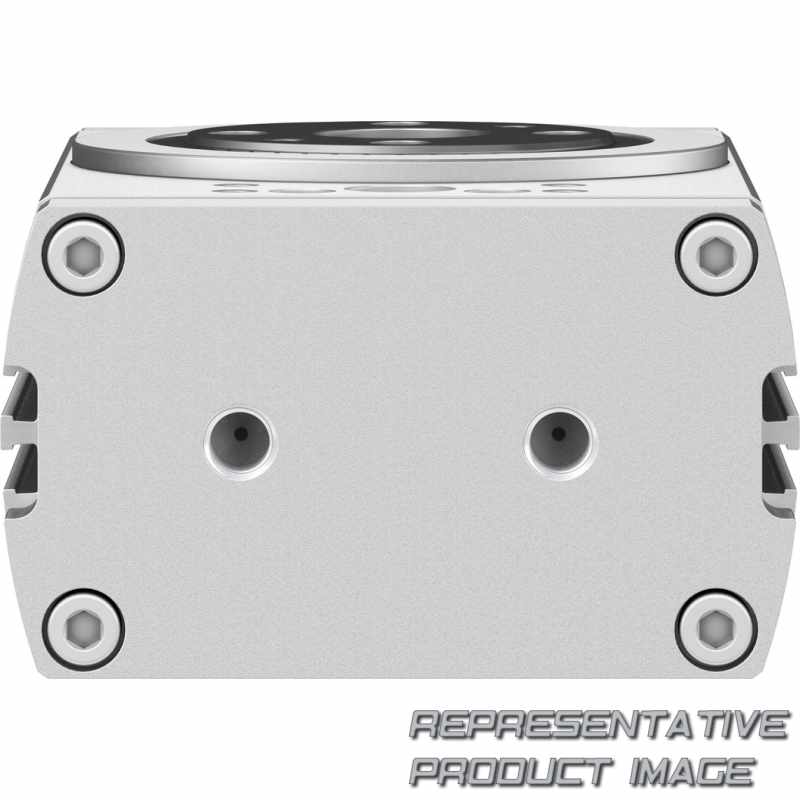

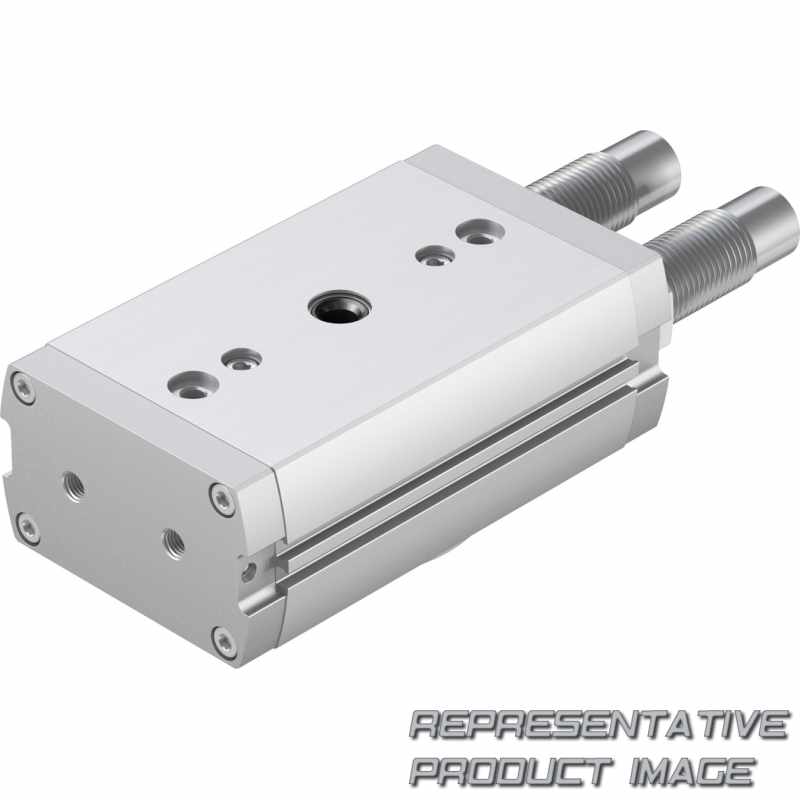

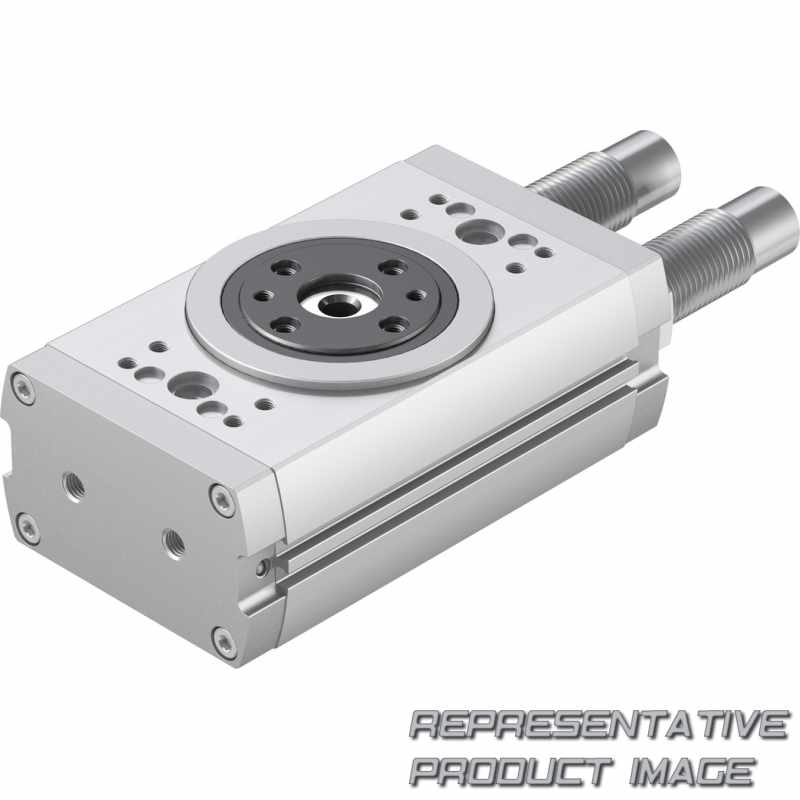

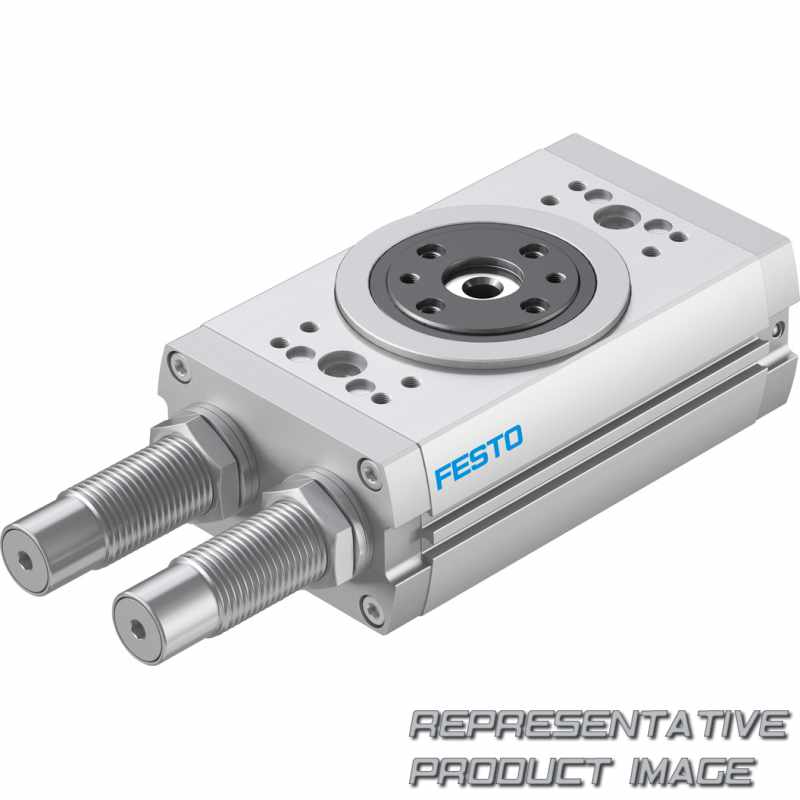

| Material housing | Wrought aluminium alloy Smooth anodised | ||
| Material cover | Aluminium Anodised | ||
| Note on materials | RoHS-compliant | ||
| Type of mounting | With through-hole Via female thread Either: | ||
| Permissible mass moment of inertia | 1,5 kgm² | ||
| Ambient temperature | -10 °C ... 60 °C | ||
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) | ||
| Mode of operation | Double-acting | ||
| Symbol | 00991265 | ||
| Design | Rack and pinion | ||
| Cushioning | Internal hydraulic cushioning normal | ||
| Setting range of swivel angle on both sides | +10/-190 deg | ||
| Size | 35 |
| Material seals | NBR TPE-U(PU) | ||
| Material drive shaft | Tempered steel | ||
| Pneumatic connection | G1/8 | ||
| Product weight | 4.784 g | ||
| Theoretical torque at 0.6 MPa (6 bar, 87 psi) | 15,8 Nm | ||
| LABS (PWIS) conformity | VDMA24364 zone III | ||
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] | ||
| Operating pressure | 2 bar ... 10 bar | ||
| Position detection | Via proximity switch | ||
| Mounting position | optional | ||
| Swivel angle | 180 deg | ||
| Cushioning angle | 85 deg |
