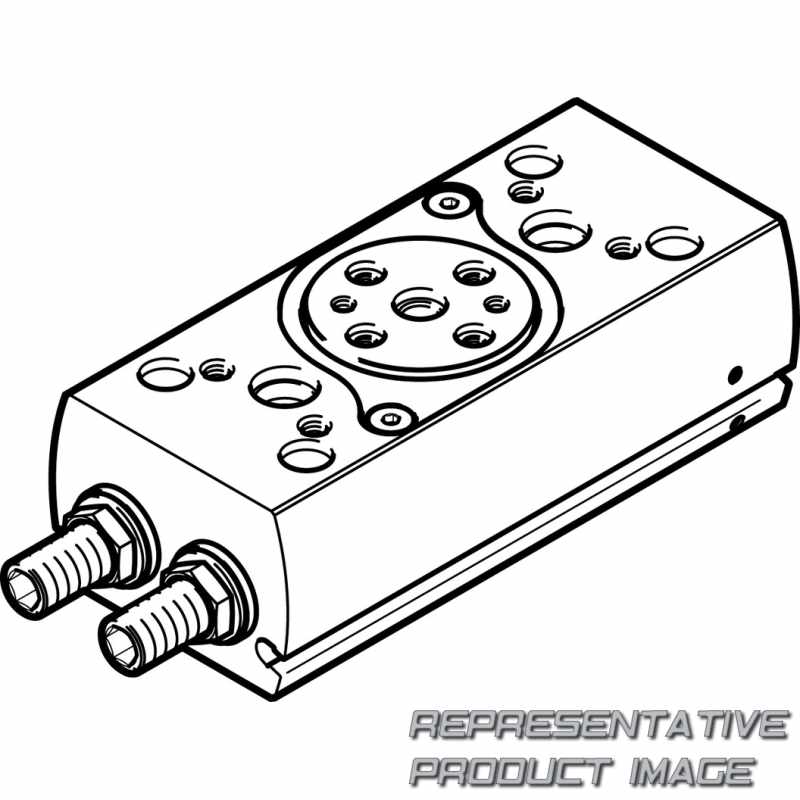

FESTO 2282067 semi-rotary drive

Name: 2282067 FESTO
Brand: FESTO
SKU: 666529-en-gbp
Price: 438.73 GBP
Availability: InStock

DRRD-12-180-FH-PA

£438.73

3 pcs. with 1 to 3 days delivery to United States

Specifications

Series (DRRD)	Semi-rotary drive, double piston
Size (12)	12
Nominal swivel angle [°] (180)	180
Output shaft (FH)	Flanged shaft, hollow
Energy through-feed	None
Cushioning (P)	Elastic cushioning rings/plates on both sides
Position sensing (A)	For proximity sensor

EU certification	None
Intermediate position	None
End-position locking	None
Sensor mounting, external	None
Version	Standard
Operating instructions	With operating instructions

Material housing		Wrought aluminium alloy Smooth anodised
Material drive shaft		High-alloy stainless steel
Pneumatic connection		M5
Product weight		380 g
Theoretical torque at 0.6 MPa (6 bar, 87 psi)		0,8 Nm
LABS (PWIS) conformity		VDMA24364 zone III
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Operating pressure		3 bar ... 8 bar
Position detection		Via proximity switch
Mounting position		optional
Swivel angle		180 deg
Cushioning angle		32 deg

Material seals		NBR TPE-U(PU)
Note on materials		RoHS-compliant
Type of mounting		With through-hole Via female thread Either:
Permissible mass moment of inertia		0,008 kgm²
Ambient temperature		-10 °C ... 60 °C
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Mode of operation		Double-acting
Symbol		00991265
Design		Rack and pinion
Cushioning		Elastic cushioning rings/plates at both ends
Setting range of swivel angle on both sides		+10/-100 deg
Size		12
