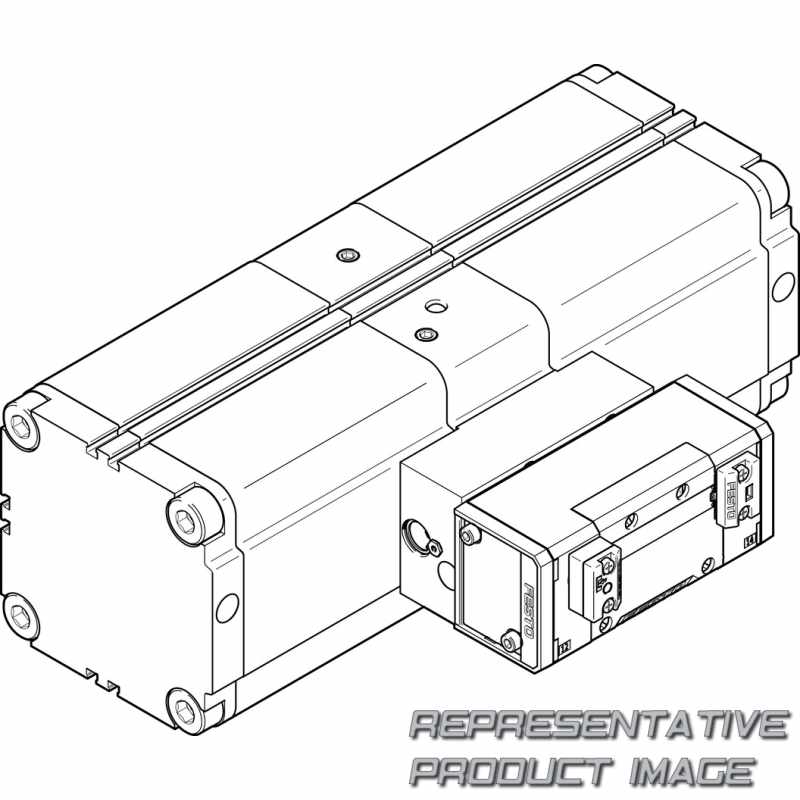

FESTO 549398 pressure booster

Name: 549398 FESTO
Brand: FESTO
SKU: 689467-en-gbp
Price: 1459.71 GBP
Availability: InStock

DPA-100-D

£1,459.71

2 pcs. with 1 to 3 days delivery to United States

Specifications

Series (DPA)	Pressure booster
Size (100)	100
Outlet pressure (D)	Double input pressure, without pressure regulator

Note on materials		RoHS-compliant
Pneumatic connection, port 2		G1/2
Type of mounting		Via female thread
Ambient temperature		5 °C ... 60 °C
Corrosion resistance class CRC		2 - Moderate corrosion stress
Operating medium		Compressed air to ISO 8573-1:2010 [7:3:4]
Pressure regulation range		5 bar ... 16 bar
Output pressure 2		4 bar ... 16 bar
Symbol		00992008
Mounting position		optional

Pneumatic connection, port 3		G1/2
Pneumatic connection, port 1		G1/2
Product weight		13.000 g
Storage temperature		5 °C ... 60 °C
Note on operating and pilot medium		Lubricated operation not possible
Inlet pressure 1		2 bar ... 8 bar
Operating pressure		2,5 bar ... 8 bar
Pressure gauge (ANALOG) or Pressure display (DIGITAL)		Prepared for G1/8
Design		Twin-piston pressure booster
Piston diameter		100 mm
