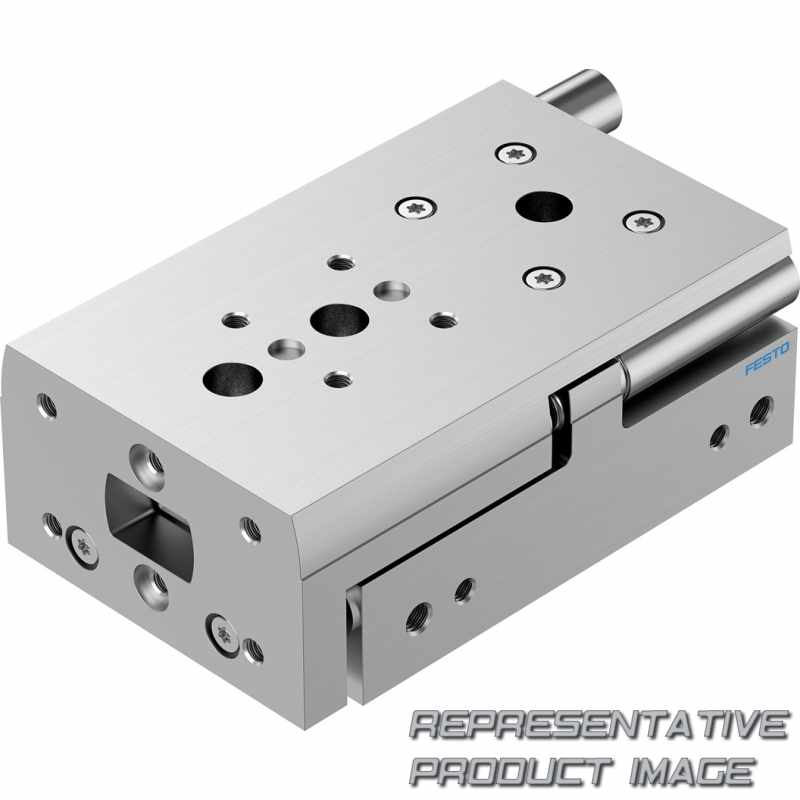

FESTO 8085126 mini slide

Name: 8085126 FESTO
Brand: FESTO
SKU: 671848-en-gbp
Price: 390.46 GBP
Availability: InStock

DGST-12-40-PA

£390.46

5 pcs. with 1 to 3 days delivery to United States

Specifications

Cushioning (P)	Elastic cushioning rings/plates on both sides
Position sensing (A)	For proximity sensor
Special material properties	None
Lubrication	Standard

Material piston rod		High-alloy stainless steel
Material guide		POM TPE-E High-alloy steel
Material cover		Wrought aluminium alloy
Pneumatic connection		M5
Product weight		609 g
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke		136 N
Max. moment Mz		5,8 Nm
Max. moment Mx		5,8 Nm
Max. force Fy		560 N
Impact energy in end positions		0,12 J
Corrosion resistance class CRC		1 - Low corrosion stress
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Repetition accuracy		<= 0.3 mm
Operating pressure		14,5 psi ... 116 psi
Position detection		Via proximity switch
Guide		Recirculating ball bearing guide
Cushioning		Elastic cushioning rings/plates at both ends
Piston diameter		12 mm
Adjustable end position range/length front		22,1 mm

Material housing		Wrought aluminium alloy
Material seals		HNBR
Note on materials		RoHS-compliant
Type of mounting		With through-hole
Moving mass		307 g
Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke		102 N
Max. moment My		5,8 Nm
Max. force Fz		560 N
Cushioning length		1,3 mm
Ambient temperature		-10 °C ... 60 °C
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Mode of operation		Double-acting
Max. speed		0,8 m/s
Symbol		00991249
Design		Twin piston Yoke Piston rod Slide
Mounting position		optional
Operating mode, drive unit		Yoke
Adjustable end position range/length rear		20,8 mm
Stroke		40 mm
