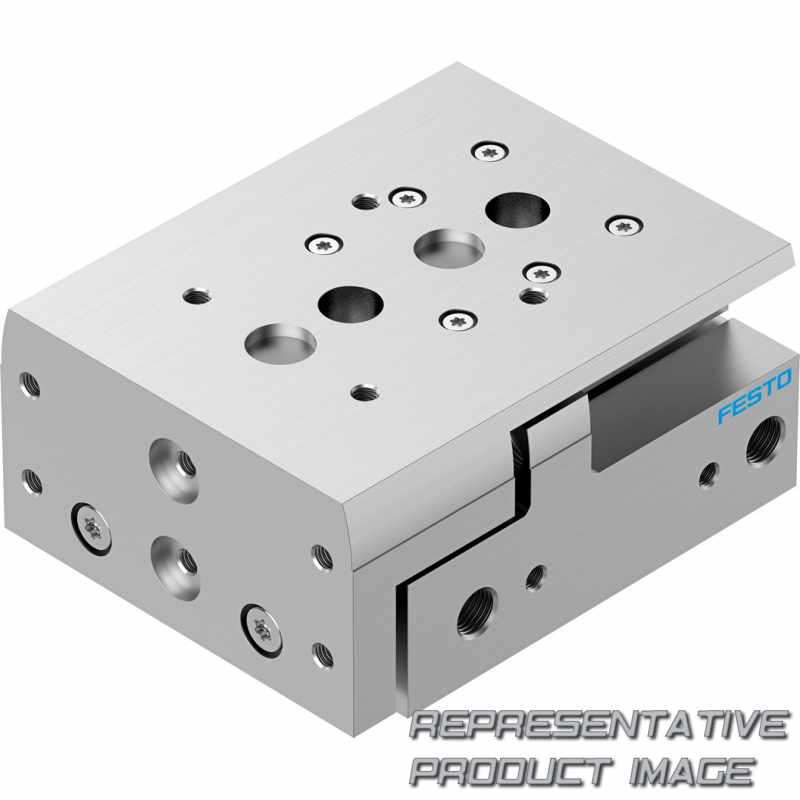

FESTO 8078865 mini slide

Name: 8078865 FESTO
Brand: FESTO
SKU: 676117-en-gbp
Price: 475.43 GBP
Availability: InStock

DGST-20-40-E1A

£475.43

2 pcs. with 1 to 3 days delivery to United States

Specifications

Cushioning (E1)	Elastomer cushioning, double-sided, stroke not adjustable
Position sensing (A)	For proximity sensor
Special material properties	None
Lubrication	Standard

Material piston rod		High-alloy stainless steel
Material guide		POM TPE-E High-alloy steel
Material cover		Wrought aluminium alloy
Pneumatic connection		G1/8
Product weight		1.055 g
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke		377 N
Max. moment Mz		11 Nm
Max. moment Mx		10 Nm
Max. force Fy		930 N
Impact energy in end positions		0,2 J
Corrosion resistance class CRC		1 - Low corrosion stress
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Repetition accuracy		<= 0.3 mm
Operating pressure		14,5 psi ... 116 psi
Position detection		Via proximity switch
Guide		Ball bearing cage guide
Cushioning		Elastomer cushioning, double-sided, stroke not adjustable
Piston diameter		20 mm

Material housing		Wrought aluminium alloy
Material seals		HNBR
Note on materials		RoHS-compliant
Type of mounting		With through-hole
Moving mass		498 g
Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke		317 N
Max. moment My		11 Nm
Max. force Fz		930 N
Cushioning length		1 mm
Ambient temperature		-10 °C ... 60 °C
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Mode of operation		Double-acting
Max. speed		0,5 m/s
Symbol		00991249
Design		Twin piston Yoke Piston rod Slide
Mounting position		optional
Operating mode, drive unit		Yoke
Stroke		40 mm
