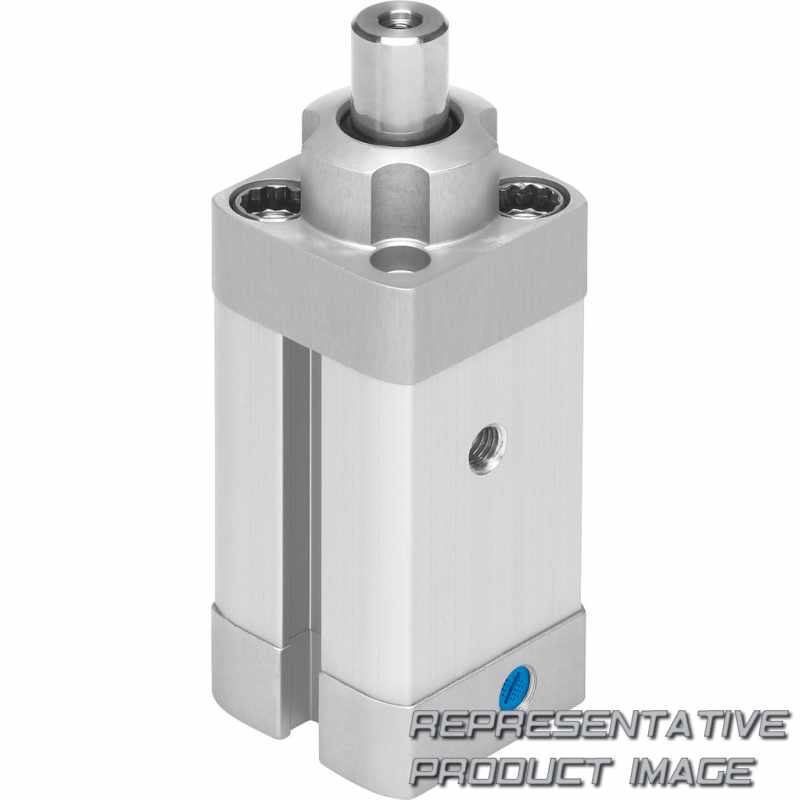

FESTO 576066 stopper cylinder

Name: 576066 FESTO
Brand: FESTO
SKU: 667340-en-gbp
Price: 103.45 GBP
Availability: InStock

DFSP-16-10-PF-PA

£103.45 ~~£141.84~~ -27%

2 pcs. with 1 to 3 days delivery to United States

Specifications

Series (DFSP)	Stopper cylinder, single- or double-acting
Protection against rotation	None
Piston diameter [mm] (16)	16
Stroke [mm] (10)	10

Function (P)	Single-acting with spring
Piston rod design (F)	With female thread
Cushioning (P)	Elastic cushioning rings/plates on both sides
Position sensing (A)	For proximity sensor

Stroke		10 mm
Piston rod thread		M3
Mounting position		optional
Design		Piston Piston rod Profile barrel
Piston-rod end		Female thread
Protection against torque/guide		Round piston rod
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Corrosion resistance class CRC		2 - Moderate corrosion stress
Ambient temperature		-10 °C ... 80 °C
Permissible lateral force during switching operation		147 N
Type of mounting		With through-hole Via female thread With accessories Either:
Note on materials		RoHS-compliant
Material cover		Wrought aluminium alloy Anodised
Material piston rod		High-alloy stainless steel
Material cylinder barrel		Wrought aluminium alloy Smooth anodised

Piston diameter		16 mm
Cushioning		Elastic cushioning rings/plates at both ends
Mode of operation		Single-acting Pulling
Position detection		Via proximity switch
Symbol		00991850
Operating pressure		2,8 bar ... 10 bar
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
LABS (PWIS) conformity		VDMA24364-B1/B2-L
Impact force		880 N
Max. cycle frequency		5 Hz
Pneumatic connection		M5
Material collar screws		High-alloy stainless steel
Material seals		TPE-U(PU)
Material roll		Galvanised steel
