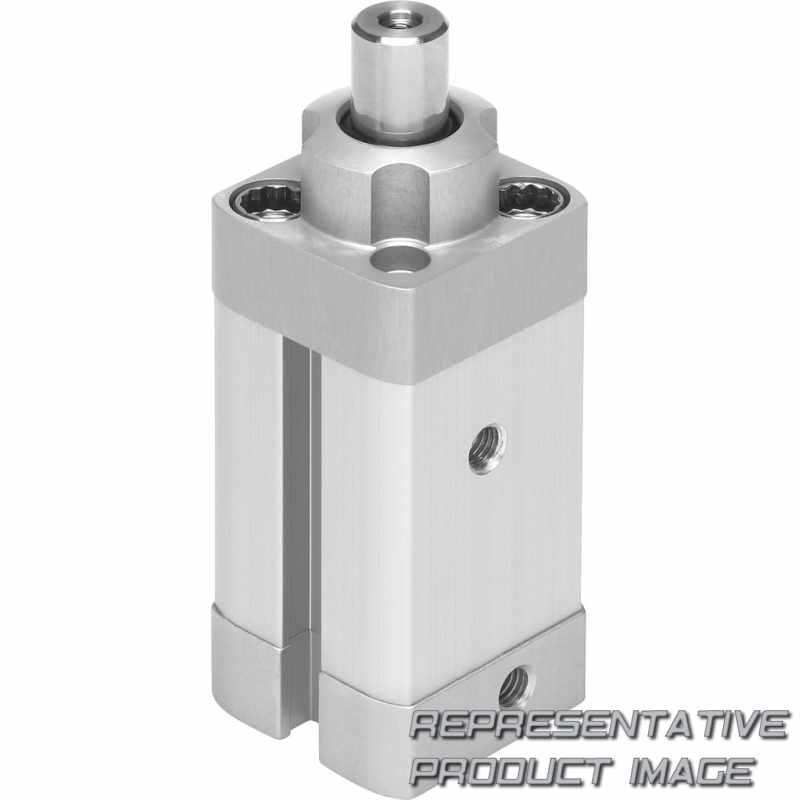

FESTO 576062 stopper cylinder

Name: 576062 FESTO
Brand: FESTO
SKU: 680436-en-gbp
Price: 103.49 GBP
Availability: InStock

DFSP-16-10-F-PA

£103.49

2 pcs. with 1 to 3 days delivery to United States

Specifications

Series (DFSP)	Stopper cylinder, single- or double-acting
Protection against rotation	None
Piston diameter [mm] (16)	16
Stroke [mm] (10)	10

Function	Double-acting with spring
Piston rod design (F)	With female thread
Cushioning (P)	Elastic cushioning rings/plates on both sides
Position sensing (A)	For proximity sensor

Material cylinder barrel		Wrought aluminium alloy Smooth anodised
Material piston rod		High-alloy stainless steel
Material cover		Wrought aluminium alloy Anodised
Note on materials		RoHS-compliant
Type of mounting		With through-hole Via female thread With accessories Either:
Permissible lateral force during switching operation		147 N
Ambient temperature		-10 °C ... 80 °C
Corrosion resistance class CRC		2 - Moderate corrosion stress
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Protection against torque/guide		Round piston rod
Piston-rod end		Female thread
Design		Piston Piston rod Profile barrel
Mounting position		optional
Piston rod thread		M3
Stroke		10 mm

Material roll		Galvanised steel
Material seals		TPE-U(PU)
Material collar screws		High-alloy stainless steel
Pneumatic connection		M5
Max. cycle frequency		5 Hz
Impact force		880 N
LABS (PWIS) conformity		VDMA24364-B1/B2-L
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Operating pressure		2,8 bar ... 10 bar
Symbol		00995272
Position detection		Via proximity switch
Mode of operation		Double-acting Pulling
Cushioning		Elastic cushioning rings/plates at both ends
Piston diameter		16 mm
