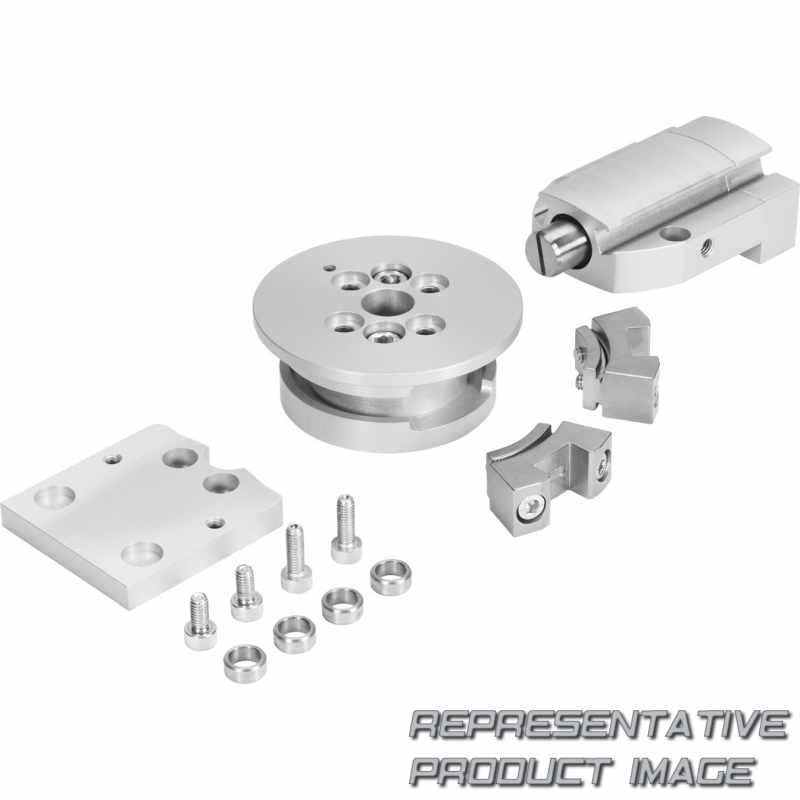

FESTO 1631139 clamping unit

Name: 1631139 FESTO
Brand: FESTO
SKU: 677879-en-gbp
Price: 512.33 GBP
Availability: InStock

DADL-EL-Q11-32

£512.33

2 pcs. with 1 to 3 days delivery to United States

Specifications

Size	32
Operating Pressure	72,5 psi ... 116 psi

Pneumatic connection	M5
Weight	600g

Mode of operation		Single-acting Pulling
Material disc		Aluminium Anodised
Material housing cover		Aluminium Anodised
Material seals		NBR TPE-U(PU)
Note on materials		RoHS-compliant
Type of mounting		Via through-hole and centring sleeve
Ambient temperature		-10 °C ... 60 °C
Corrosion resistance class CRC		2 - Moderate corrosion stress
Operating medium		Compressed air to ISO 8573-1:2010 [7:-:-]
Position detection		Via proximity switch
Rotation angle adjustment range		55 deg ... 200 deg

Material screws		Steel Galvanised
Material bearing		Polymer
Material housing		Aluminium Hard anodised
Material mounting		Aluminium Anodised
Pneumatic connection		M5
Product weight		600 g
LABS (PWIS) conformity		VDMA24364-B1/B2-L
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Operating pressure		72,5 psi ... 116 psi
Design		Piston Piston rod
Size		32
