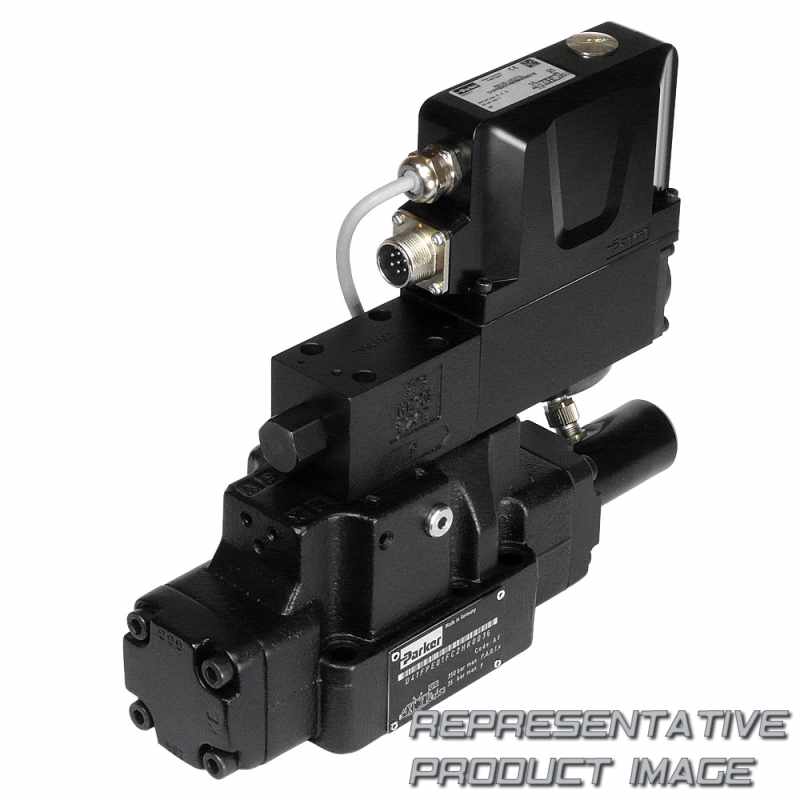

PARKER D41FPR31FC2NK00

Name: D41FPR31FC2NK00 PARKER
Brand: PARKER
SKU: 803258-en-gbp
Price: 4643.65 GBP
Availability: SoldOut

£4,643.65 ~~£9,287.30~~ -50%

Limited stock only available on quotation

Specifications

max. pressure	350 bar
max. flow	600 l/min

Seal	nbr
Weight	14.20Kg

body material		cast iron
Mounting type		subplate mounting
for fluid type		hydraulic oil according to din 51524 ... 535
maximum operating temperature		50 °c
maximum operating pressure		350 bar
electronics type		onboard electronics
valve option		standard and regenerative valve function
Flow direction		0-10 v = p-a
seal material		nbr
defined spool position at power down		center position
pressure differential (bar)		5
flow rate		200 l/min
port connection		ng16 / cetop 07

function		0-10 v = p-a
product series		proportional dc valve
minimum operating temperature		-20 °c
Weight		14.2 kg
actuation type		vcd®-actuator
operation type		pilot
connection type		6+pe
signal input		0-±10 v
pilot inlet / drain locations		external/external
spool type		overlap
spool code		r31
maximum flow rate		600 l/min
