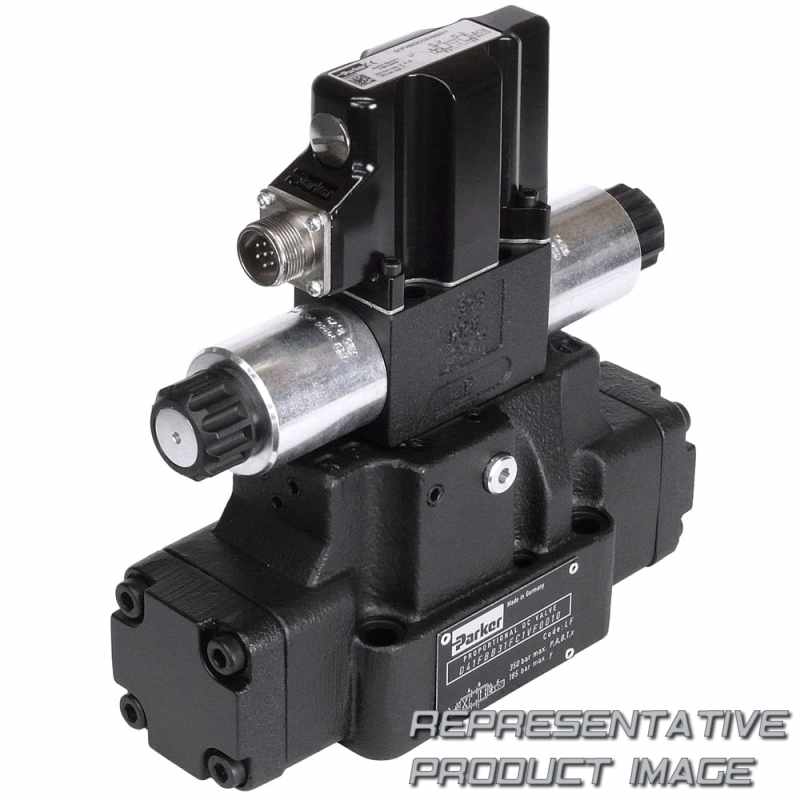

PARKER D41FCE02FC4NS70

Name: D41FCE02FC4NS70 PARKER
Brand: PARKER
SKU: 806800-en-gbp
Price: 4393.02 GBP
Availability: SoldOut

£4,393.02 ~~£6,735.97~~ -34%

Limited stock only available on quotation

Specifications

max. pressure	350 bar
max. flow	200 l/min

Seal	nbr
Weight	12.50Kg

body material		cast iron
minimum operating temperature		-20 °c
maximum operating pressure		350 bar
Weight		12,5 kg
actuation type		proportional solenoid
Mounting type		subplate mounting
valve option		standard
flow rate		200 l/min
Flow direction		12-20 ma = p-a
seal material		nbr

for fluid type		hydraulic oil according to din 51524 ... 535, water glycol
maximum operating temperature		60 °c
product series		proportional dc valve
function		3-way
operation type		pilot
signal input		4-20 ma
connection type		6 + pe + enable
port connection		ng16 / cetop 07
pilot inlet / drain locations		internal/internal
spool code		e02
