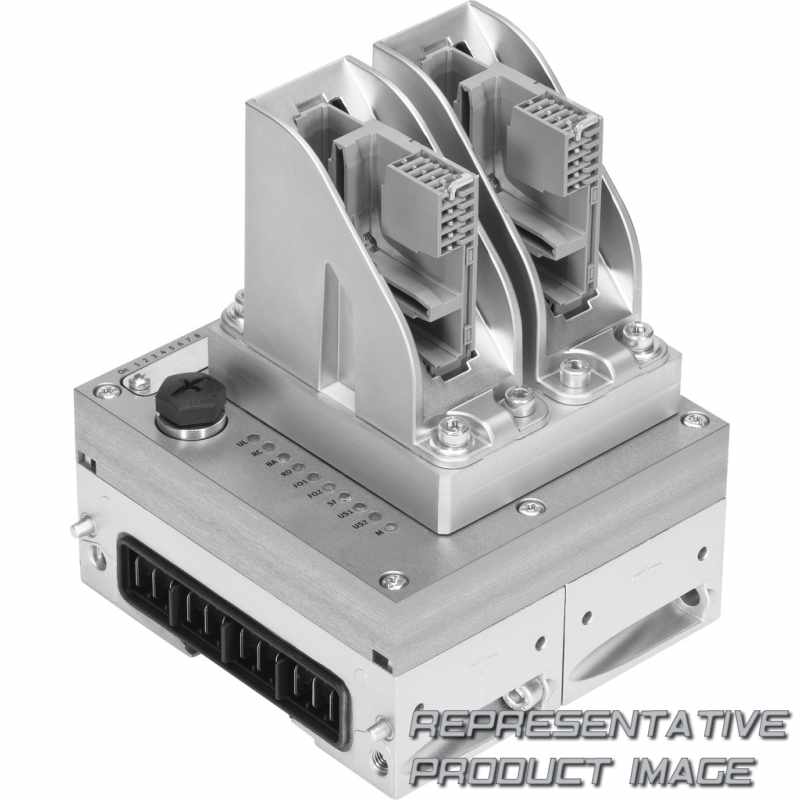

| Material housing | Aluminium | ||
| LED display, product-specific | M: Modify, parameterisation SF: System fault US1: Electronic supply, sensor supply US2: Load voltage | ||
| Protocol | Interbus | ||
| Max. address volume, outputs | 12 Byte | ||
| Ambient temperature | -5 °C ... 50 °C | ||
| Storage temperature | -20 °C ... 70 °C | ||
| CE mark (see declaration of conformity) | To EU EMC Directive | ||
| Intern power consumption nominal operating voltage | Typ. 90 mA | ||
| Baud rate | 500, 2000 kbit/s | ||
| Additional functions | Module and system parameterisation via operator units System status can be mapped using process data Additional diagnostic interface for operator units | ||
| Device-specific diagnostics | Channel-oriented and module-oriented diagnostics Undervoltage of modules Diagnostic memory | ||
| Dimensions (W x L x H) | (incl. interlinking block) 100 x 110 x 130 mm |
| Note on materials | RoHS-compliant | ||
| LED display, bus-specific | BA: Bus active FO1: fibre optic 1 FO2: Fibre optic 2 RC: Remote bus check RD: Remote bus disable UL: Operating voltage | ||
| Max. address volume, inputs | 12 Byte | ||
| Product weight | 1.255 g | ||
| Degree of protection | IP65 IP67 | ||
| Corrosion resistance class CRC | 0 - No corrosion stress | ||
| Nominal operating voltage DC | 24 V | ||
| Operational voltage range DC | 18 V ... 30 V | ||
| Operator controls | DIL switch | ||
| Parameterisation | Diagnostic behaviour Fail-safe response Forcing of channels Signal setup System parameter | ||
| Field bus interface | (Rugged line FO connector, input) (Rugged line FO connector, output) Rugged line FOC connection, outgoing Rugged line FOC connection, incoming |
