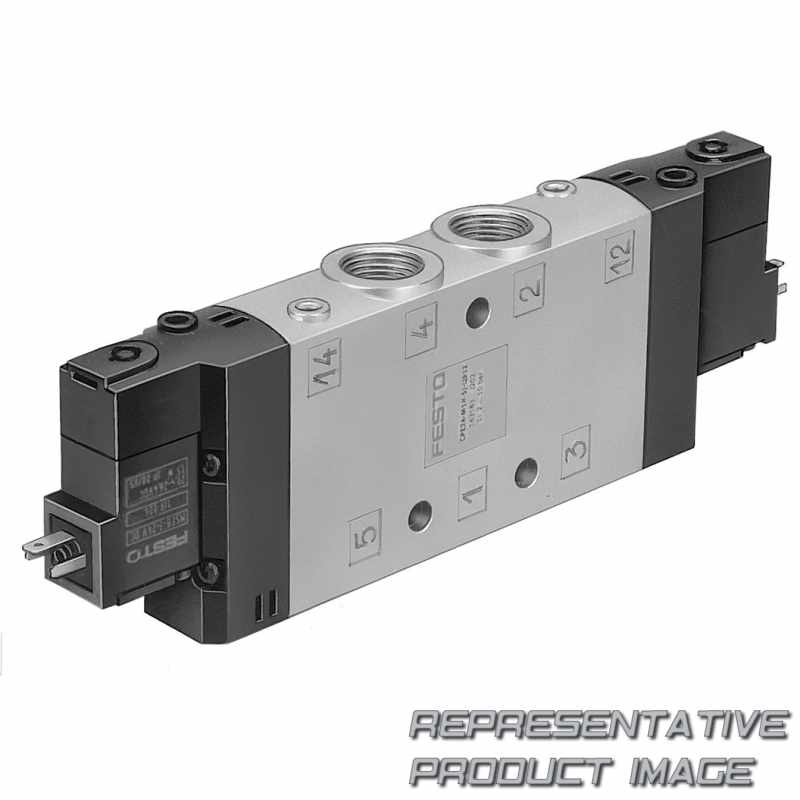

FESTO 170303 solenoid valve

Name: 170303 FESTO
Brand: FESTO
SKU: 680356-en-gbp
Price: 291.87 GBP
Availability: InStock

CPE24-M2H-5/3E-3/8

£291.87

2 pcs. with 1 to 3 days delivery to United States

Specifications

Series (CPE)	Solenoid valve, Compact Performance
Width (24)	24 mm
Nominal operating voltage (M2)	110 V AC
Electrical connection (H)	Plug pattern ZC

Valve function (5/3E)	5/3-way valve, mid-position exhausted
Pilot air	Internal
Pneumatic connection (3/8)	G3/8
Generation	None

Manual override		Detenting via accessory Non-detenting
Sealing principle		Soft
Nominal size		11 mm
CE marking (see declaration of conformity)		To UK regulations for electrical equipment
Maritime classification		See certificate
Type of reset		Mechanical spring
Operating pressure		2,5 bar ... 10 bar
pneumatic working port		G3/8
Construction width		24 mm
Valve function		5/3 exhausted
Material seals		NBR
Pneumatic connection, port 5		G3/8
Pneumatic connection, port 3		G3/8
Pneumatic connection, port 1		G3/8
Pilot air port 12		M5
Pilot exhaust port 82		M5
Electrical connection		Type C
Ambient temperature		-5 °C ... 50 °C
Corrosion resistance class CRC		2 - Moderate corrosion stress
Vibration resistance		Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Characteristic coil data		110 V AC: 50/60 Hz, pick-up power 3.0 VA, holding power 2.4 VA
Max. positive test pulse with 0 signal		3.300 µs
Switching time on		25 ms
lap		Positive overlap
Symbol		00991036
Pilot air supply		Internal

Mounting position		optional
Exhaust-air function		With flow control option
Degree of protection		IP65 With plug socket To IEC 60529
CE mark (see declaration of conformity)		To EU Low Voltage Directive
Approval		c UL us - Recognized (OL)
Design		Piston gate valve
Operating voltage		110V AC
Standard nominal flow rate		2.650 l/min
Type of actuation		Electric
Material housing		Die-cast aluminium
Note on materials		RoHS-compliant
Pneumatic connection, port 4		G3/8
Pneumatic connection, port 2		G3/8
Pilot air port 14		M5
Pilot exhaust port 84		M5
Type of mounting		With through-hole
Product weight		430 g
Media temperature		-5 °C ... 50 °C
Shock resistance		Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Permissible voltage fluctuations		-15%/+10%
Max. negative test pulse with 1 signal		3.100 µs
Duty cycle		100%
Switching time off		55 ms
Valve position code		Inscription label holder
Flow direction		Non-reversible
Type of piloting		Pilot actuated
