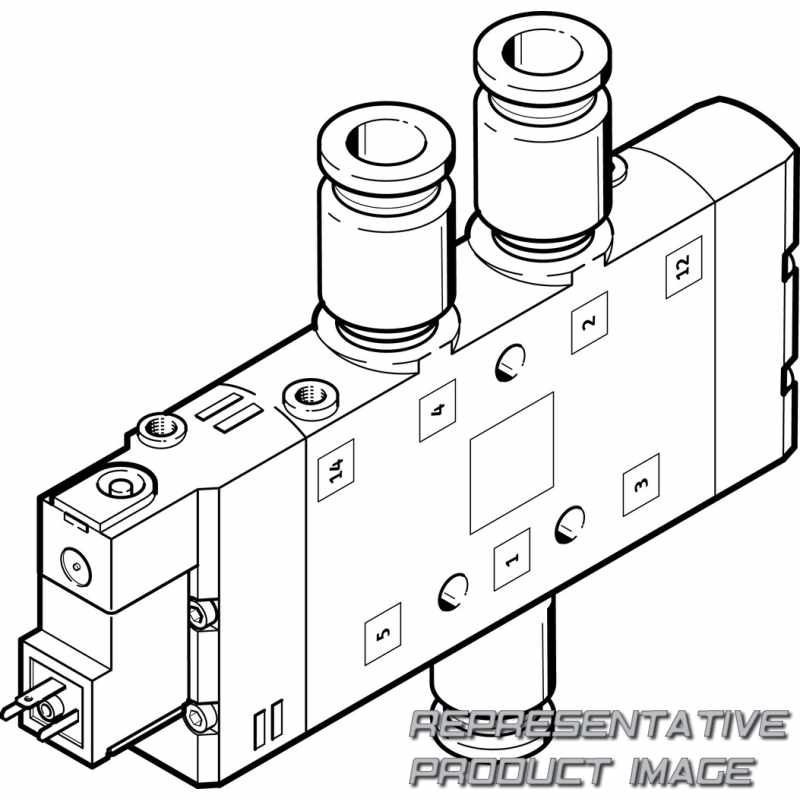

FESTO 163174 solenoid valve

Name: 163174 FESTO
Brand: FESTO
SKU: 681733-en-gbp
Price: 199.47 GBP
Availability: InStock

CPE24-M1H-5L-QS-10

£199.47

2 pcs. with 1 to 3 days delivery to United States

Specifications

Series (CPE)	Solenoid valve, Compact Performance
Width (24)	24 mm
Nominal operating voltage (M1)	24 V DC
Electrical connection (H)	Plug pattern ZC

Material housing		Die-cast aluminium
Note on materials		RoHS-compliant
Pneumatic connection, port 4		QS-10
Pneumatic connection, port 2		QS-10
Pilot air port 14		M5
Pilot exhaust port 84		M5
Type of mounting		With through-hole
Ambient temperature		-5 °C ... 50 °C
Corrosion resistance class CRC		2 - Moderate corrosion stress
Vibration resistance		Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Characteristic coil data		24 V DC: 1.5 W
Max. positive test pulse with 0 signal		3.300 µs
Switching time on		40 ms
lap		Positive overlap
Symbol		00991023
Pilot air supply		Internal
Manual override		Detenting via accessory Non-detenting
Sealing principle		Soft
Nominal size		11 mm
Maritime classification		See certificate
Type of reset		Pneumatic spring
Operating pressure		2,5 bar ... 10 bar
pneumatic working port		QS-10
Construction width		24 mm
Valve function		5/2-way, monostable

Material seals		NBR
Pneumatic connection, port 5		G3/8
Pneumatic connection, port 3		G3/8
Pneumatic connection, port 1		QS-10
Pilot air port 12		M5
Pilot exhaust port 82		M5
Electrical connection		Type C
Media temperature		-5 °C ... 50 °C
Shock resistance		Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Permissible voltage fluctuations		-15%/+10%
Max. negative test pulse with 1 signal		3.100 µs
Duty cycle		100%
Switching time off		50 ms
Valve position code		Inscription label holder
Flow direction		Non-reversible
Type of piloting		Pilot actuated
Mounting position		optional
Exhaust-air function		With flow control option
Degree of protection		IP65 With plug socket To IEC 60529
Approval		c UL us - Recognized (OL)
Design		Piston gate valve
Operating voltage		24V DC
Standard nominal flow rate		1.250 l/min
Type of actuation		Electric
