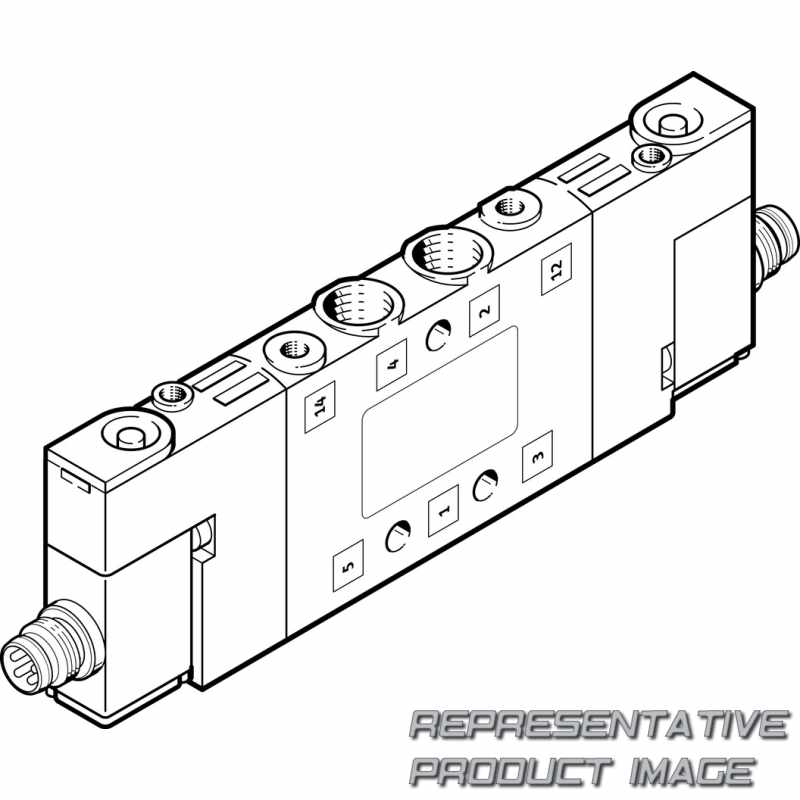

FESTO 550226 solenoid valve

Name: 550226 FESTO
Brand: FESTO
SKU: 672367-en-gbp
Price: 200.29 GBP
Availability: InStock

CPE10-M1CH-5JS-M7

£200.29

2 pcs. with 1 to 3 days delivery to United States

Specifications

Series (CPE)	Solenoid valve, Compact Performance
Width (10)	10 mm
Nominal operating voltage (M1)	24 V DC
Electrical connection (CH)	Plug M8x1

Material housing		Die-cast aluminium
Note on materials		RoHS-compliant
Pneumatic connection, port 4		M7
Pneumatic connection, port 2		M7
Pilot air port 14		M3
Pilot exhaust port 84		M3
Type of mounting		With through-hole
Product weight		68 g
Ambient temperature		-5 °C ... 50 °C
Media temperature		-5 °C ... 50 °C
Shock resistance		Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Permissible voltage fluctuations		-15%/+10%
Max. negative test pulse with 1 signal		900 µs
Duty cycle		100%
Pilot pressure		2,5 bar ... 8 bar
Valve position code		Inscription label holder
Flow direction		Reversible
Type of piloting		Pilot actuated
Mounting position		optional
Exhaust-air function		With flow control option
Degree of protection		IP65 IP67 With plug socket To IEC 60529
Design		Piston gate valve
Operating voltage		24V DC
Standard nominal flow rate		350 l/min
Type of actuation		Electric

Material seals		NBR
Pneumatic connection, port 5		M7
Pneumatic connection, port 3		M7
Pneumatic connection, port 1		M7
Pilot air port 12		M3
Pilot exhaust port 82		M3
Electrical connection		4-pin M8x1
Max. tightening torque connector		0,4 Nm
Pilot medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Corrosion resistance class CRC		2 - Moderate corrosion stress
Vibration resistance		Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Characteristic coil data		24 V DC: 1.28 W
Max. positive test pulse with 0 signal		1.200 µs
Switching time reversal		8 ms
lap		Positive overlap
Symbol		00991016
Pilot air supply		External
Manual override		Detenting via accessory Non-detenting
Sealing principle		Soft
Nominal size		4 mm
Maritime classification		See certificate
Operating pressure		-0,9 bar ... 10 bar
pneumatic working port		M7
Construction width		10 mm
Valve function		5/2 double solenoid
