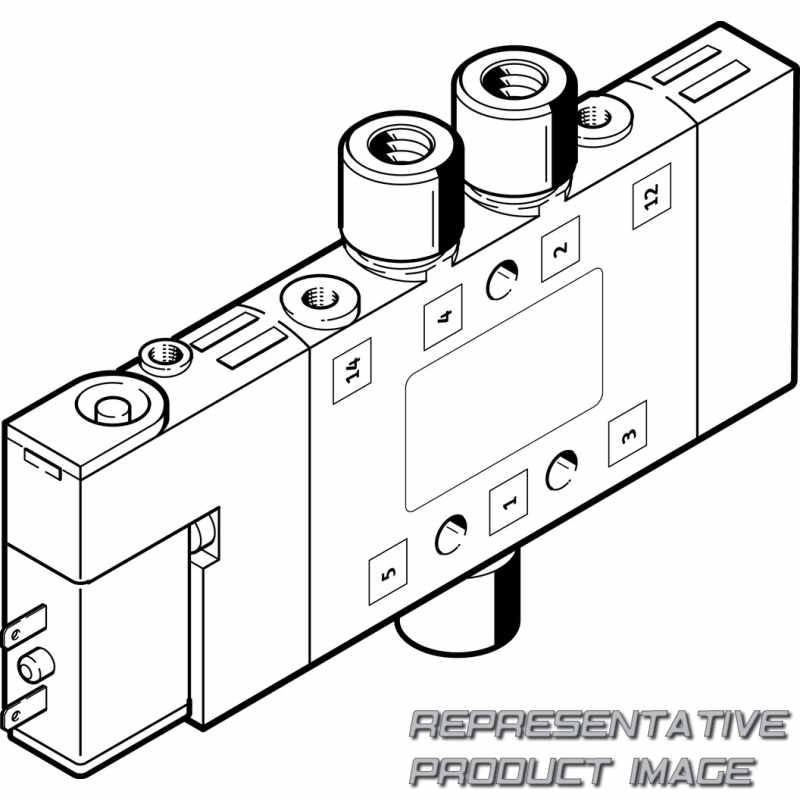

FESTO 196884 solenoid valve

Name: 196884 FESTO
Brand: FESTO
SKU: 666325-en-gbp
Price: 145.45 GBP
Availability: InStock

CPE10-M1BH-5LS-M5

£145.45 ~~£158.93~~ -8%

2 pcs. with 1 to 3 days delivery to United States

Specifications

Series (CPE)	Solenoid valve, Compact Performance
Width (10)	10 mm
Nominal operating voltage (M1)	24 V DC
Electrical connection (BH)	Plug pattern ZC

Material housing		Die-cast aluminium
Note on materials		RoHS-compliant
Pneumatic connection, port 4		M5
Pneumatic connection, port 2		M5
Pilot air port 14		M3
Pilot exhaust port 84		M3
Type of mounting		With through-hole
Ambient temperature		-5 °C ... 50 °C
Media temperature		-5 °C ... 50 °C
Shock resistance		Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Permissible voltage fluctuations		-15%/+10%
Max. negative test pulse with 1 signal		900 µs
Duty cycle		100% in conjunction with holding current reduction
Switching time off		20 ms
lap		Positive overlap
Symbol		00991026
Pilot air supply		External
Manual override		Detenting via accessory Non-detenting
Sealing principle		Soft
Nominal size		4 mm
Maritime classification		See certificate
Type of reset		Pneumatic spring
Operating pressure		-0,9 bar ... 10 bar
pneumatic working port		M5
Construction width		10 mm
Valve function		5/2-way, monostable

Material seals		NBR
Pneumatic connection, port 5		M7
Pneumatic connection, port 3		M7
Pneumatic connection, port 1		M5
Pilot air port 12		M3
Pilot exhaust port 82		M3
Electrical connection		2-pin
Pilot medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Corrosion resistance class CRC		2 - Moderate corrosion stress
Vibration resistance		Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Characteristic coil data		24 V DC: 1.28 W
Max. positive test pulse with 0 signal		1.200 µs
Switching time on		16 ms
Pilot pressure		3 bar ... 8 bar
Valve position code		Inscription label holder
Flow direction		Reversible
Type of piloting		Pilot actuated
Mounting position		optional
Exhaust-air function		With flow control option
Degree of protection		IP65 With plug socket To IEC 60529
Approval		c UL us - Recognized (OL)
Design		Piston gate valve
Operating voltage		24V DC
Standard nominal flow rate		180 l/min
Type of actuation		Electric
