| Fuse capacity of outputs | no | ||
| Current rating per output | 200 mA | ||
| Max. nominal input current | 0,03 A | ||
| Features of logic input | Galvanically isolated | ||
| Operator controls | None | ||
| Electrical connection | Screw terminal Straight plug | ||
| Wire ends | Wire end sleeve | ||
| Note on materials | RoHS-compliant | ||
| Product weight | 75 g | ||
| Degree of protection | IP20 In assembled state | ||
| Storage temperature | -25 °C ... 55 °C | ||
| Certificate issuing authority | 01/205/5165.02/19 TÜV Rheinland | ||
| Approval | German Technical Control Board (TÜV) | ||
| Diagnostic coverage | 97 % | ||
| Safety Integrity Level (SIL) | Safe torque off (STO)/SIL 3/SILCL 3 | ||
| SFF Safe Failure Fraction | 99,2 % | ||
| Proof test interval | 20 y | ||

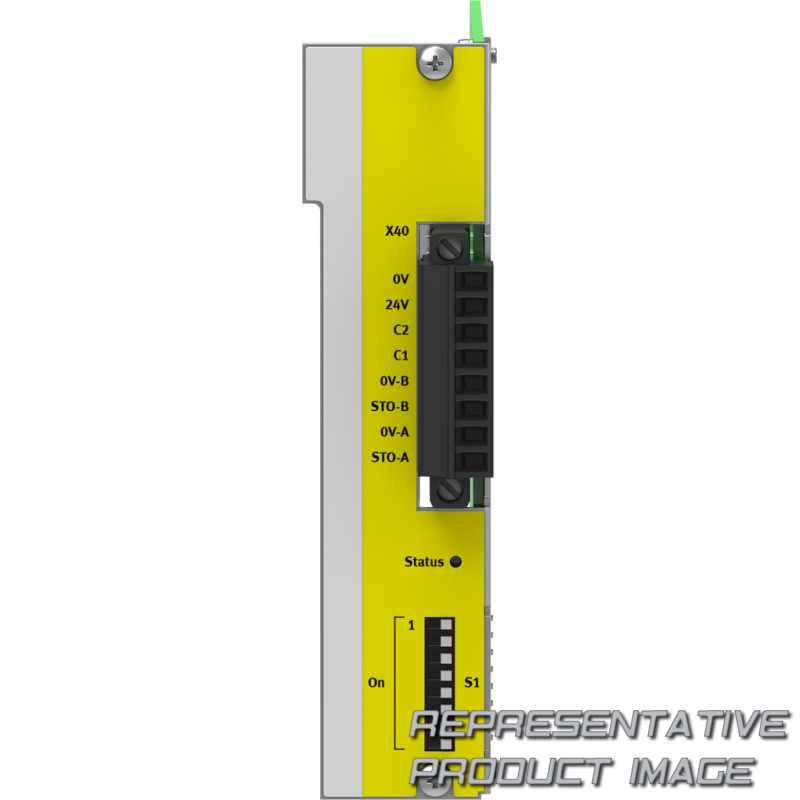

| LED display, product-specific | Normal operation (green)/STO (yellow) | ||
| Digital outputs, switching logic | Contact closes at STO | ||
| Digital output design | Potential-free signal contact | ||
| Current rating at 40°C | 0,2 A | ||
| Current consumption of logic power supply without clamping brake | 0,03 A | ||
| Nominal current logic power supply | 0,02 A | ||
| Nominal voltage for logic power supply DC | 24 V |
| Max. current digital logic outputs | 200 mA | ||
| Debounce time for inputs | 0,3 ms | ||
| Working range of logic input | 19,2 V ... 28,8 V | ||
| Specification logic input | Based on IEC 61131-2 | ||
| Display | Green/yellow LED | ||
| Connection cross section | 0,25 mm² ... 0,5 mm² | ||
| Mounting position | optional | ||

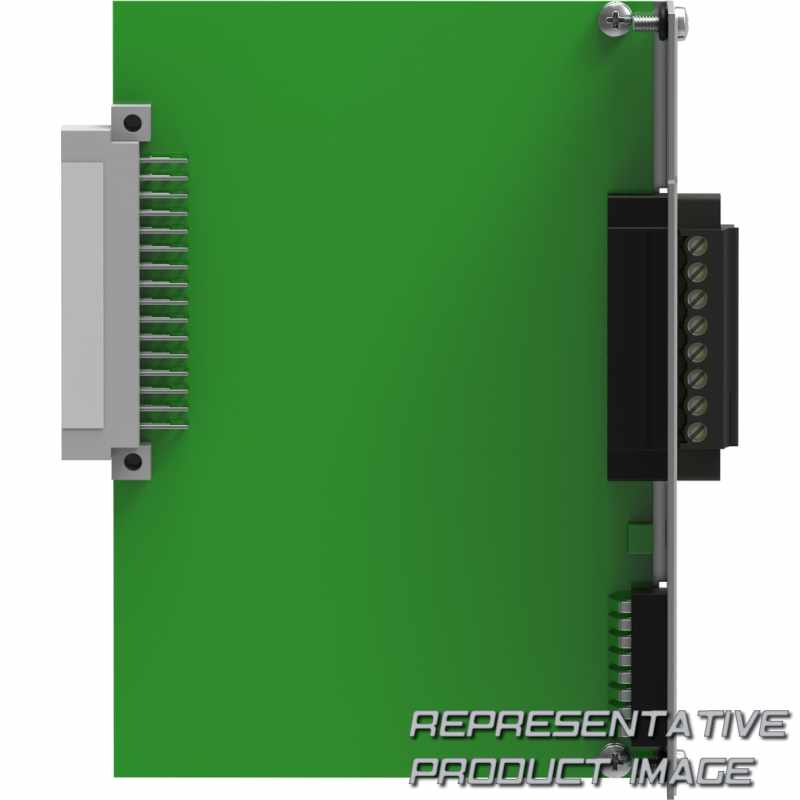

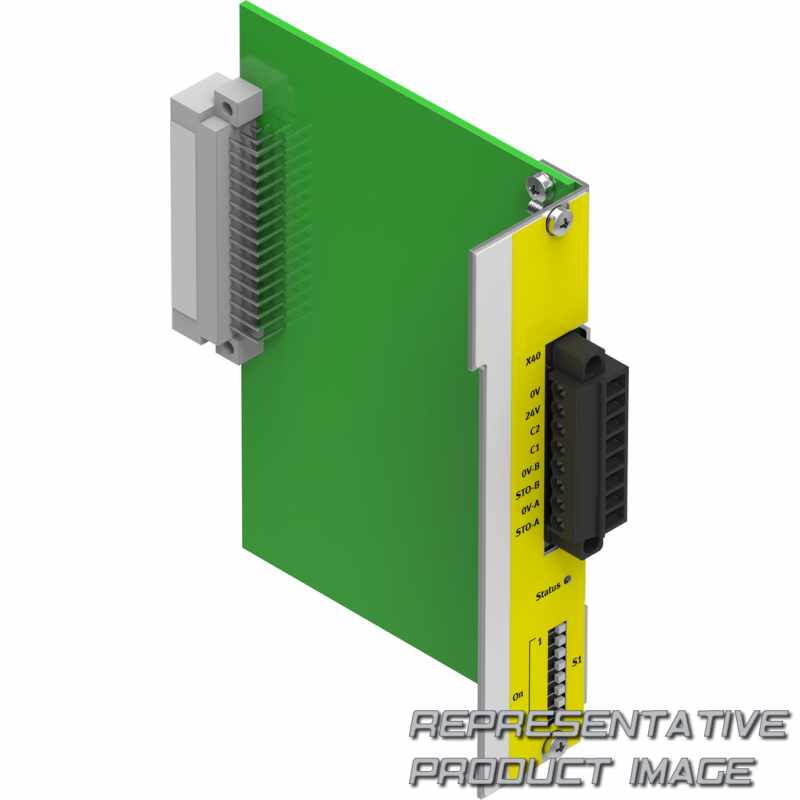

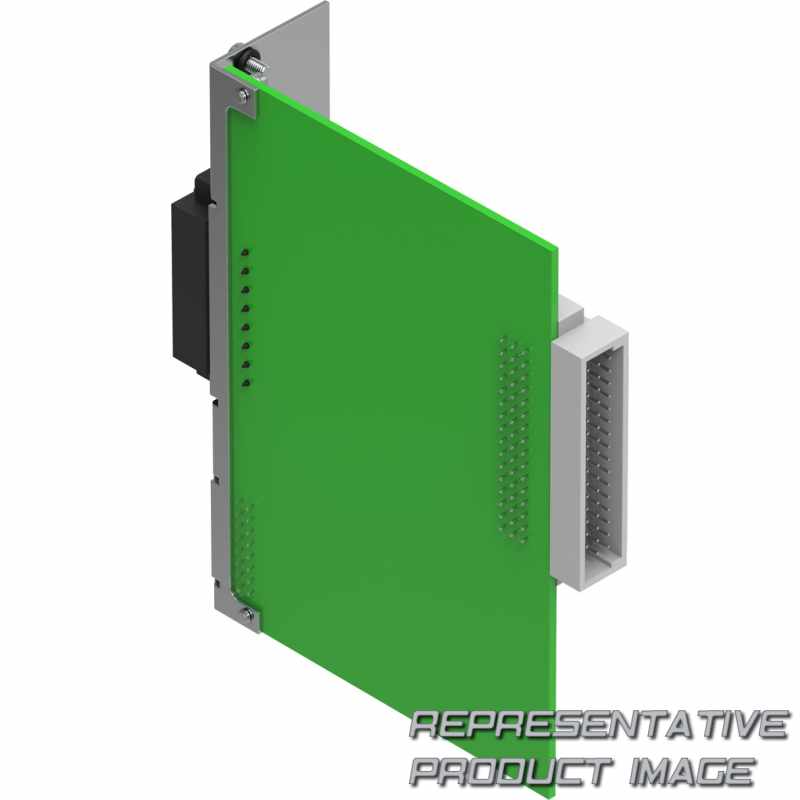

| Type of mounting | Plug-in module for CMMP-AS...-M3 | ||
| Ambient temperature | 0 °C ... 40 °C | ||
| Relative air humidity | 5 - 95% Non-condensing | ||
| LABS (PWIS) conformity | VDMA24364 zone III | ||
| CE mark (see declaration of conformity) | To EU EMC Directive To EC Machinery Directive In accordance with EU RoHS Directive | ||
| Certified for safety functions to ISO 13849 (PL) | Product can be used in SRP/CS up to category 4, PL e | ||
| Performance Level (PL) | Safe Torque Off (STO)/category 4, performance level e | ||
| Certified for safety function to ISO 13849 and IEC 61508 (SIL) | Product can be used in SRP/CS up to SIL 3 (high demand) | ||
| Hardware fault tolerance | 1 | ||
| Safety function | Safe torque off (STO) | ||
| Dimensions (W x L x H) | 112.6 x 87.2 x 28.3 mm | ||
| Number of digital logic inputs | 2 | ||
| Fuse protection (short circuit) | no | ||
| Short circuit current rating | no | ||
| Permissible range for logic voltage | ± 20 % | ||
| Nominal operating voltage DC | 24 V |
