| Additional functions | AddressConflictDetection (ACD) Integrated switch | ||
| Configuration support | EDS | ||
| Min. cycle time | 1 ms | ||
| IP address allocation | FCT DHCP BOOTP DIP switch | ||
| Topologies | Star Ring Line | ||
| Communication profile | FHPP | ||
| Mounting position | optional | ||

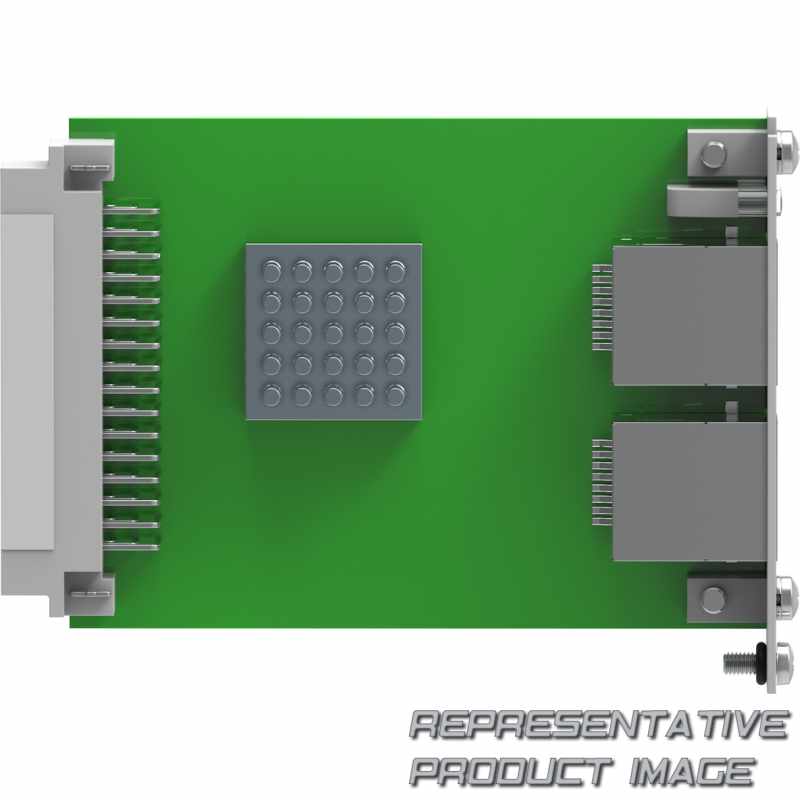

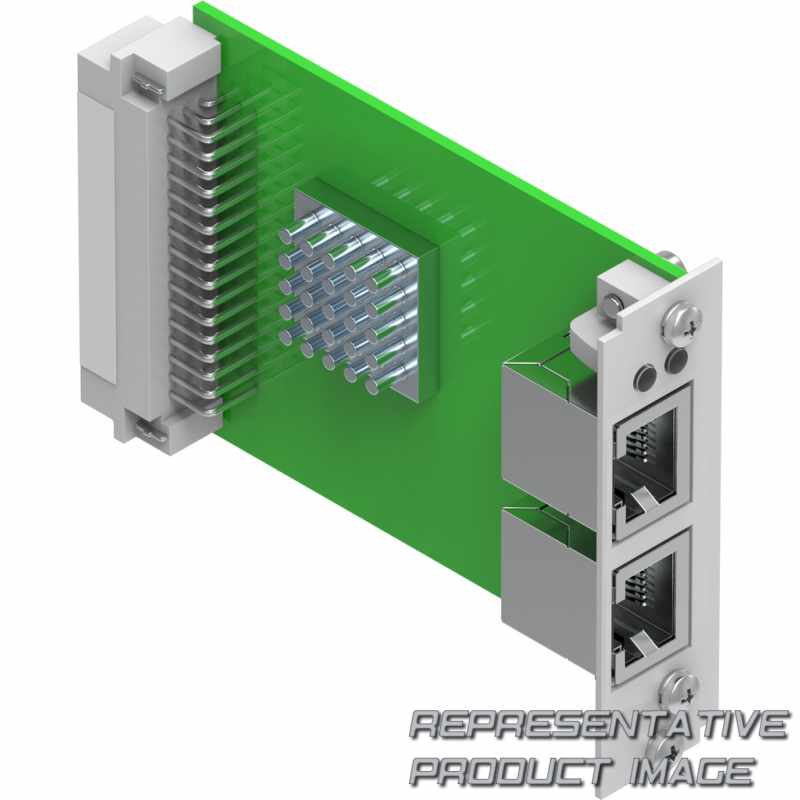

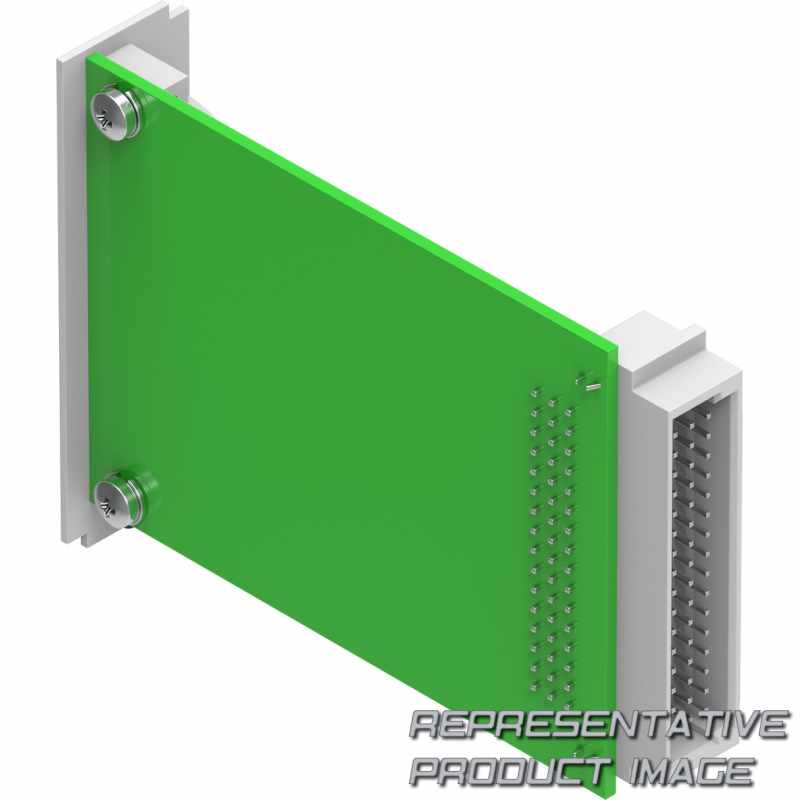

| Type of mounting | Plug-in module for CMMP-AS...-M3 | ||
| Ambient temperature | 0 °C ... 50 °C | ||
| Relative air humidity | 5 - 95% Non-condensing | ||
| LABS (PWIS) conformity | VDMA24364 zone III | ||
| Dimensions (W x L x H) | 19 x 90 x 65 mm |
| Parameterisation | FCT | ||
| LED display | Ethernet communication activity Ethernet line monitoring Module status Network status | ||

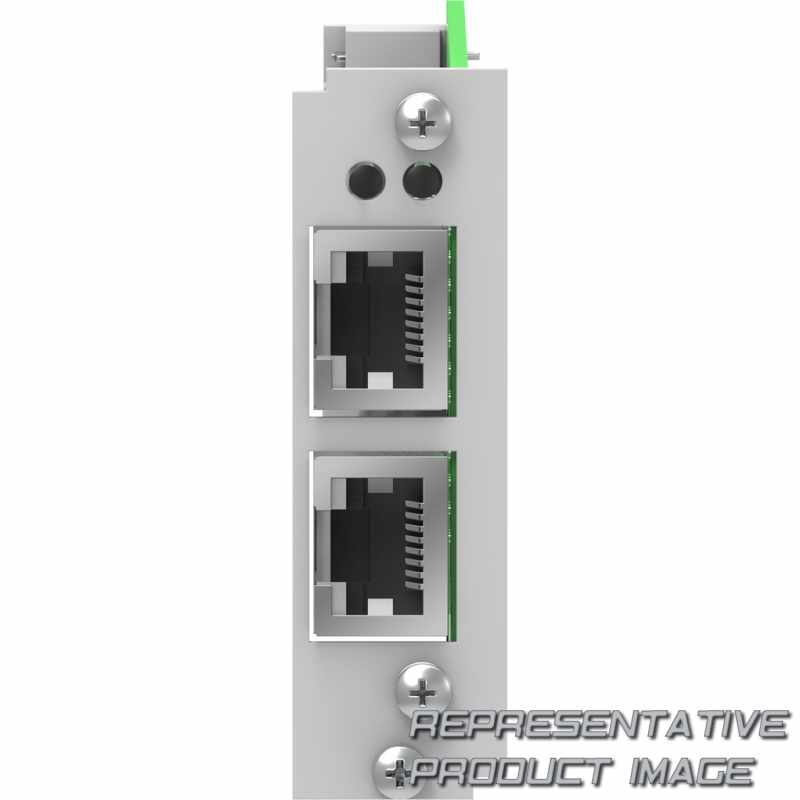

| Field bus interface | 2x RJ45 socket | ||
| Media redundancy | DLR | ||
| Baud rate | 10/100 Mbit/s (full/half) | ||
| Protocol | EtherNet/IP | ||
| Note on materials | RoHS-compliant | ||
| Product weight | 75 g | ||
| Degree of protection | IP20 In assembled state | ||
| Storage temperature | -25 °C ... 70 °C | ||
| CE mark (see declaration of conformity) | To EU EMC Directive |
