| Material housing | Aluminium | ||
| Pneumatic connection, port 2 | G1/8 | ||
| Type of mounting | With through-hole | ||
| Product weight | 680 g | ||
| Media temperature | -10 °C ... 60 °C | ||
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] | ||
| Power consumption, pull | 30 W | ||
| Type of piloting | Direct | ||
| Sealing principle | Soft | ||
| Degree of protection | IP65 | ||
| Design | Poppet valve with spring return | ||
| pneumatic working port | G1/8 | ||
| Type of actuation | Electric |
| Pneumatic connection, port 3 | G1/8 | ||
| Pneumatic connection, port 1 | G1/4 | ||
| Electrical connection | Plugs | ||
| Ambient temperature | -5 °C ... 40 °C | ||
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) | ||
| Power consumption, hold | 22 W | ||

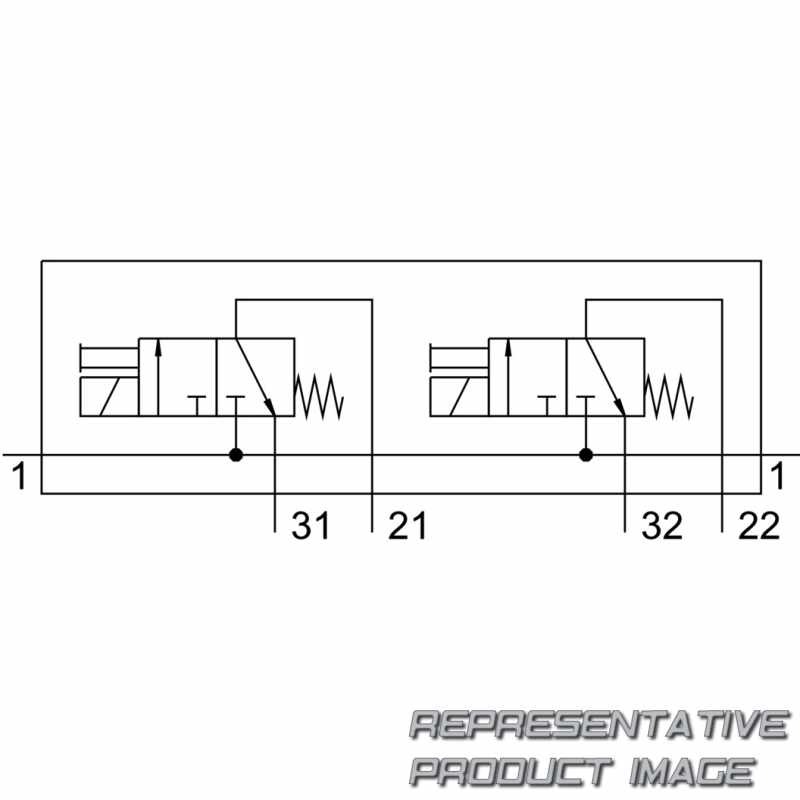

| Symbol | 00995421 | ||
| Max. number of valve positions | 2 | ||
| Nominal size | 2,5 mm | ||
| Type of reset | Mechanical spring | ||
| Operating pressure | -0,95 bar ... 7 bar | ||
| Standard nominal flow rate | 160 l/min | ||
| Valve function | 2x3/2-way, monostable, closed |
