| Weight | 9.85142 lb | ||
| Construction | internal pilot relieving type (pilot air is always bleeding.) | ||
| pressure gauge port size | 1/4 | ||
| set pressure range (mpa) (1) | 0.02 to 0.2 | ||
| proof pressure | 1.5 mpa | ||
| Port size | 2 |
| mass (kg) | 4.50 | ||
| ambient and fluid temperature | ?5 to 60c (no freezing) | ||
| air consumption (for bleed hole) (2) | 5 l/min (anr) (at maximum pressure) | ||
| max. operating pressure | 1.0 mpa | ||
| fluid | air | ||

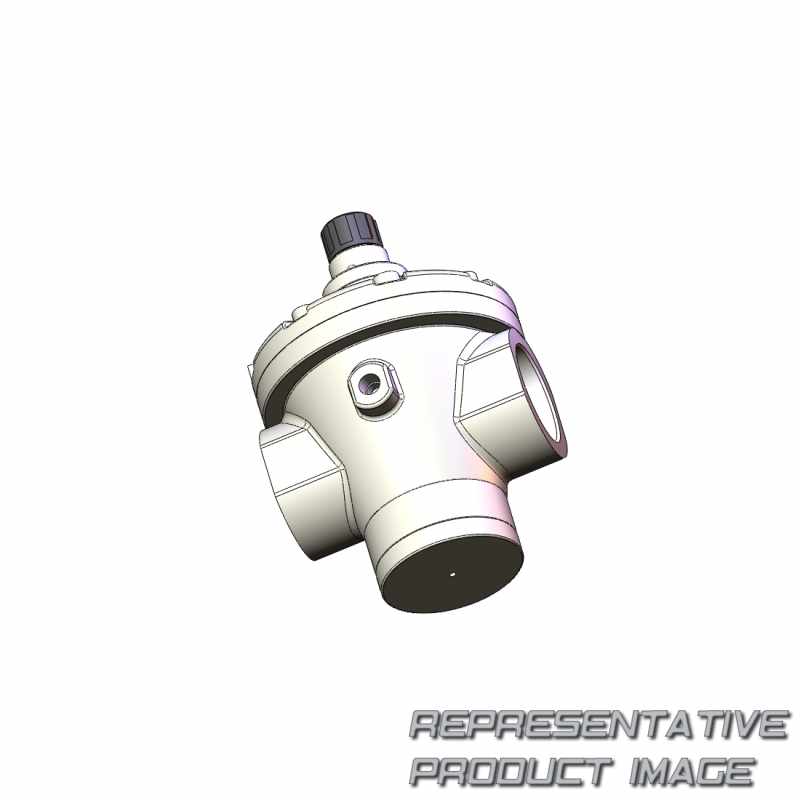

| model | ar935 |
