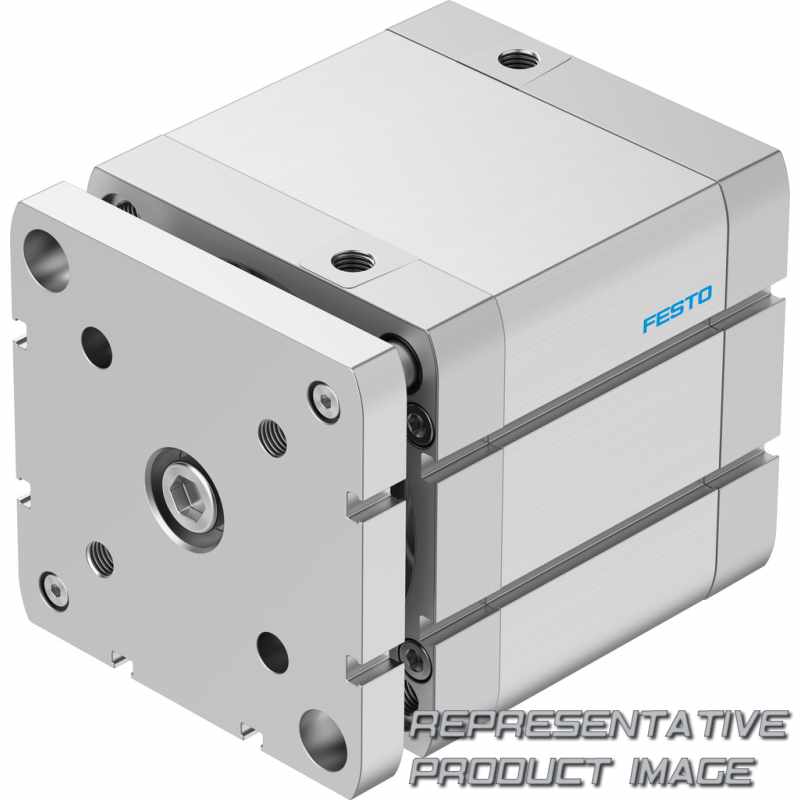

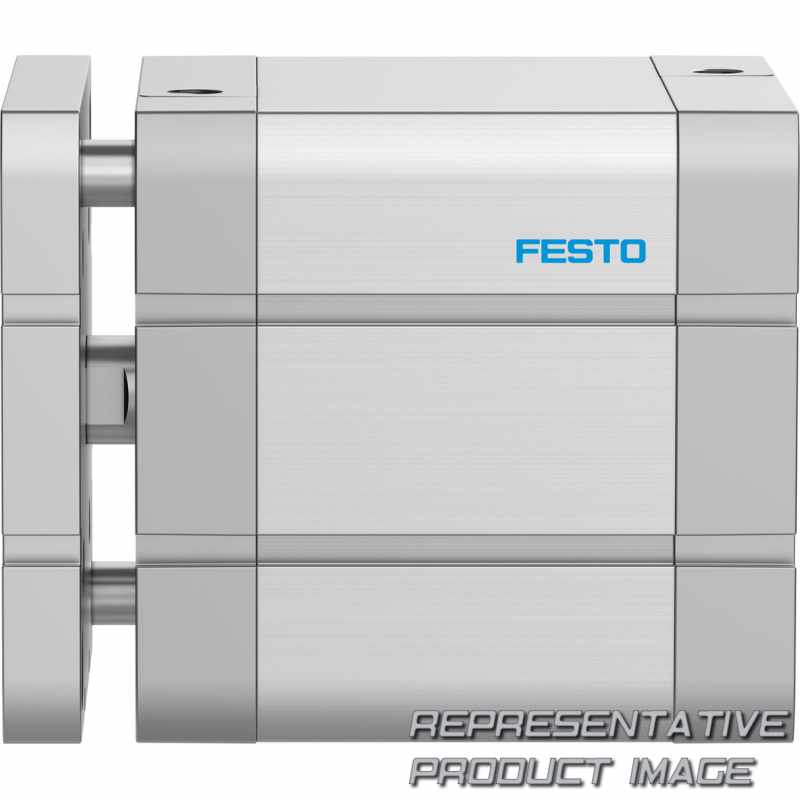

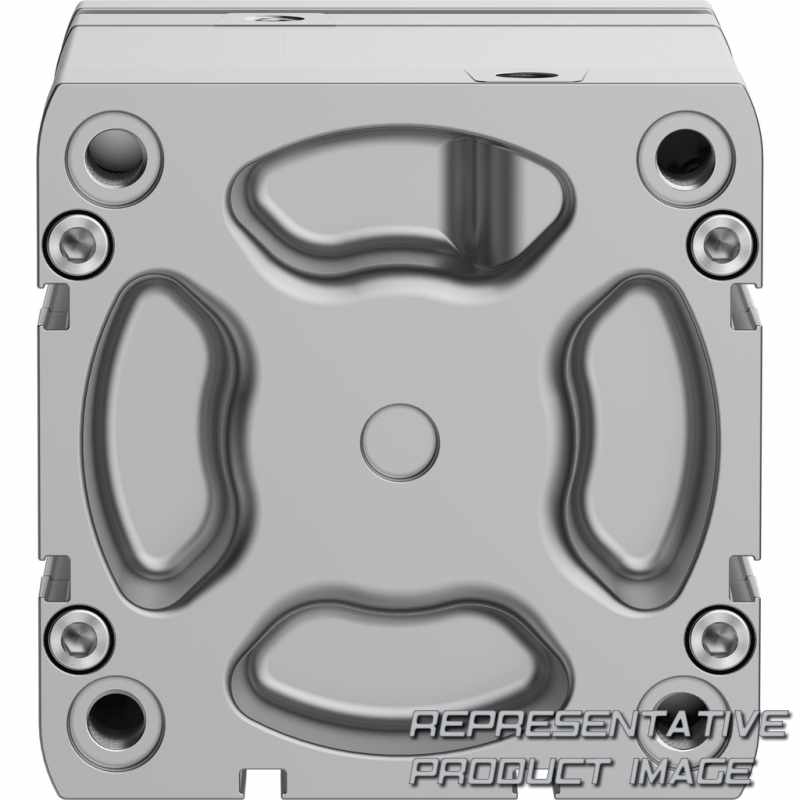

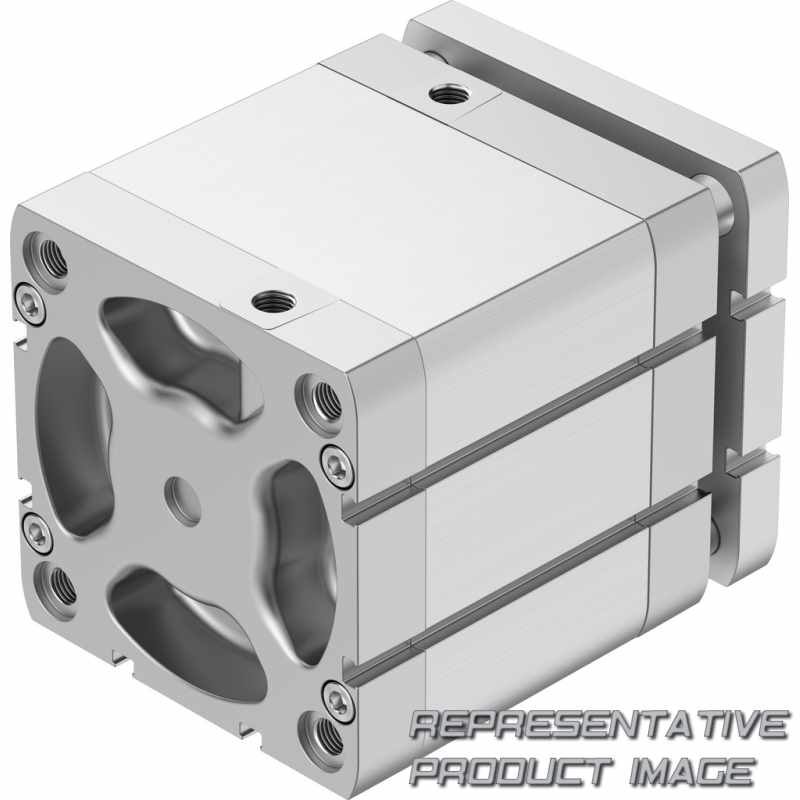

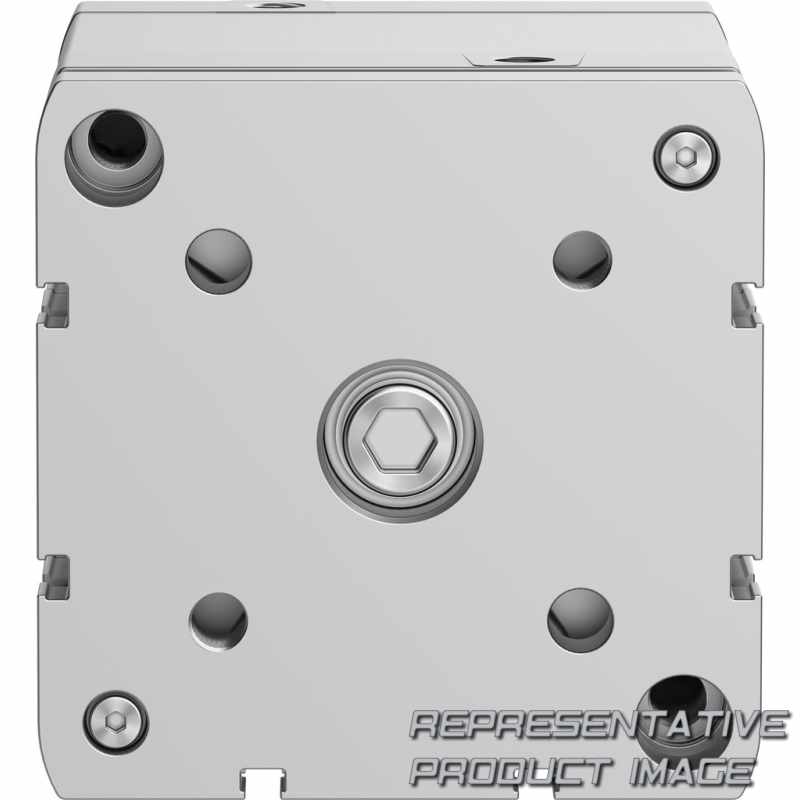

| Material cylinder barrel | Wrought aluminium alloy Smooth anodised | ||
| Material seals | TPE-U(PUR) | ||
| Note on materials | RoHS-compliant | ||
| Additional weight per 10 mm stroke | 116 g | ||
| Additional moving mass per 10 mm stroke | 43 g | ||
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke | 4.712 N | ||
| Cushioning length | 10 mm | ||
| Ambient temperature | -20 °C ... 80 °C | ||
| Corrosion resistance class CRC | 2 - Moderate corrosion stress | ||
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] | ||
| Operating pressure | 1,4 bar ... 10 bar | ||
| Position detection | Via proximity switch | ||
| Mounting position | optional | ||
| Based on standard | ISO 21287 | ||
| Stroke | 50 mm |
| Material piston rod | High-alloy steel | ||
| Material cover | Die-cast aluminium, coated | ||
| Pneumatic connection | G1/8 | ||
| Basic weight for 0 mm stroke | 2.673 g | ||
| Moving mass for 0 mm stroke | 1.089 g | ||
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke | 4.524 N | ||
| Impact energy in end positions | 2,5 J | ||
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | ||
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) | ||
| Mode of operation | Double-acting | ||
| Protection against torque/guide | Guide rod with yoke | ||
| Design | Piston Piston rod Profile barrel | ||
| Cushioning | Self-adjusting pneumatic end-position cushioning | ||
| Piston diameter | 100 mm |
