| Weight | 2.866 lb | ||
| regulator construction | relieving type | ||
| bowl material | polycarbonate | ||
| rated flow (l/min (anr)) note 1) | 800 | ||
| set pressure range | 0.05 to 0.7 mpa | ||
| maximum operating pressure | 1.0 mpa | ||
| ambient and fluid temperature | ? 5 to 60c (with no freezing) | ||
| pressure gauge port size | 1/8 | ||
| component - mist separator | afm40-a | ||

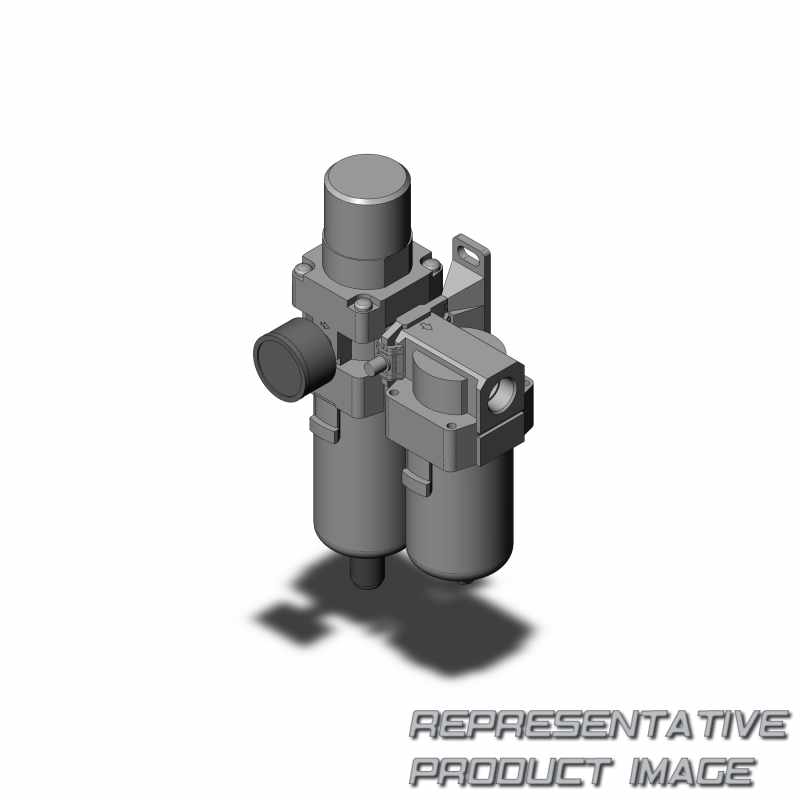

| model | ac40d-a |
| weight (kg) | 1.22 | ||
| Bowl guard | standard (polycarbonate) | ||
| outlet side oil mist concentration | max 1.0 mg/m3 (anr) ( 0.8 ppm) note 2) note 3) | ||
| nominal filtration rating | aw: 5 ?m, afm: 0.3 ?m (99.9% filtered particle size) | ||
| minimum operating pressure | 0.05 mpa | ||
| proof pressure | 1.5 mpa | ||
| fluid | air | ||
| Port size | 1/4, 3/8, 1/2 | ||
| component - filter regulator | aw40-a |
