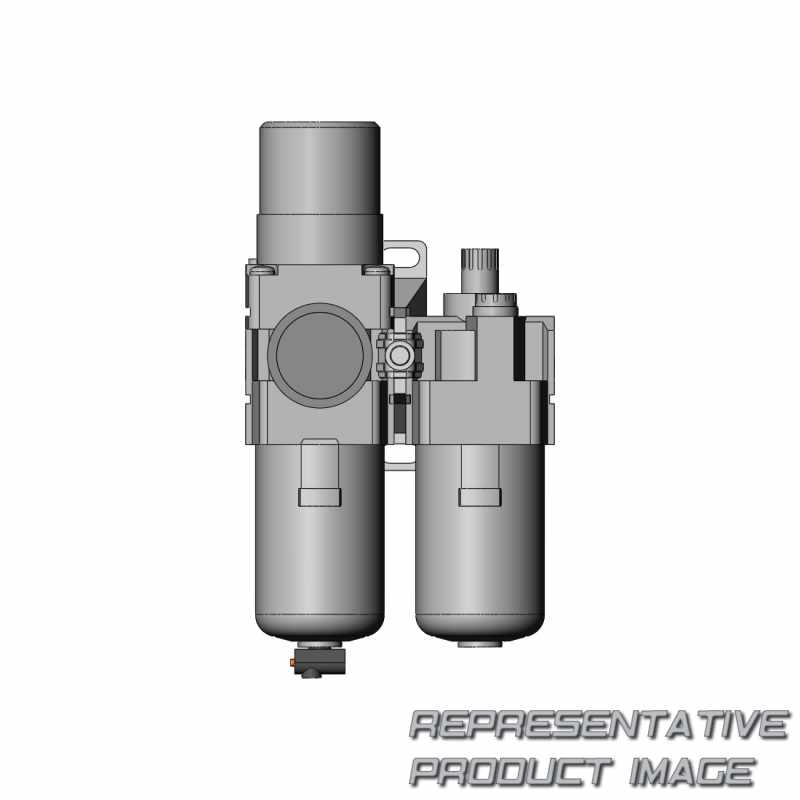

| model | ac30a-a | ||
| component - lubricator | al30-a | ||
| pressure gauge port size | 1/8 | ||
| ambient and fluid temperature | ? 5 to 60c (with no freezing) | ||
| maximum operating pressure | 1.0 mpa | ||
| nominal filtration rating | 5 ?m | ||
| bowl material | polycarbonate | ||
| regulator construction | relieving type | ||
| Weight | 2.42508 lb |
| component - filter regulator | aw30-a | ||
| Port size | 1/4, 3/8 | ||
| fluid | air | ||
| proof pressure | 1.5 mpa | ||
| set pressure range | 0.05 to 0.7 mpa | ||
| recommended lubricant | class 1 turbine oil (iso vg32) | ||
| Bowl guard | standard (polycarbonate) | ||
| weight (kg) | 0.66 |
