AVENTICS 8985121472

Name: 8985121472 AVENTICS
Brand: AVENTICS
SKU: 814389-en-gbp
Price: 36.19 GBP
Availability: InStock

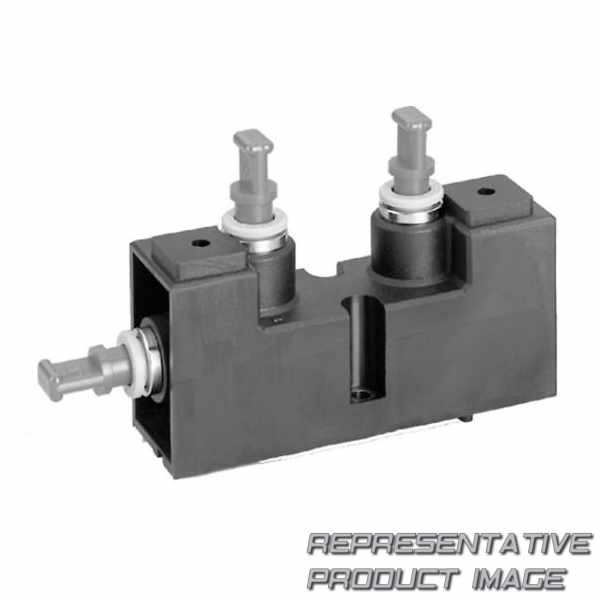

CD01-R-P-S-PLATTE-8X1

£36.19 ~~£53.26~~ -32%

available with 7 to 15 days delivery to United States

Specifications

max. pressure	16 bar

Seal	acrylonitrile butadiene rubber

seal material		acrylonitrile butadiene rubber
tightening torque for mounting screws		2.5 nm
Grid dimension		27 mm
Medium		compressed air
min. medium temperature		-15 °c
min. ambient temperature		-15 °c
working pressure min.		-0.95 bar
frame size		26 mm
exhaust type		ports separated
direction of pneumatic port (3,5)		up
direction of pneumatic port (1)		on the side

Material base plate		polyamide fiber-glass reinforced
mounting screw		with hexagon socket
Max. number of valve positions		1
max. medium temperature		50 °c
max. ambient temperature		50 °c
working pressure max		16 bar
Standards		iso 15407-1
exhaust (3,5)		with directional exhaust (3/5)
port 3 / 5		Ø 8x1
compressed air connection 1		Ø 8x1
Type		base plate
