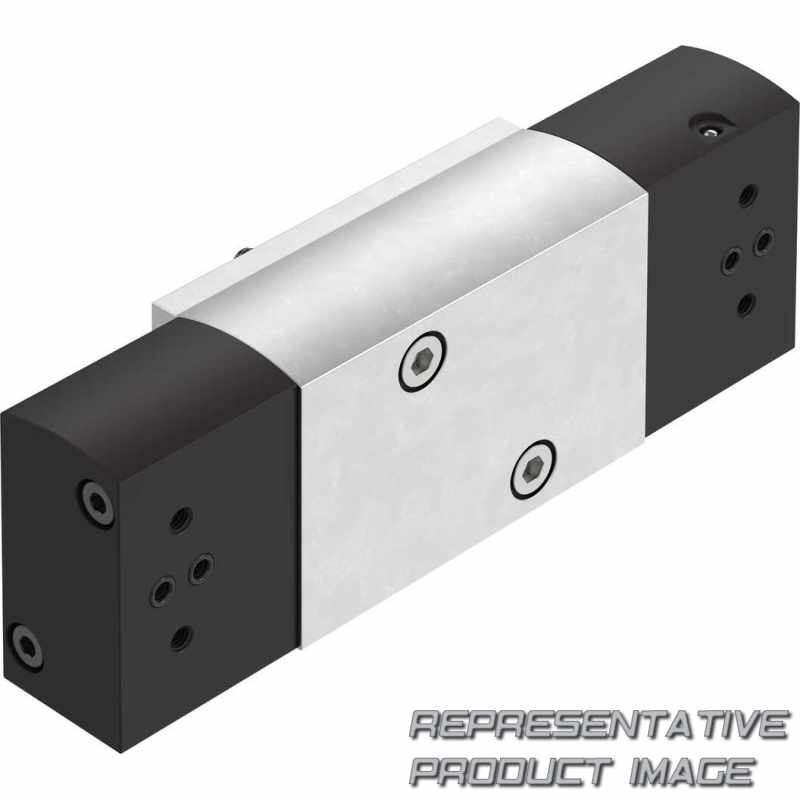

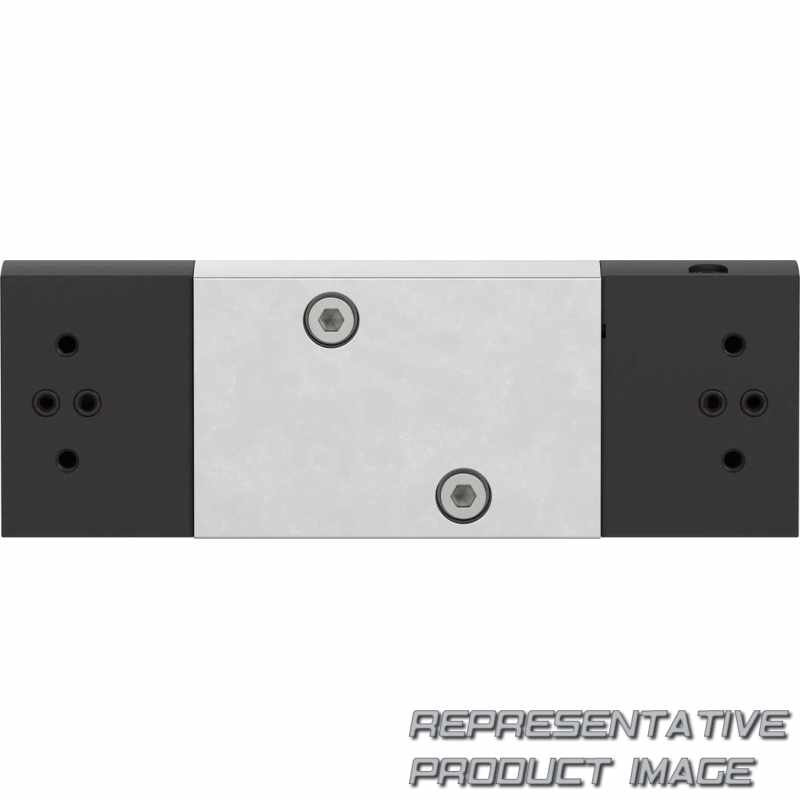

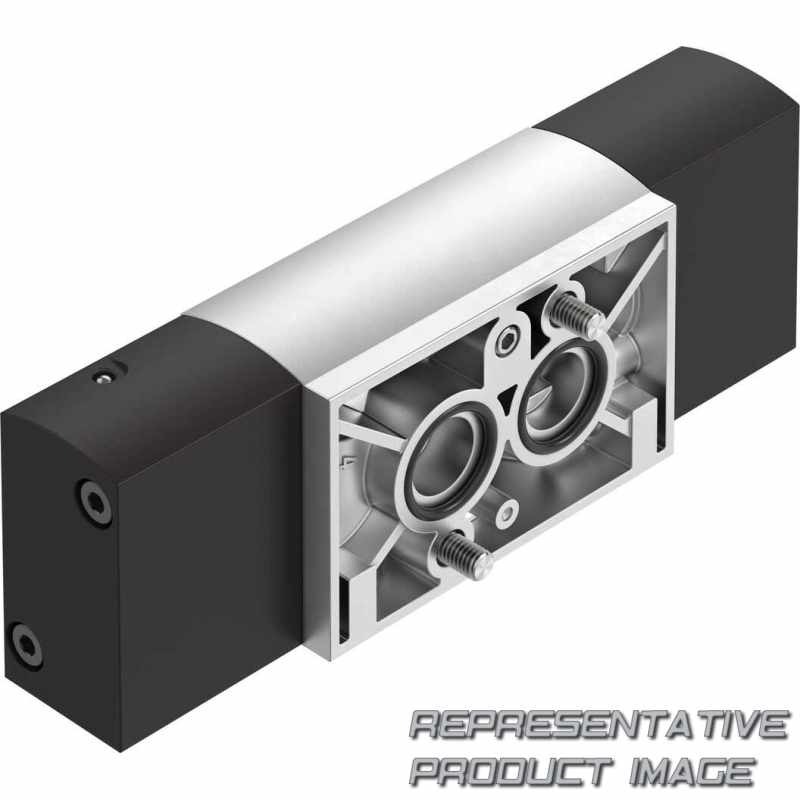

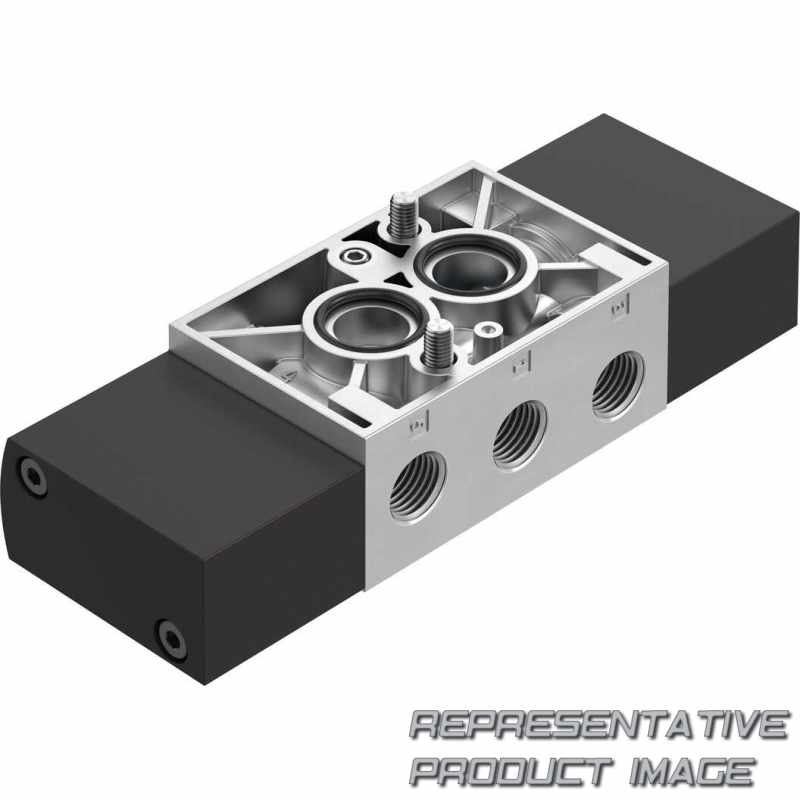

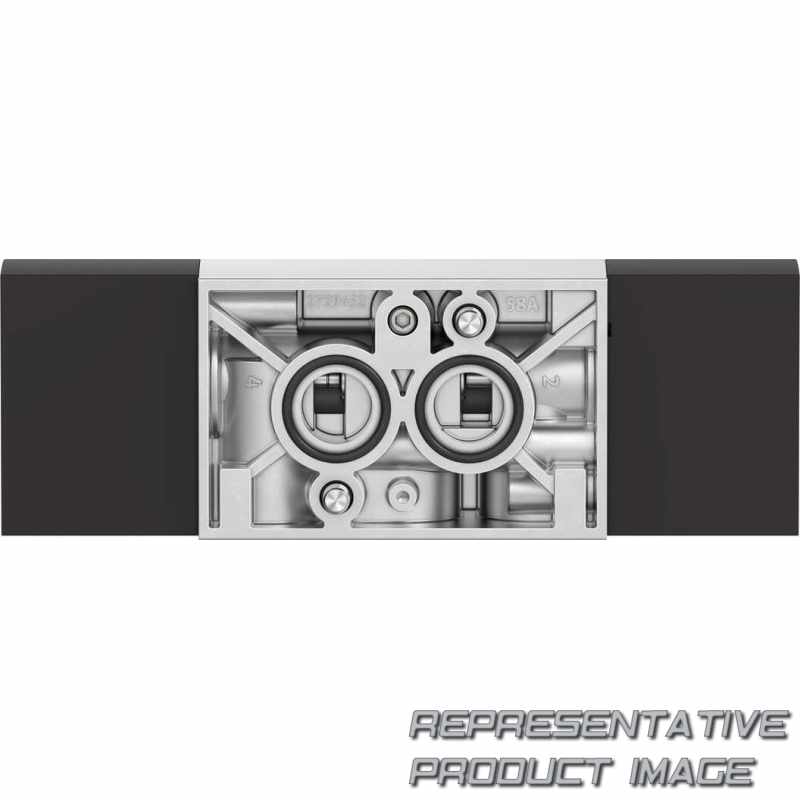

FESTO 8114684 solenoid valve

Name: 8114684 FESTO
Brand: FESTO
SKU: 712160-en-gbp
Price: 114.99 GBP
Availability: SoldOut

VSNC-F-P53E-M-G14-P2

£114.99 ~~£229.99~~ -50%

Limited stock only available on quotation

Specifications

Series (VSNC)	Solenoid valve VSNC
Directional control valve type (F)	Flanged valve
Design principle	Piston spool
Additional function	None
Valve function (P53E)	5/3-way valve, mid-position exhausted\|
Reset method for monostable/single solenoid valves (M)	Mechanical spring
Manual override	None
Pneumatic connection (G14)	G1/4
Exhaust	No fitting
Valve pilot control interface (P2)	Interface for pilot valve size 30 mm to ISO 15218 (CNOMO)

Power consumption	None
Nominal operating voltage	None
Electrical connection	None
Degree of protection, electrical system	Standard
Circuitry	None
EU certification	None
Certification	None
Type of ignition protection	None
Electrical valve accessories	None
Version	Expanded properties

Material screws		High-alloy stainless steel
Material seals		NBR
Pneumatic connection, port 5		G1/4
Pneumatic connection, port 3		G1/4
Pneumatic connection, port 1		G1/4
Type of mounting		With through-hole
Ambient temperature		-20 °C ... 60 °C
Corrosion resistance class CRC		2 - Moderate corrosion stress
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Duty cycle		100%
Switching time on		6 ms
C value		4,4 l/sbar
lap		Positive overlap
Flow direction		Non-reversible
Type of piloting		Pilot actuated
Conforms to standard		VDI/VDE 3845 (NAMUR)
Sealing principle		Soft
Type of reset		Mechanical spring
Operating pressure		3 bar ... 8 bar
pneumatic working port		NAMUR port pattern
Construction width		32 mm
Valve function		5/3 exhausted

Material housing		Wrought aluminium alloy
Note on materials		RoHS-compliant
Pneumatic connection, port 4		NAMUR port pattern
Pneumatic connection, port 2		NAMUR port pattern
Breather connection		Not ducted
Product weight		428 g
Media temperature		-20 °C ... 60 °C
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Characteristic coil data		See solenoid coil, to be ordered separately
Switching time reversal		16 ms
Switching time off		9 ms
b value		0,4
Symbol		00991021
Pilot air supply		Internal
Manual override		None
Mounting position		optional
Exhaust-air function		With flow control option
Design		Piston gate valve
Operating voltage		Via solenoid coil, must be ordered separately
Standard nominal flow rate		1.050 l/min
Type of actuation		Electric
