| motors | var motor ass'y mtr/std./n.tag | ||
| displacement | 76 : 124,8 cm3/r [7.616 in3/r] at 18 deg stroke | ||
| Design type | 0 : ball-guide (model 76) | ||
| minimum swashplate angle | m : 7 degrees | ||
| end cover and composite valve block assy | b : standard end cover, composite valve block with low-rate shuttle valve springs | ||
| charge pressure relief valve setting | b : 11 bar [160 lbf/in2] - standard | ||
| high pressure rel valve setting - port a | m : 414 bar [6000 lbf/in2] | ||
| high pressure rel valve setting - port b | m : 414 bar [6000 lbf/in2] | ||
| control orifice | g : 1,85 [.073] diameter | ||
| control special features | 0 : no special features | ||
| special features | 00 : no special features | ||
| identification on unit | 0 : standard |

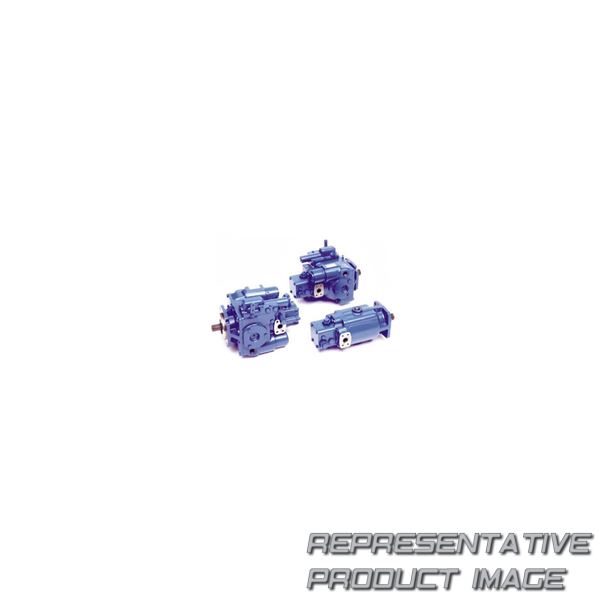

| Product identification | ace : heavy duty hydrostatic variable displacement motor | ||
| Type | 4 : variable displacement motor | ||
| output shaft | 13 : 13 tooth 8/16 pitch spline (model 76) | ||
| main ports | b : [1.00] sae 4-bolt split flange port, high pressure series (code 62) | ||
| charge press rel valve-cmpst valve block | 1 : standard | ||
| cmpst vlv blk high press rel vlv- port a | 1 : standard | ||
| cmpst vlv blk high press rel vlv- port b | 1 : standard | ||
| control | rb : pressure response | ||
| press setting for pressure response | g : 241 bar [3500 lbf/in2] | ||
| speed sensor | 0 : no speed sensor | ||
| paint and packaging | b : painted primer blue (standard) | ||
| design code | a : a |
