| design code | b : valve plate | ||
| paint | 0b : black per spec 209-13b | ||
| displacement options | 0 : as given in code title | ||
| drain ports size & location | 6 : .750-16 unf-2b sae o-ring port - top & bottom, bottom plugged (housing) and .750-16 unf-2b sae o-ring port - upper rear of unit | ||
| output shaft | aa : 13 tooth 16/32 spline, shaft extension 41.1 [1.62] | ||
| motors | 2.48 fixed motor |
| identification | 0 : standard | ||
| special features | 00 : no special features | ||
| auxiliary mounting features (rear) | 0 : none | ||
| main ports size & location | a : 1.0625-12 un-2b sae o-ring ports - side | ||

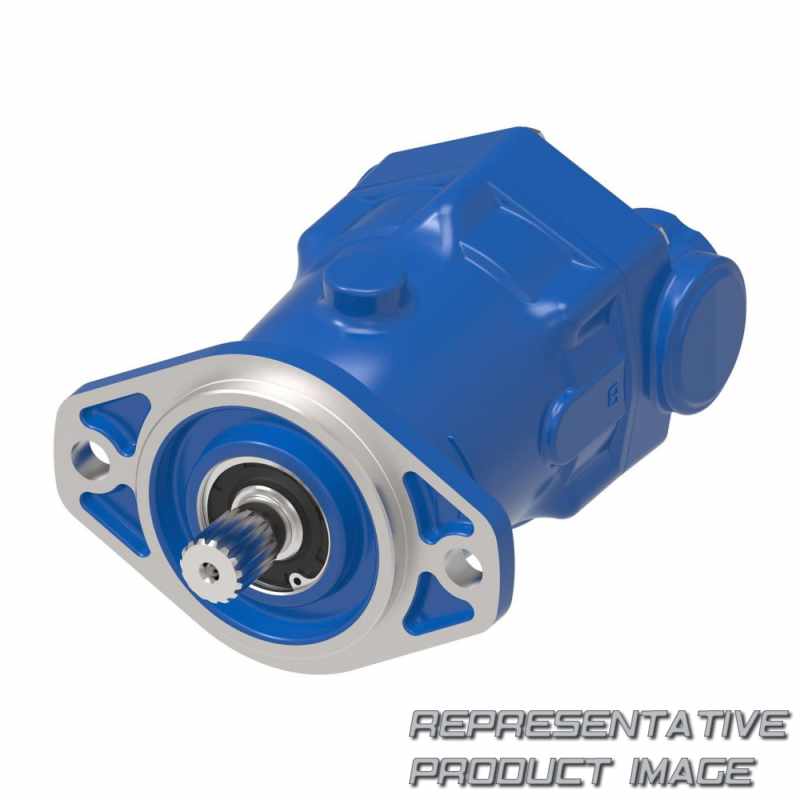

| code title | aaj : 40.6 cm3/r [2.48 in3/r] fixed displacement axial piston motor |
