| design code | b : valve plate | ||
| paint | 0a : primer per spec 209-13a | ||
| displacement options | 0 : as given in code title | ||
| drain ports size & location | a : .750-16 unf-2b sae o-ring port - top (housing) | ||
| output shaft | ab : 15 tooth 16/32 spline, shaft extension 46 [1.81] | ||
| motors | pst mtr asy |
| identification | 0 : standard | ||
| special features | ad : shuttle valve and back-pressure valve set at 15.2-17.2 bar [220-250 lbf/in2], and 2x m12 x 1.5 metric o-ring diagnostic ports | ||
| auxiliary mounting features (rear) | 0 : none | ||
| main ports size & location | d : 1.3125-12 un-2b sae o-ring ports - top | ||

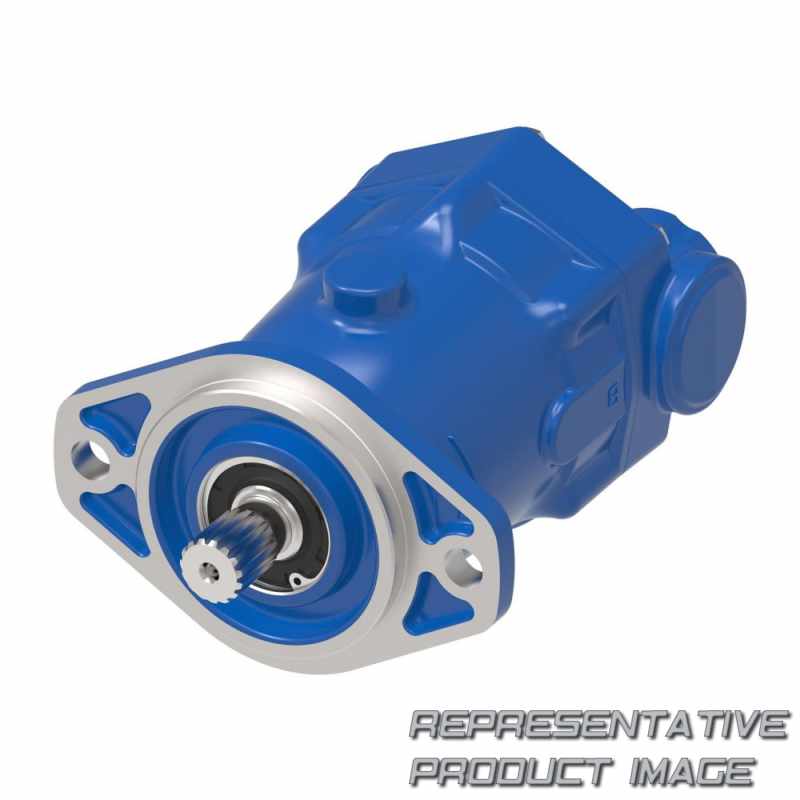

| code title | aaj : 40.6 cm3/r [2.48 in3/r] fixed displacement axial piston motor |
