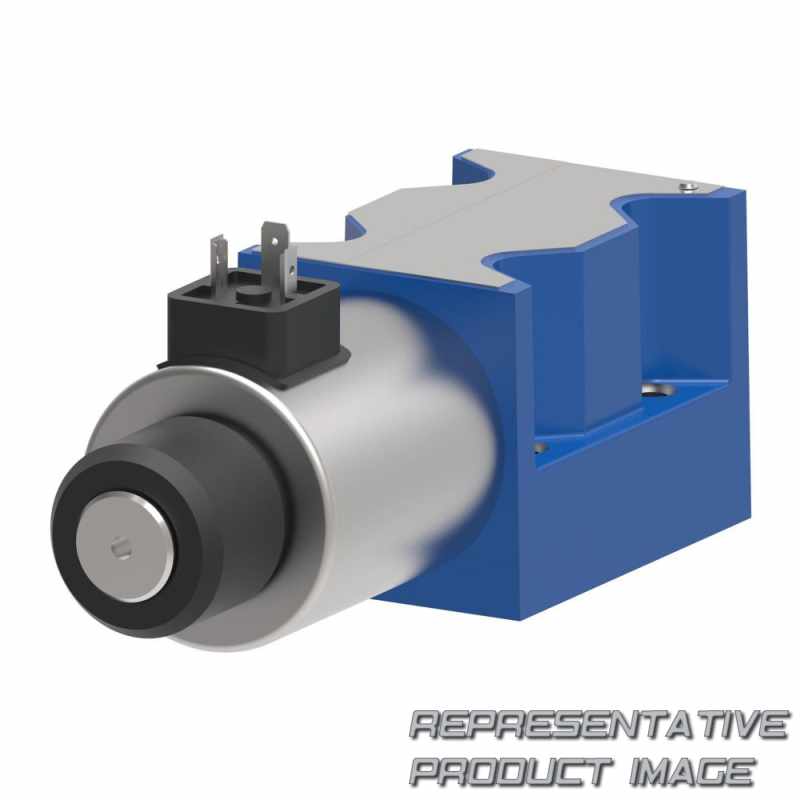

| industrial valves | dg4v-5-0al-m-u-h6-20 | ||
| valve type | dg : (dg) directional control valve with sub plate mounted | ||
| pressure rating | v : (v) 315 bar at ports a, b and p | ||
| spool type | -0 : (0) open center (all ports) | ||
| build orientation | l : (l) left hand build. solenoid at a port end | ||
| Manual override | (0) plain override in solenoid ends only | ||
| spool monitoring switch | (0) no spool position monitoring switch | ||
| coil voltage | -h : (h) 24 vdc 38 watt | ||
| design code | -20 : (20) design number |
| Seal Type | (0) standard o-rings (viton) | ||
| operation | 4 : (4) solenoid operated | ||
| interface | -5 : (5) iso-4401 size 05 | ||
| spring arrangement | a : (a) spring offset to a. single end. | ||
| spool shift control | (0) un notched spool ( just for ac models only ) | ||
| solenoid identification | -m : (m) flag with standard build as per ansi b93 9 | ||
| coil type | -u : (u) iso4400, din43650 connector | ||
| tank port rating | 6 : (6) 160 bar tank pressure rating | ||
| spool damp orifice | (0) omit if not required |
