FESTO 693719 flow control filter

Name: 693719 FESTO
Brand: FESTO
SKU: 836519-en-gbp
Price: 11.5 GBP
Availability: InStock

MS6-LRP

£11.50

1 pcs. with 1 to 3 days delivery to United States

Specifications

Pneumatic connection	G1/4 G1/2
Weight	1,000g

Material housing		Aluminium
Note on materials		RoHS-compliant
Pneumatic connection, port 2		G1/4 G1/2
Pilot air port 12		G1/8
Product weight		1.000 g
Media temperature		-10 °C ... 60 °C
Corrosion resistance class CRC		2 - Moderate corrosion stress
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4] Inert gases
Explosion ignition protection type for dust		Ex h IIIC T60°C Db X
ATEX category dust		II 2D
Explosion protection		Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX)
Approval		c UL us - Recognized (OL)
Flow rate of secondary exhaust		220 l/min ... 900 l/min
Pressure regulation range		0,05 bar ... 12 bar
Pressure gauge (ANALOG) or Pressure display (DIGITAL)		Prepared for G1/4 Prepared for G1/8 Via pressure sensor With pressure gauge
Controller function		Output pressure constant With secondary venting
Mounting position		optional
Series		MS

Material seals		NBR
Pneumatic connection, port 3		G1/4
Pneumatic connection, port 1		G1/4 G1/2
Type of mounting		Front panel mounting In-line installation With accessories Either:
Ambient temperature		-10 °C ... 60 °C
Storage temperature		-10 °C ... 60 °C
Note on operating and pilot medium		Lubricated operation not possible
Explosion ambient temperature		-10°C <= Ta <= +60°C
Explosion ignition protection type for gas		Ex h IIC T6 Gb X
ATEX category gas		II 2G
CE mark (see declaration of conformity)		To EU Explosion Protection Directive (ATEX)
Standard nominal flow rate		800 l/min ... 5.000 l/min
Max. pressure hysteresis		0,02 bar
Operating pressure		1 bar ... 14 bar

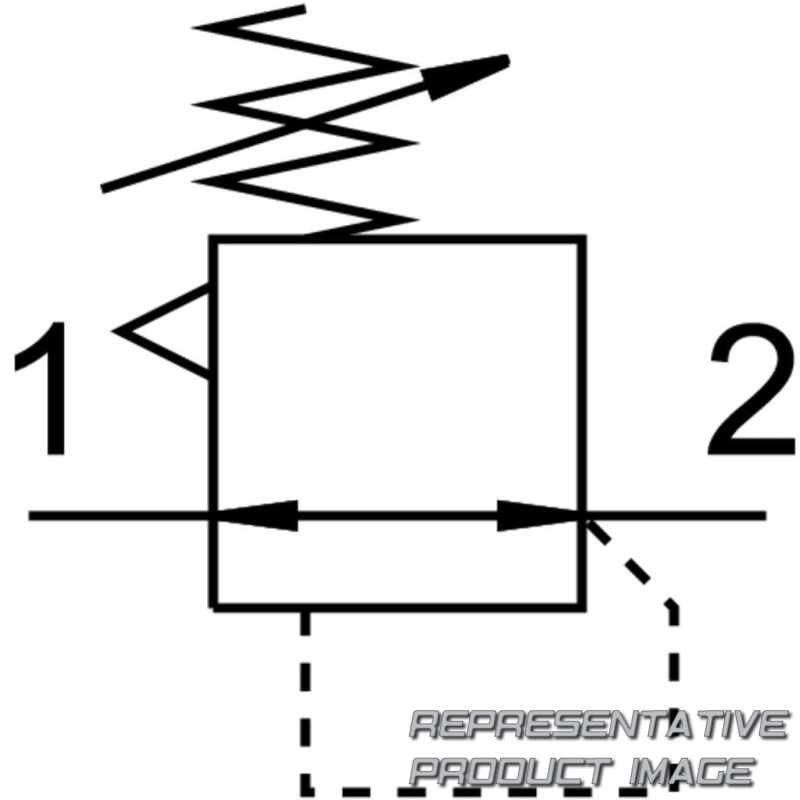

Symbol		00991540
Design		Piloted precision diaphragm control valve
Actuator lock		Rotary knob with detent
Size		6
