FESTO 194666 pressure regulator

Name: 194666 FESTO
Brand: FESTO
SKU: 664056-en-gbp
Price: 364.87 GBP
Availability: InStock

LRS-1-D-MAXI

£364.87

2 pcs. with 1 to 3 days delivery to United States

Specifications

Pneumatic connection	G1
Weight	888g

Material housing		Die-cast zinc
Material sub-base		Die-cast zinc
Pneumatic connection, port 2		G1
Type of mounting		Front panel mounting In-line installation With accessories
Ambient temperature		-10 °C ... 60 °C
Air purity class at output		Compressed air to ISO 8573-1:2010 [7:4:4] Inert gases
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4] Inert gases
Max. pressure hysteresis		0,4 bar
Operating pressure		0 bar ... 16 bar

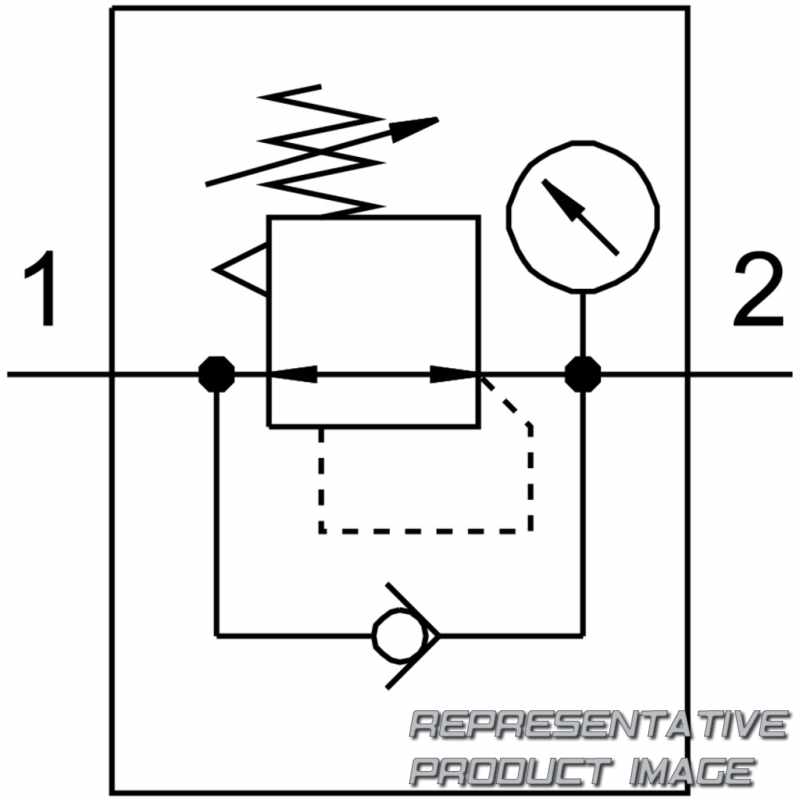

Symbol		00991558
Design		Piloted piston regulator
Actuator lock		Rotary knob with integrated lock
Size		Maxi

Material seals		NBR
Note on materials		RoHS-compliant
Pneumatic connection, port 1		G1
Product weight		888 g
Media temperature		-10 °C ... 60 °C
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Standard nominal flow rate		11.500 l/min
Pressure regulation range		0,5 bar ... 12 bar
Pressure gauge (ANALOG) or Pressure display (DIGITAL)		With pressure gauge
Controller function		Output pressure constant With secondary venting
Mounting position		optional
Series		D
