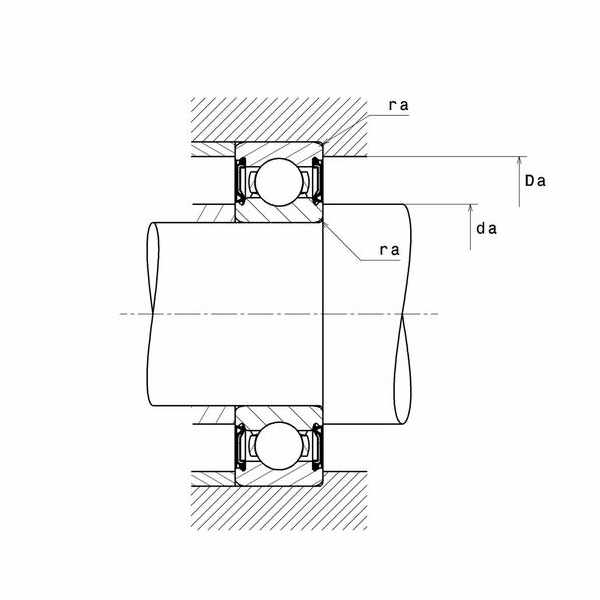

| ra max - Max shaft & housing fillet radius | 1,5 mm | ||
| da max - Max shoulder diameter IR | 73,2 mm | ||
| BSF - Characteristic rolling element frequency | 5,168 Hz | ||
| BPFI - Characteristic inner ring frequency | 5,934 Hz | ||
| Tmax - Max operating temperature | 120 °C | ||
| Nlim - Mechanical Limit Speed | 3900 tr/min | ||
| Cu - Fatigue limit load | 1,64 kN | ||
| C - Dynamic load | 55,3 kN | ||

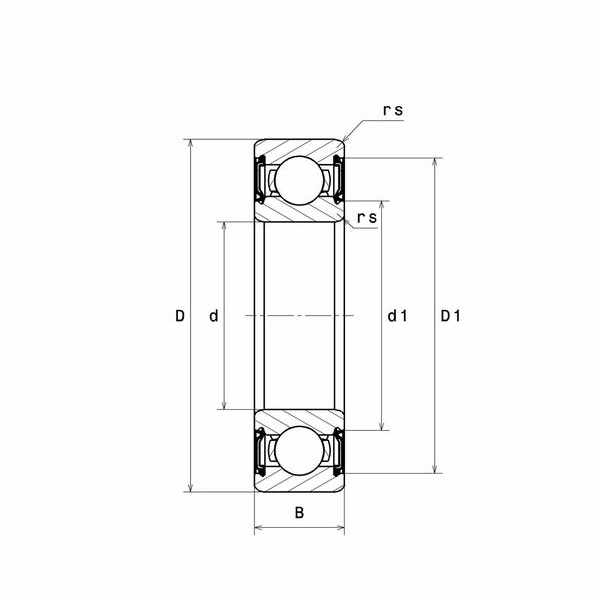

| rs - Min fillet radius | 1,5 mm | ||
| Brand | SNR |
| Da max - Max shoulder diameter OR | 102 mm | ||
| da min - Min shoulder diameter IR | 68 mm | ||
| FTF - Characteristic cage frequency | 0,407 Hz | ||
| BPFO - Characteristic outer ring frequency | 4,066 Hz | ||
| Tmin - Min operating temperature | -30 °C | ||
| f0 - Coefficient | 14.30 | ||
| C0 - Static load | 36 kN | ||
| Radial clearance class | C3 | ||
| D1 - Inner diameter outer ring | 97,6 mm |
