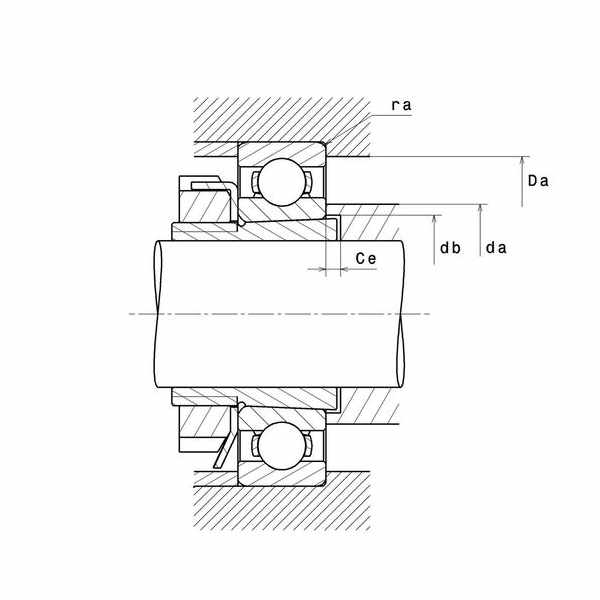

| ra max - Max shaft & housing fillet radius | 1,5 mm | ||
| Ce - Min length fro Sleeve | 6 mm | ||
| da max - Max shoulder diameter IR | 65,4 mm | ||
| BSF - Characteristic rolling element frequency | 5,24 Hz | ||
| BPFI - Characteristic inner ring frequency | 5,922 Hz | ||
| Tmax - Max operating temperature | 120 °C | ||
| Nlim - Mechanical Limit Speed | 11000 tr/min | ||
| f0 - Coefficient | 14.30 | ||
| C0 - Static load | 29,3 kN | ||
| Radial clearance class | CN | ||

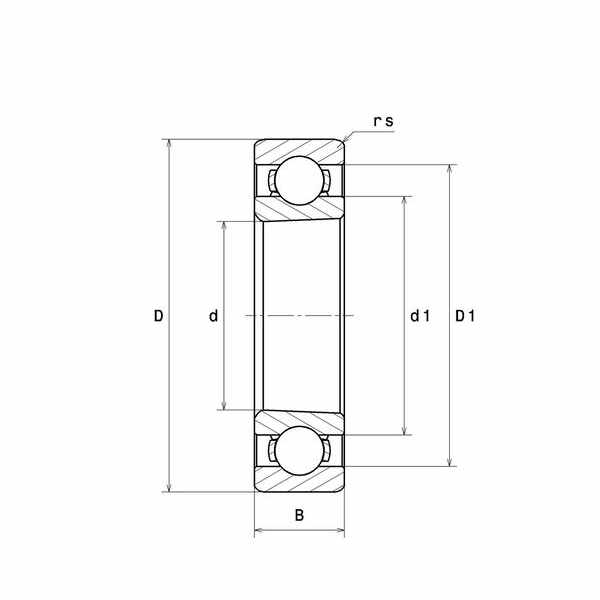

| rs - Min fillet radius | 1,5 mm | ||
| Brand | SNR |
| Da max - Max shoulder diameter OR | 92 mm | ||
| db - Min diameter for Sleeve | 60 mm | ||
| da min - Min shoulder diameter IR | 63 mm | ||
| FTF - Characteristic cage frequency | 0,408 Hz | ||
| BPFO - Characteristic outer ring frequency | 4,078 Hz | ||
| Tmin - Min operating temperature | -40 °C | ||
| Nref - Reference thermal speed | 7500 tr/min | ||
| Cu - Fatigue limit load | 1,33 kN | ||
| C - Dynamic load | 45,7 kN | ||
| Associated sleeve reference | H211 | ||
| D1 - Inner diameter outer ring | 90,9 mm |
