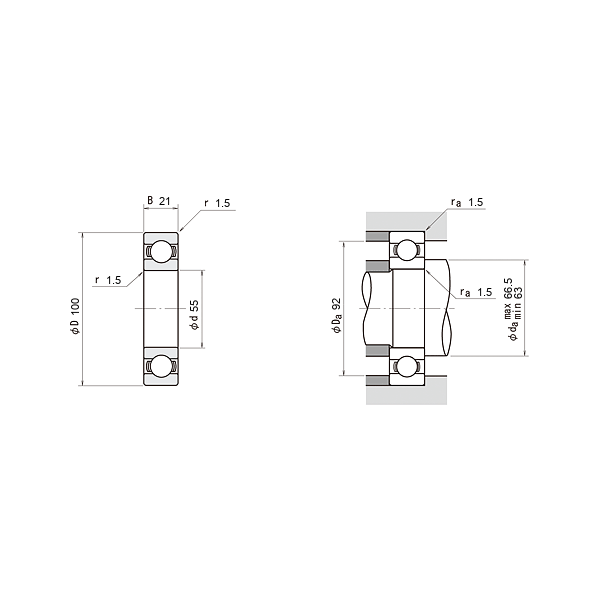

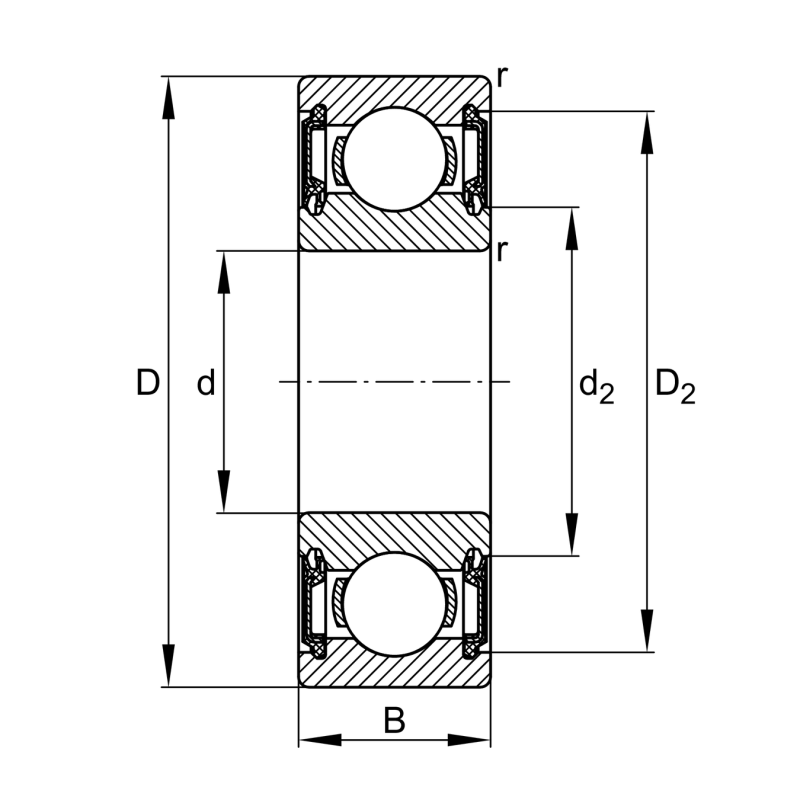

| Bore diameter | d | 55 | mm |
| Width | B | 21 | mm |
| Basic static load rating, radial | C0r | 26,540 | |
| Limiting speed | nG | 3,900 |
| Outside diameter | D | 100 | mm |
| Basic dynamic load rating, radial | Cr | 39,070 | |
| Fatigue load limit, radial | Cur | 1,580 |

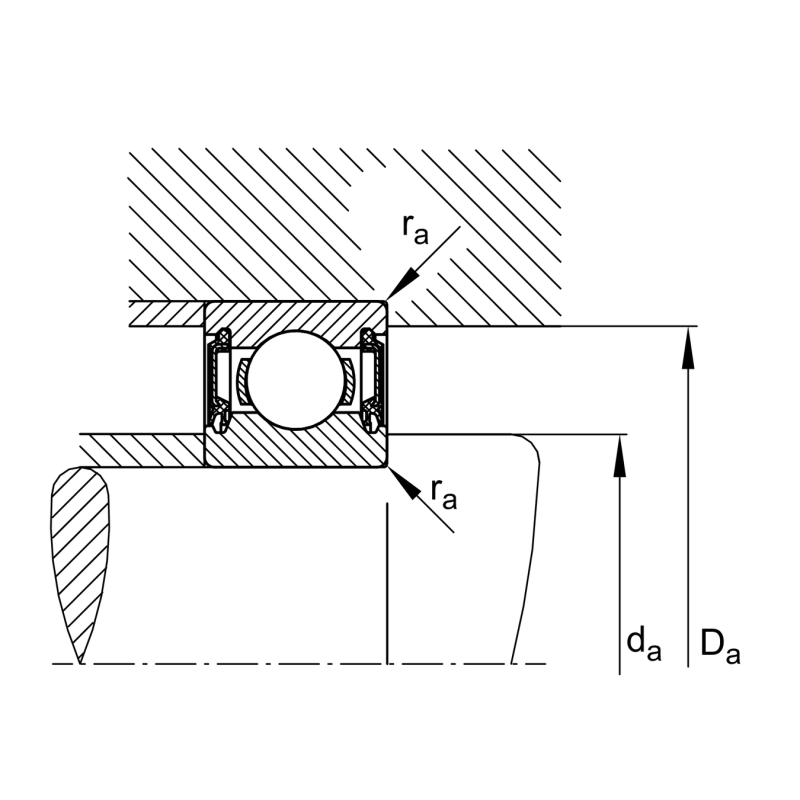

| Minimum diameter shaft shoulder | da min | 64 | mm |
| Maximum fillet radius | ra max | 1.50 | mm |
| Maximum diameter of housing shoulder | Da max | 91 | mm |
| Minimum chamfer dimension | rmin | 1.50 | mm |
| Caliber diameter inner ring | d2 | 66.40 | mm |
| Caliber diameter outer ring | D2 | 88.40 | mm |
