AVENTICS 5801500000

Name: 5801500000 AVENTICS
Brand: AVENTICS
SKU: 815199-en-gbp
Price: 43.64 GBP
Availability: InStock

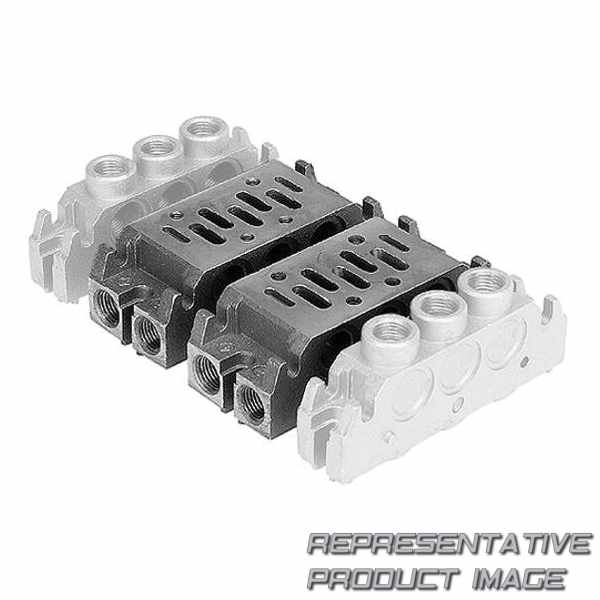

ISO1, G1/4 SIDEWAY

£43.64

available with 3 to 7 days delivery to United States

Specifications

max. pressure	16 bar
Seal	acrylonitrile butadiene rubber

Weight	230g

seal material		acrylonitrile butadiene rubber
Weight		0.23 kg
Medium		compressed air
min. medium temperature		-20 °c
min. ambient temperature		-20 °c
working pressure min.		-1 bar
frame size		iso 1
direction of pneumatic port (14)		down
exhaust type		ports separated
direction of pneumatic port (2,4)		both directions possible
Type		base plate

Material base plate		die-cast aluminum
Max. number of valve positions		1
max. medium temperature		70 °c
max. ambient temperature		70 °c
working pressure max		16 bar
Standards		iso 5599-1
compressed air connection 14		g 1/8
exhaust (3,5)		uncollected exhaust
compressed air connection 2 / 4		g 1/4
compressed air connection 1		g 1/4
