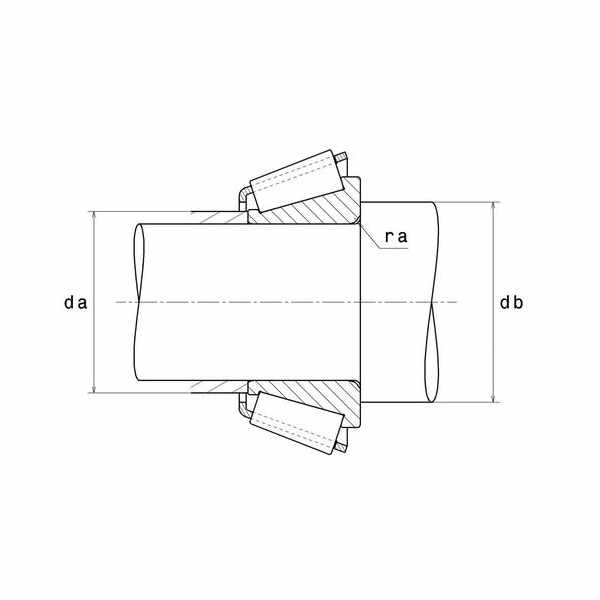

| ra max - Max fillet radius | 3,5 mm | ||
| da max - Max shoulder diameter IR | 150 mm | ||
| FTF - Characteristic cage frequency | 0 Hz | ||
| BPFO - Characteristic outer ring frequency | 0 Hz | ||
| Y0 - Static axial load coefficient | 0.78 | ||
| A2 - Rating life coefficient | 1 | ||
| C - Dynamic load | 495 kN |
| db min - Min IR shoulder diameter | 156 mm | ||
| BSF - Characteristic rolling element frequency | 0 Hz | ||
| BPFI - Characteristic inner ring frequency | 0 Hz | ||
| Y2 - Upper axial load coefficient | 1.43 | ||
| e - Coefficient | 0.42 | ||
| C0 - Static load | 735 kN | ||
| Brand | NTN |
