| hose cover type | standard | ||
| media | hydraulic fluids, air, petroleum & water-glycol based fluids, lubricating oils, fuels (check fuel type with our catalogue chart)., coolants i.e. glycol, lubricants, industrial air, mineral hydraulic oil, water | ||
| division | polymer hose division europe | ||
| Application | demanding medium pressure hydraulic applications | ||

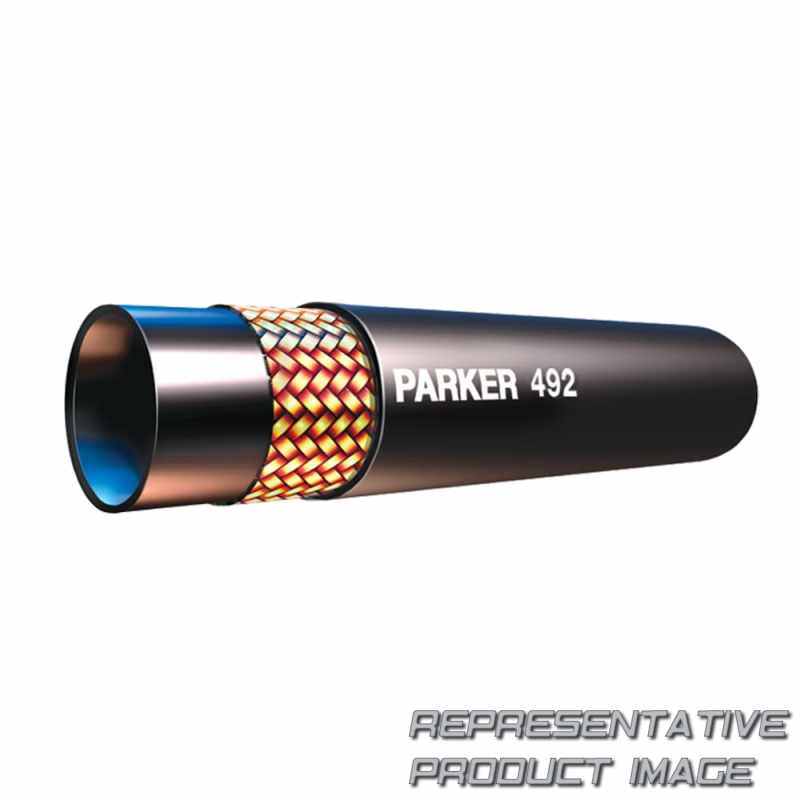

| product type | hydraulic hose | ||
| maximum operating pressure | 2175 psi, 15 mpa, 150 bar | ||
| hose outside diameter | 26 mm, 1.024 inch | ||
| design factor | 4:1 | ||
| compatible fitting | 46 series | ||
| minimum operating temperature | -40 °c | ||
| materials of construction | rubber | ||
| hose inner tube material | nitrile nbr | ||
| Weight | 0.56 kg/m, 0.37 lb/ft |
| hose i.d. (size) | -12 | ||
| Brand | parker | ||
| industry | general industrial, off-road machinery | ||
| technology | fluid & gas handling | ||
| product style | elite no-skive compact | ||
| hose inside diameter | 19.1 mm, 3/4 inch | ||
| minimum bend radius | 180 mm, 7.087 inch | ||
| cover color | black | ||
| maximum operating temperature | 100 °c (water: 85 , air: 70), 212 °f (water: 185, air: 158) | ||
| specifications met | en 857 1sc, iso 11237 type 1sc, en 857 1sc - iso 11237 type 1sc | ||
| cover material | synthetic rubber | ||
| hose reinforcement material | 1 high-tensile steel wire braid |
