BCH1-12 Parker Hannifin

PARKER BCH1-12

Name: BCH1-12 PARKER
Brand: PARKER
SKU: 573816-en-gbp
Price: 13.82 GBP
Availability: SoldOut

£13.82 /m ~~£27.64~~ /m -50%

Limited stock only available on quotation

Specifications

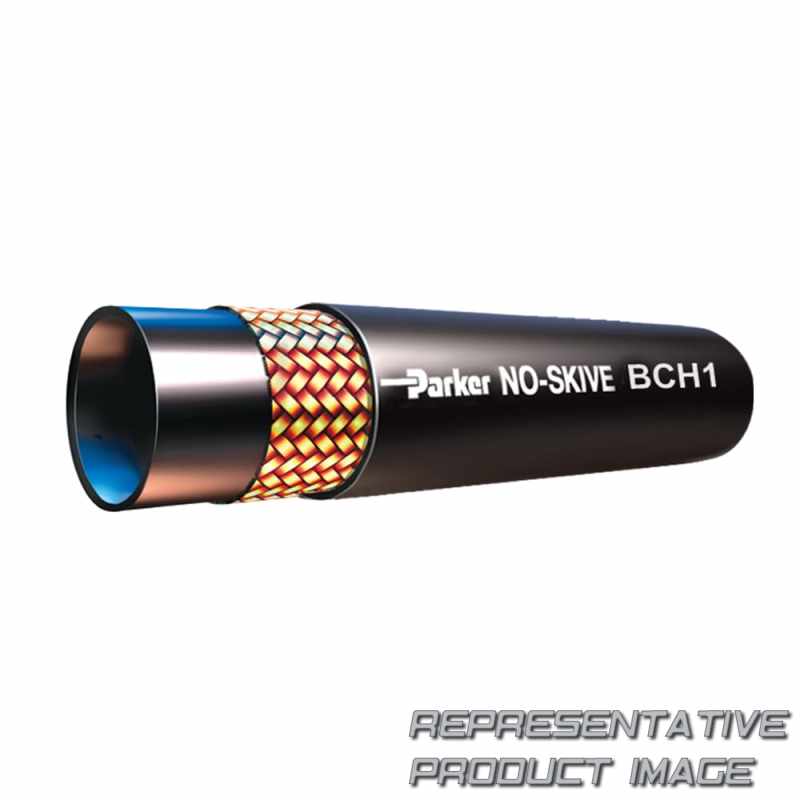

Parker Parkrimp No-Skive Hydraulic Hose BCH1 for demanding medium pressure hydraulic applications in all markets up to a working pressure of max. 22.5 Mpa. The hose range is compatible with No-Skive fittings series 46.

max. pressure	1520 psi, 10.5 mpa, 105 bar

Weight	560g

Technical data

burst pressure (mpa)		42
media		hydraulic fluids, petroleum & water-glycol based fluids, lubricating oils, air & water, fuels (check fuel type with our catalogue chart)., coolants i.e. glycol, industrial air, lubricants, water, mineral hydraulic oil
Brand		parker
division		polymer hose division europe
Application		demanding medium pressure hydraulic applications
product type		hydraulic hose
maximum operating pressure		1520 psi, 10.5 mpa, 105 bar
hose outside diameter		26 mm, 1.024 inch
design factor		4:1
compatible fitting		46 series
materials of construction		rubber
hose inner tube material		nitrile nbr
Weight		0.56 kg/m, 0.38 lb/ft

hose i.d. (size)		-12
minimum operating temperature		-40 °f, -40 °c
maximum operating temperature		212 °f (water: 185, air: 158), 100 °c (water: 85 , air: 70)
industry		off-road machinery
technology		fluid & gas handling
product style		no-skive
hose inside diameter		19.1 mm, 3/4 inch
minimum bend radius		180 mm, 7.087 inch
cover color		black
specifications met		en 857 1sc, iso 11237 type 1sc, en 857 - 1sc - iso 11237 type 1sc
cover material		synthetic rubber
hose reinforcement material		1 high-tensile steel wire braid
