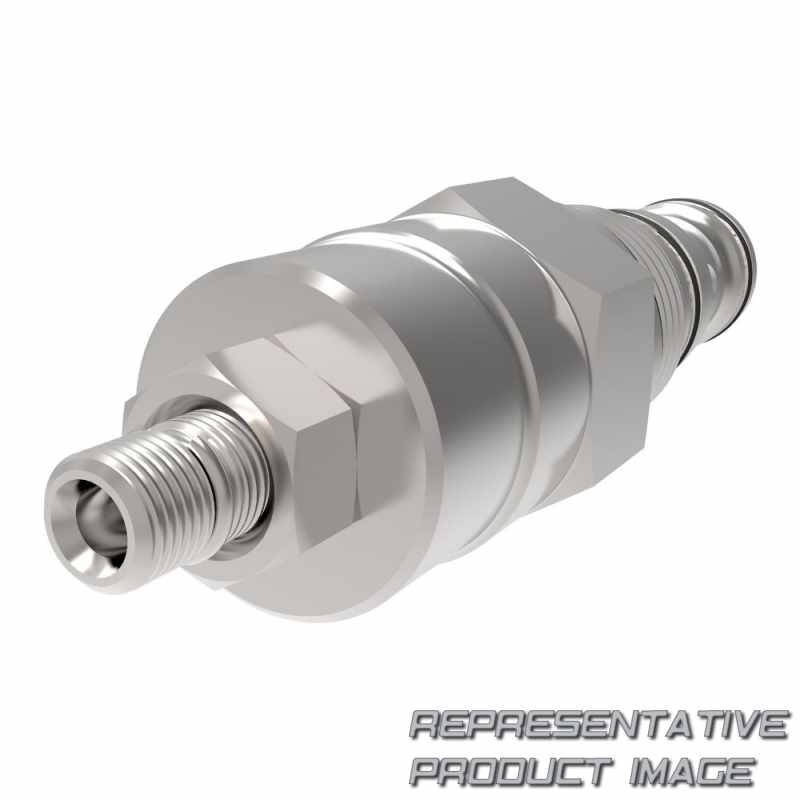

| screw-in cartridge valves | 1ce30; danfoss screw-in cartridge valve; overcenter; standard | ||
| Adjustment | -f : screw adjustment | ||
| pressure range | -20 : 70-210 bar (2.5;1, 5;1) ;100-210 bar (10;1); std set - 100 bar | ||
| pilot ratio | 5 : 5;1 | ||
| special feature | no special features |
| Series | 1ce30 : over center valve -pilot assisted relief with check valve-30 l/min - catridge only | ||
| Port size | cartridge only | ||
| Seal | s : nitrile (for use with most industrial hydraulic oils) | ||
| body material | none | ||
| special pressure setting | * : special pressure setting in bar |
