| Part Number | 3115286 | ||
| Design | khb | ||
| connection/flange designation | g | ||
| housing material, ball valve | steel | ||
| fixing holes | without fixing holes | ||
| switch position monitoring | without switch pos. monitoring | ||
| approval/test certificate | no approval | ||
| actuation | hand lever | ||
| design of lever | without | ||
| nominal pressure | 7,250 |

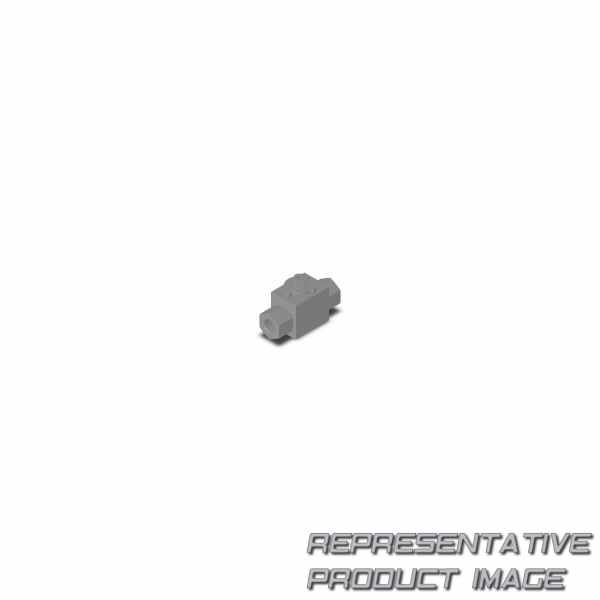

| object designation | khb-g1/4-1112-09x-a-sw09 | ||
| Type of connection | female thread | ||
| Standard | din iso 228 | ||
| material code | steel-steel-pom-nbr | ||
| lock | without lock | ||
| combination | no bv combination | ||
| Nominal size DN | 6 m | ||
| surface protection | zinc-plated | ||
| wrench size | sw09 |
