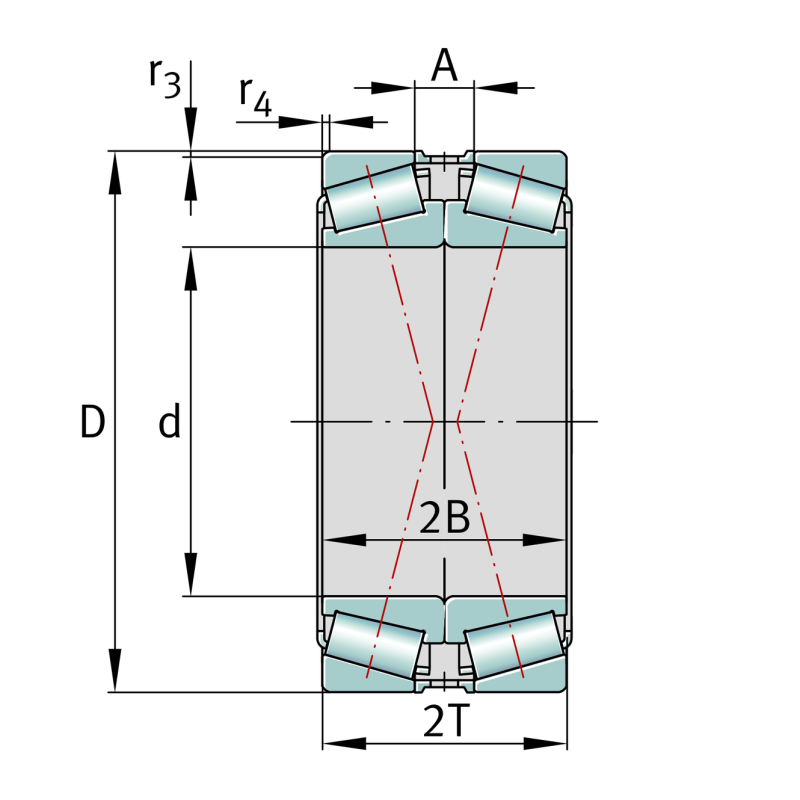

| Minimum chamfer dimension of outer ring back face | r3, 4 min | 2.50 | mm |
| Width of spacer | A | 19 | mm |
| Bore diameter | d | 120 | mm |
| Inner ring total width | 2B | 80 | mm |
| Basic dynamic load rating, radial | Cr | 670,000 | |
| Fatigue load limit, radial | Cur | 127,000 | |
| Thermal speed rating | nϑr | 2,110 |
| Outside diameter | D | 215 | mm |
| Outer ring total width | 2T | 87 | mm |
| Basic static load rating, radial | C0r | 890,000 | |
| Limiting speed | nG | 3,650 |

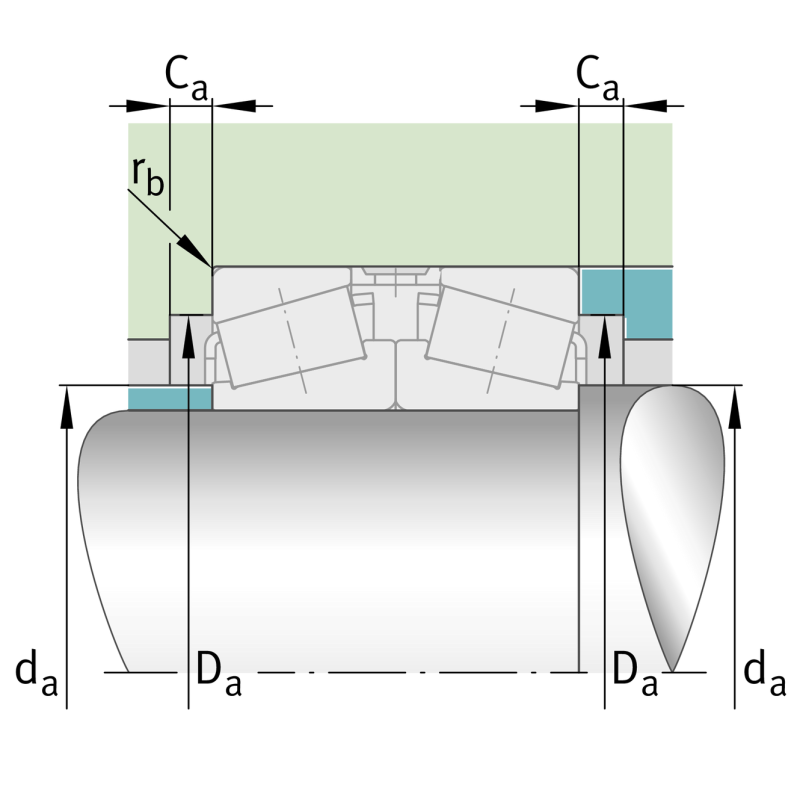

| Maximum diameter of shaft shoulder | da max | 140 | mm |
| Maximum diameter of housing shoulder | Da max | 203 | mm |
| Maximum fillet radius of housing | rb max | 2.50 | mm |
| Minimum diameter of housing shoulder | Da min | 187 | mm |
| Minimum axial space | Ca min | 6 | mm |
| Manufacturer | Part Number |
|---|---|
| SKF | 30224 J2/DF (SKF) |
