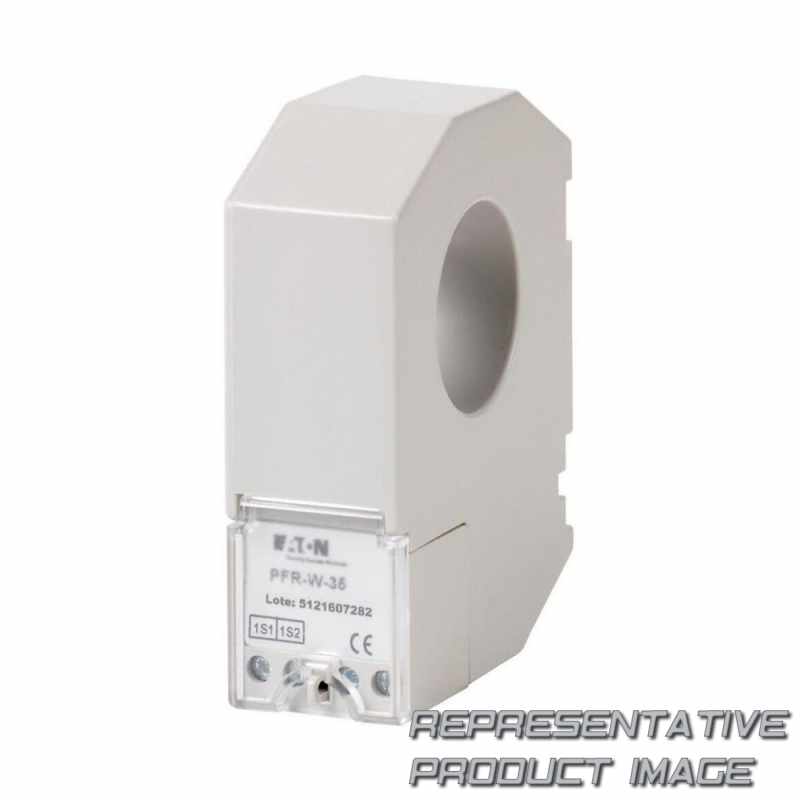

285602 Eaton

EATON 285602

Name: 285602 EATON
Brand: EATON
SKU: 801816-en-gbp
Price: 175.62 GBP
Availability: InStock

pfr-w-105

£175.62 ~~£219.52~~ -19%

1 pcs. with 1 to 3 days delivery to United States

Specifications

Mounting Position	incl. fixing clip for din-rail mounting
Width	172 mm

Weight	402g

Technical data

10.3 degree of protection of assemblies		does not apply, since the entire switchgear needs to be evaluated.
10.9.4 testing of enclosures made of insulating material		is the panel builder's responsibility.
10.13 mechanical function		the device meets the requirements, provided the information in the instruction leaflet (il) is observed.
rated operating voltage (ue) - max		0 v
10.5 protection against electric shock		does not apply, since the entire switchgear needs to be evaluated.
10.2.4 resistance to ultra-violet (uv) radiation		meets the product standard's requirements.
10.2.2 corrosion resistance		meets the product standard's requirements.
10.9.3 impulse withstand voltage		is the panel builder's responsibility.
10.10 temperature rise		the panel builder is responsible for the temperature rise calculation. eaton will provide heat dissipation data for the devices.
10.7 internal electrical circuits and connections		is the panel builder's responsibility.
special features		in combination with pfr residual current relay not ul/csa approved
voltage rating		690 v ac 50/60 hz
10.2.3.3 resist. of insul. mat. to abnormal heat/fire by internal elect. effects		meets the product standard's requirements.
10.2.3.2 verification of resistance of insulating materials to normal heat		meets the product standard's requirements.
10.2.3.1 verification of thermal stability of enclosures		meets the product standard's requirements.
10.2.5 lifting		does not apply, since the entire switchgear needs to be evaluated.
mounting method		incl. fixing clip for din-rail mounting
10.4 clearances and creepage distances		meets the product standard's requirements.
power on-delay time - min		0 ms
10.11 short-circuit rating		is the panel builder's responsibility. the specifications for the switchgear must be observed.
compliances		rohs conform
product width		172 mm
product length/depth		190 mm

rated fault current - min		0 a
10.2.6 mechanical impact		does not apply, since the entire switchgear needs to be evaluated.
voltage rating of relay contact		690 v (50/60 hz)
rated control supply voltage (us) at ac, 60 hz - max		0 v
10.2.7 inscriptions		meets the product standard's requirements.
10.6 incorporation of switching devices and components		does not apply, since the entire switchgear needs to be evaluated.
Type		accessory earth-fault releases, transformer voltage release
rated control supply voltage (us) at dc - max		0 v
power on-delay time - max		0 ms
rated control supply voltage (us) at ac, 60 hz - min		0 v
10.9.2 power-frequency electric strength		is the panel builder's responsibility.
10.8 connections for external conductors		is the panel builder's responsibility.
rated control supply voltage (us) at ac, 50 hz - max		0 v
rated control supply voltage (us) at dc - min		0 v
rated fault current - max		0 a
transformer opening diameter		105 mm
10.12 electromagnetic compatibility		is the panel builder's responsibility. the specifications for the switchgear must be observed.
rated control supply voltage (us) at ac, 50 hz - min		0 v
frame		nzm1/2/3/4
certifications		iec
Product weight		.402 kg
product height		45 mm
ean		4015082856021
