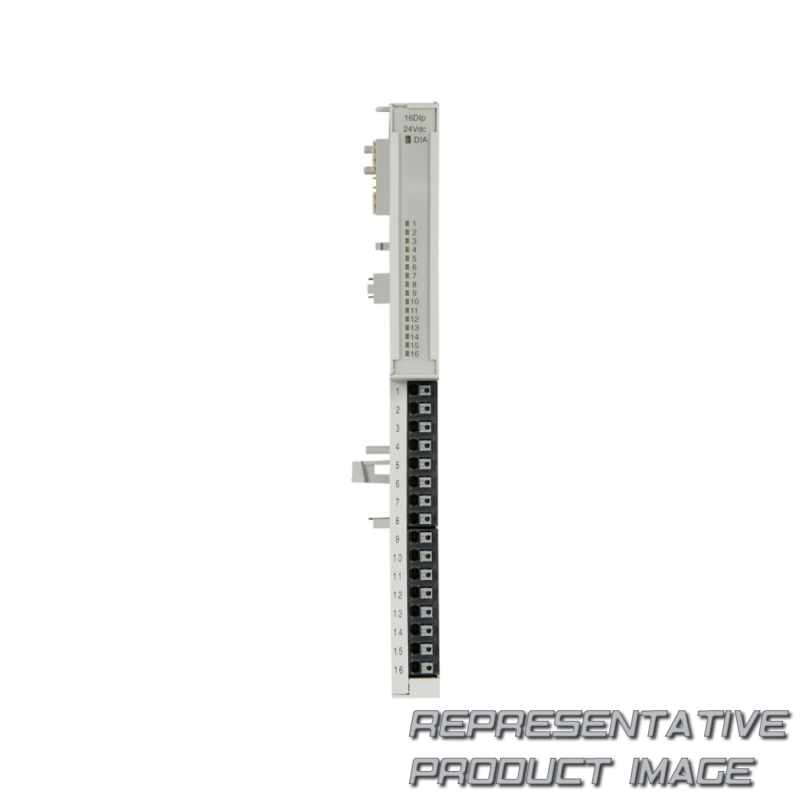

140040 Eaton

EATON 140040

Name: 140040 EATON
Brand: EATON
SKU: 801895-en-gbp
Price: 182.93 GBP
Availability: InStock

xne-16di-24vdc-p

£182.93

1 pcs. with 1 to 3 days delivery to United States

Specifications

Mounting Position	rail mounting possible
Width	13 mm

Weight	62g

Technical data

rated insulation voltage (ui)		500 v
explosion safety category for dust		none
10.10 temperature rise		the panel builder is responsible for the temperature rise calculation. eaton will provide heat dissipation data for the devices.
10.7 internal electrical circuits and connections		is the panel builder's responsibility.
relative humidity		5 - 95 % (indoor, level rh-2, non-condensing for storage at 45°c)
voltage rating		24 vdc
connection type		push-in spring-cage terminals, connection design in top direction
10.2.3.2 verification of resistance of insulating materials to normal heat		meets the product standard's requirements.
equipment heat dissipation, current-dependent pvid		2.5 w
drop and topple		according to iec 60068-2-31, free fall according to iec 60068-2-32
heat dissipation per pole, current-dependent pvid		0 w
10.13 mechanical function		the device meets the requirements, provided the information in the instruction leaflet (il) is observed.
permitted voltage at output - min		0 v
voltage dips		according to en 61131-2 (voltage fluctuations/voltage dips)
number of inputs (digital)		16
static heat dissipation, non-current-dependent pvs		2.5 w
permitted voltage at output - max		0 v
contact discharge		according to en 61100-4-2
stripping length (main cable)		8 mm
10.12 electromagnetic compatibility		is the panel builder's responsibility.
Shock resistance		continuous according to iec/en 60068-2-29 mechanical, according to iec/en 60068-2-27
Environmental conditions		harmful gasses - h2s: 1 ppm (relative humidity < 75%, no condensation) harmful gasses - so2: 10 ppm (relative humidity < 75%, no condensation)
10.2.4 resistance to ultra-violet (uv) radiation		meets the product standard's requirements.
data transmission type		none
Type		i/o module
sil (iec 61508)		none
ambient storage temperature - max		85 °c
10.9.2 power-frequency electric strength		is the panel builder's responsibility.
output current		0 a
heat dissipation capacity pdiss		0 w
potential isolation		through optocoupler: yes
voltage type		dc
10.3 degree of protection of assemblies		meets the product standard's requirements.
10.6 incorporation of switching devices and components		does not apply, since the entire switchgear needs to be evaluated.
ambient operating temperature - min		0 °c
Features		fieldbus connection over separate bus coupler possible
ambient operating temperature - max		55 °c
system accessory		yes
surge rating		according to iec/en 61000-4-5 level 4
10.2.3.1 verification of thermal stability of enclosures		meets the product standard's requirements.
gauge pin		a1 (according to iec/en 60947-1)
10.4 clearances and creepage distances		meets the product standard's requirements.
10.11 short-circuit rating		is the panel builder's responsibility.
radiated rfi		iec/en 61100-4-6
certifications		ul listed ce iec/en 61000-6-4 ul category control no.: nraq, nraq7 ul file no.: e205091 ul recognized iec/en 6113-2 rated data for terminations according to iec/en 60947-7-1 csa-c22.2 no. 142 iec/en 61000-6-2 iec/en 61131-2 certified by ul for use in canada csa class no.: 2252-01, 2252-81 culus ul report applies to both us and canada ul 508
warranty		eaton selling policy 25-000, one (1) year from the date of installation of the product or eighteen (18) months from the date of shipment of the product, whichever occurs first.
product width		13 mm
product length/depth		161.5 mm

burst impulse		according to iec/en 61000-4-4
time delay at signal exchange - min		.1 ms
supply voltage at ac, 50 hz - max		0 vac
supply voltage at ac, 50 hz - min		0 vac
number of hw-interfaces (other)		1
time delay at signal exchange - max		.3 ms
10.2.3.3 resist. of insul. mat. to abnormal heat/fire by internal elect. effects		meets the product standard's requirements.
air discharge		according to en 61100-4-2
supply voltage at ac, 60 hz - min		0 vac
safety performance level (en iso 13849-1)		none
10.9.4 testing of enclosures made of insulating material		is the panel builder's responsibility.
electric connection type		plug-in connection
supply voltage at dc - max		30 vdc
10.5 protection against electric shock		does not apply, since the entire switchgear needs to be evaluated.
10.9.3 impulse withstand voltage		is the panel builder's responsibility.
emitted interference		30 - 230 mhz (radiated, high frequency, according to en 55016-2-3) 230 - 1000 mhz (radiated, high frequency, according to en 55016-2-3)
supply voltage at dc - min		18 vdc
10.8 connections for external conductors		is the panel builder's responsibility.
10.2.5 lifting		does not apply, since the entire switchgear needs to be evaluated.
Input current		-1 - 1.5 ma (digital inputs, low level) 2 - 5 ma (digital inputs, high level)
Current consumption		3 ma, from supply terminal 15 ma, from module bus, analog input modules
10.2.7 inscriptions		meets the product standard's requirements.
input delay		300 µs (falling edge) 150 µs (rising edge)
10.2.2 corrosion resistance		meets the product standard's requirements.
functions		positive switching
Input voltage		-5 - 5 v (digital inputs, low level) 24 v dc (digital inputs) 11 - 30 v (digital inputs, high level)
Degree of protection		ip20
Protocol		other bus systems
electromagnetic fields		according to iec en 61100-4-2
terminal capacity		0.25 - 1.5 mm², flexible without ferrule, h07v-k 0.25 - 0.75 mm², with ferrules with plastic collar according to din 46228-1 (ferrules crimped gas-tight) 0.25 - 1.5 mm², solid, h07v-u 0.25 - 1.5 mm², with ferrules without plastic collar according to din 46228-1 (ferrules crimped gas-tight)
product category		xne slice module
permitted voltage at input - max		30 v
10.2.6 mechanical impact		does not apply, since the entire switchgear needs to be evaluated.
supply voltage at ac, 60 hz - max		0 vac
permitted voltage at input - min		0 v
input current at signal 1		2 ma
explosion safety category for gas		none
Vibration resistance		according to iec/en 60068-2-6
ambient storage temperature - min		-25 °c
number of channels		16
mounting method		rail mounting possible
rated operational voltage		24 v dc (supply terminal)
rated operational current for specified heat dissipation (in)		0 a
catalog notes		base modules without c-connection already built in
compliances		rohs compliant ce marked
Product weight		.062 kg
product height		74.5 mm
ean		7640130120525
